Vacuum Handling Components
VSH and VSH2 Vacuum Cups
Factory-crimped translucent silicone vacuum cups in VSH single-bellows and VSH2 double-bellows families.
Series
VSH / VSH2
Type
Single / Double bellows
Material
Silicone, translucent
Source
Catalog 297-298
Model, PN and application context confirmed during inquiry.
Overview
Understand the VSH / VSH2 product family
Factory-crimped translucent silicone vacuum cups in VSH single-bellows and VSH2 double-bellows families.
Selection approach
Choose VSH single-bellows or VSH2 double-bellows, then select size and confirm the applicable fitting or stem reference.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare VSH / VSH2 Models
Choose VSH single-bellows or VSH2 double-bellows, then select size and confirm the applicable fitting or stem reference.
| Model | PN | Family | Type | Size | Material | Status |
|---|---|---|---|---|---|---|
| VSH-S2 | 1.Y07282 | VSH | Single bellows | 2 mm | Silicone, translucent | Confirmed |
| VSH-S4 | 1.Y07283 | VSH | Single bellows | 4 mm | Silicone, translucent | Confirmed |
| VSH-S6 | 1.Y07284 | VSH | Single bellows | 6 mm | Silicone, translucent | Confirmed |
| VSH-S8 | 1.Y07285 | VSH | Single bellows | 8 mm | Silicone, translucent | Confirmed |
| VSH-S10 | 1.Y07286 | VSH | Single bellows | 10 mm | Silicone, translucent | Confirmed |
| VSH-S12 | 1.Y07287 | VSH | Single bellows | 12 mm | Silicone, translucent | Confirmed |
| VSH-S15 | 1.Y07288 | VSH | Single bellows | 15 mm | Silicone, translucent | Confirmed |
| VSH-S20 | 1.Y07289 | VSH | Single bellows | 20 mm | Silicone, translucent | Confirmed |
| VSH-S25 | 1.Y07290 | VSH | Single bellows | 25 mm | Silicone, translucent | Confirmed |
| VSH-S30 | 1.Y07291 | VSH | Single bellows | 30 mm | Silicone, translucent | Confirmed |
| VSH-M4 | 1.Y07292 | VSH | Single bellows | 4 mm | Silicone, translucent | Confirmed |
| VSH-M6 | 1.Y07293 | VSH | Single bellows | 6 mm | Silicone, translucent | Confirmed |
| VSH-M8 | 1.Y07294 | VSH | Single bellows | 8 mm | Silicone, translucent | Confirmed |
| VSH-M10 | 1.Y07295 | VSH | Single bellows | 10 mm | Silicone, translucent | Confirmed |
| VSH-M12 | 1.Y07296 | VSH | Single bellows | 12 mm | Silicone, translucent | Confirmed |
| VSH-M15 | 1.Y07297 | VSH | Single bellows | 15 mm | Silicone, translucent | Confirmed |
| VSH-M20 | 1.Y07298 | VSH | Single bellows | 20 mm | Silicone, translucent | Confirmed |
| VSH-M25 | 1.Y07299 | VSH | Single bellows | 25 mm | Silicone, translucent | Confirmed |
| VSH-M30 | 1.Y07300 | VSH | Single bellows | 30 mm | Silicone, translucent | Confirmed |
| VSH-M40 | 1.Y07301 | VSH | Single bellows | 40 mm | Silicone, translucent | Confirmed |
| VSH-M50 | 1.Y07302 | VSH | Single bellows | 50 mm | Silicone, translucent | Confirmed |
| VSH2-S4 | 1.Y07303 | VSH2 | Double bellows | 4 mm | Silicone, translucent | Confirmed |
| VSH2-S6 | 1.Y07304 | VSH2 | Double bellows | 6 mm | Silicone, translucent | Confirmed |
| VSH2-S8 | 1.Y07305 | VSH2 | Double bellows | 8 mm | Silicone, translucent | Confirmed |
| VSH2-S10 | 1.Y07306 | VSH2 | Double bellows | 10 mm | Silicone, translucent | Confirmed |
| VSH2-S12 | 1.Y07307 | VSH2 | Double bellows | 12 mm | Silicone, translucent | Confirmed |
| VSH2-S15 | 1.Y07308 | VSH2 | Double bellows | 15 mm | Silicone, translucent | Confirmed |
| VSH2-S20 | 1.Y07309 | VSH2 | Double bellows | 20 mm | Silicone, translucent | Confirmed |
| VSH2-S25 | 1.Y07310 | VSH2 | Double bellows | 25 mm | Silicone, translucent | Confirmed |
| VSH2-S30 | 1.Y07311 | VSH2 | Double bellows | 30 mm | Silicone, translucent | Confirmed |
| VSH2-M6 | 1.Y07312 | VSH2 | Double bellows | 6 mm | Silicone, translucent | Confirmed |
| VSH2-M8 | 1.Y07313 | VSH2 | Double bellows | 8 mm | Silicone, translucent | Confirmed |
| VSH2-M10 | 1.Y07314 | VSH2 | Double bellows | 10 mm | Silicone, translucent | Confirmed |
| VSH2-M12 | 1.Y07315 | VSH2 | Double bellows | 12 mm | Silicone, translucent | Confirmed |
| VSH2-M15 | 1.Y07316 | VSH2 | Double bellows | 15 mm | Silicone, translucent | Confirmed |
| VSH2-M20 | 1.Y07317 | VSH2 | Double bellows | 20 mm | Silicone, translucent | Confirmed |
| VSH2-M25 | 1.Y07318 | VSH2 | Double bellows | 25 mm | Silicone, translucent | Confirmed |
| VSH2-M30 | 1.Y07319 | VSH2 | Double bellows | 30 mm | Silicone, translucent | Confirmed |
| VSH2-M40 | 1.Y07320 | VSH2 | Double bellows | 40 mm | Silicone, translucent | Confirmed |
| VSH2-M50 | 1.Y07321 | VSH2 | Double bellows | 50 mm | Silicone, translucent | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Review the engineering sheets for the selected model. Confirm dimensions, connections and the applicable configuration before quotation.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 297-298: VSH*, VSH2*

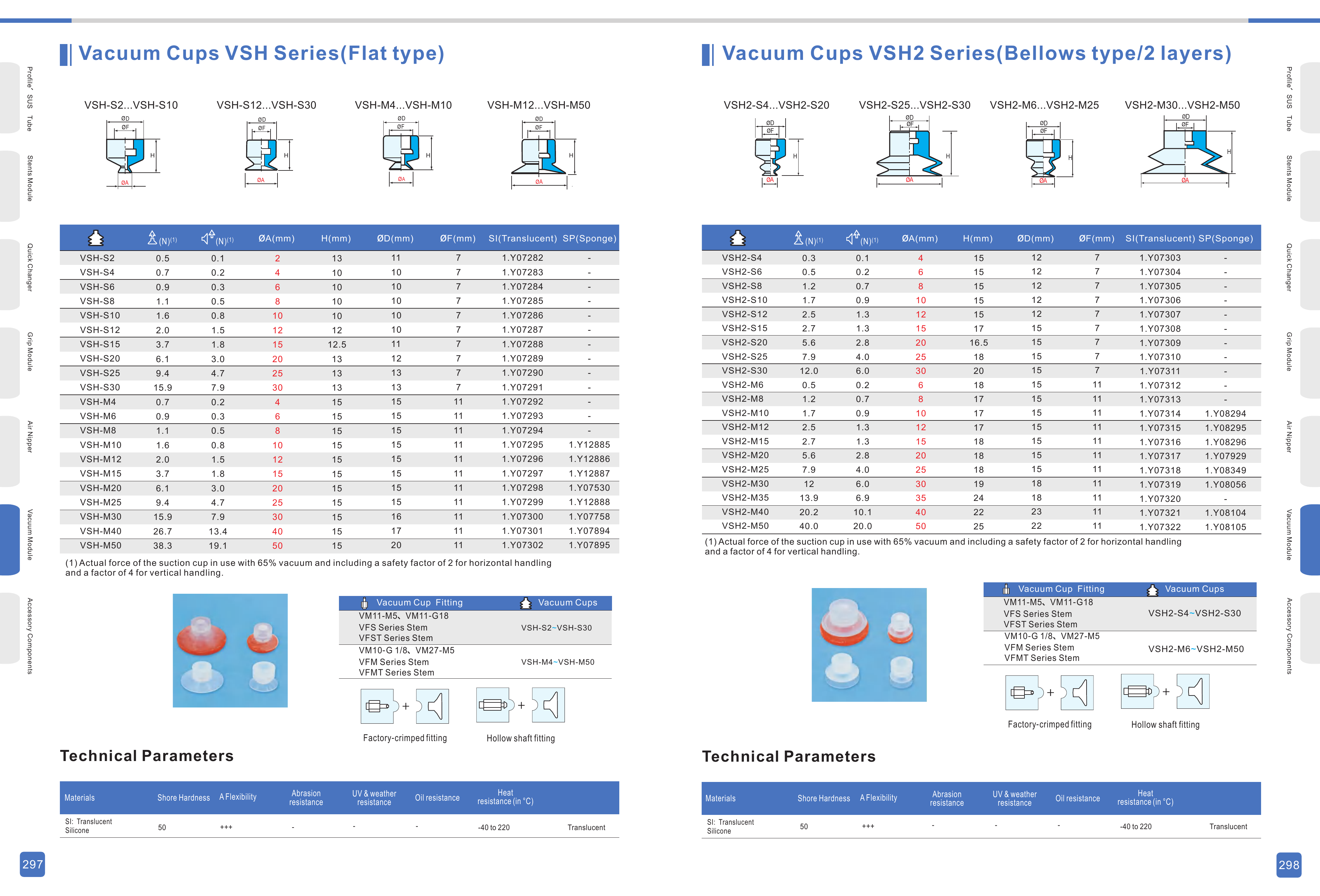

Original Technical Sheet - VSH / VSH2
Model PNs, dimensions, recommended loads and fitting references · Catalog pages 297-298
High-resolution web preview · Catalog pages 297-298
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- This page intentionally covers only the mapped VSH and VSH2 families.
- VSH3 and SAF content from the next source spread is excluded.
- Confirm fitting or stem choice in the RFQ.
