Vacuum Handling Components

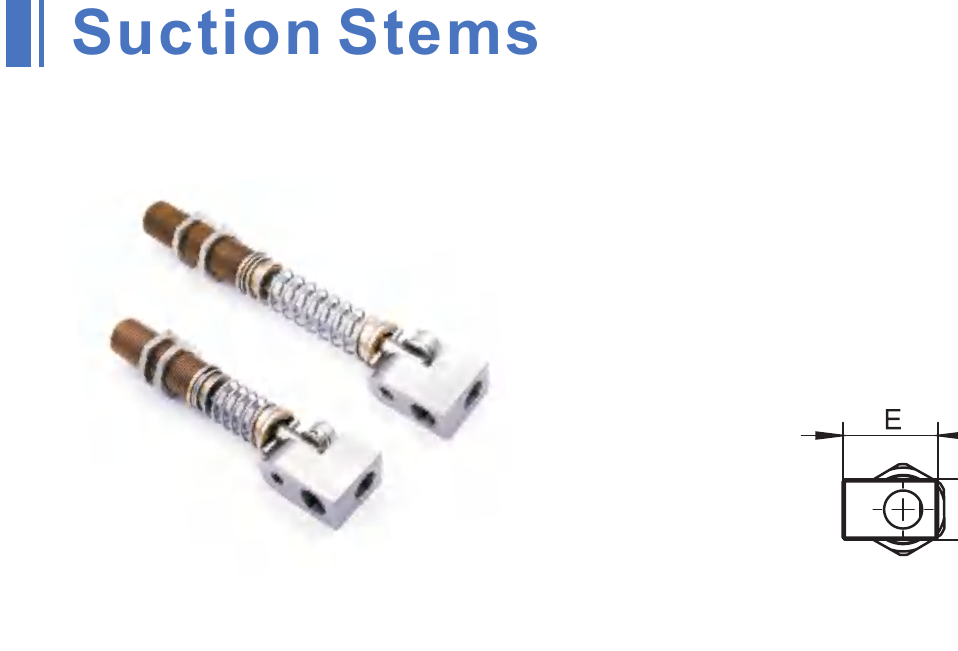

Vacuum Suction Stems
Spring-loaded and rigid vacuum suction stems for accommodating height variation and mounting vacuum cups in EOAT systems.
Families
VFRS / VFM / VFL / VFMT / VFH
Stroke
20-40 mm
Connections
M5-G3/8 family
Source
Catalog 321-322
Model, PN and application context confirmed during inquiry.
Overview
Understand the VFRS / VFM / VFL / VFMT / VFHT / VFH product family
Spring-loaded and rigid vacuum suction stems for accommodating height variation and mounting vacuum cups in EOAT systems.
Selection approach
Choose the stem family by installation and compliance requirement, then confirm stroke, mounting thread and vacuum connection.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare VFRS / VFM / VFL / VFMT / VFHT / VFH Models
Choose the stem family by installation and compliance requirement, then confirm stroke, mounting thread and vacuum connection.
| Model | PN | Stroke | Connection | Weight | Status |
|---|---|---|---|---|---|
| VFRS-20M10-M5 | 4.Y00026 | 20 mm | M10 / M5 | 27 g | Confirmed |
| VFRS-20M16-G18 | 4.Y00023 | 20 mm | M16 / G1/8 | 76 g | Confirmed |
| VFM-4014-G18 | 1.Y01452 | 40 mm | M14 / G1/8 | 48 g | Confirmed |
| VFM-2020-G14 | 1.Y01451 | 20 mm | M20 / G1/4 | 136 g | Confirmed |
| VFL-20M17-G18 | 1.Y01453 | 20 mm | M17 / G1/8 | 119 g | Confirmed |
| VFMT-20M14-G18 | 8.Y00319 | 20 mm | M14 / G1/8 | 97 g | Confirmed |
| VFMT-40M14-G18 | 8.Y00320 | 40 mm | M14 / G1/8 | 123 g | Confirmed |
| VFHT-30M20-G38F-G18M | 8.Y00409 | 30 mm | G3/8-F / G1/8-M | 260 g | Confirmed |
| VFH-30M20-G38F-G18M | 8.Y00410 | 30 mm | G3/8-F / G1/8-M | 235 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 321-322: VFRS*, VFM*, VFL*, VFMT*, VFHT*, VFH*

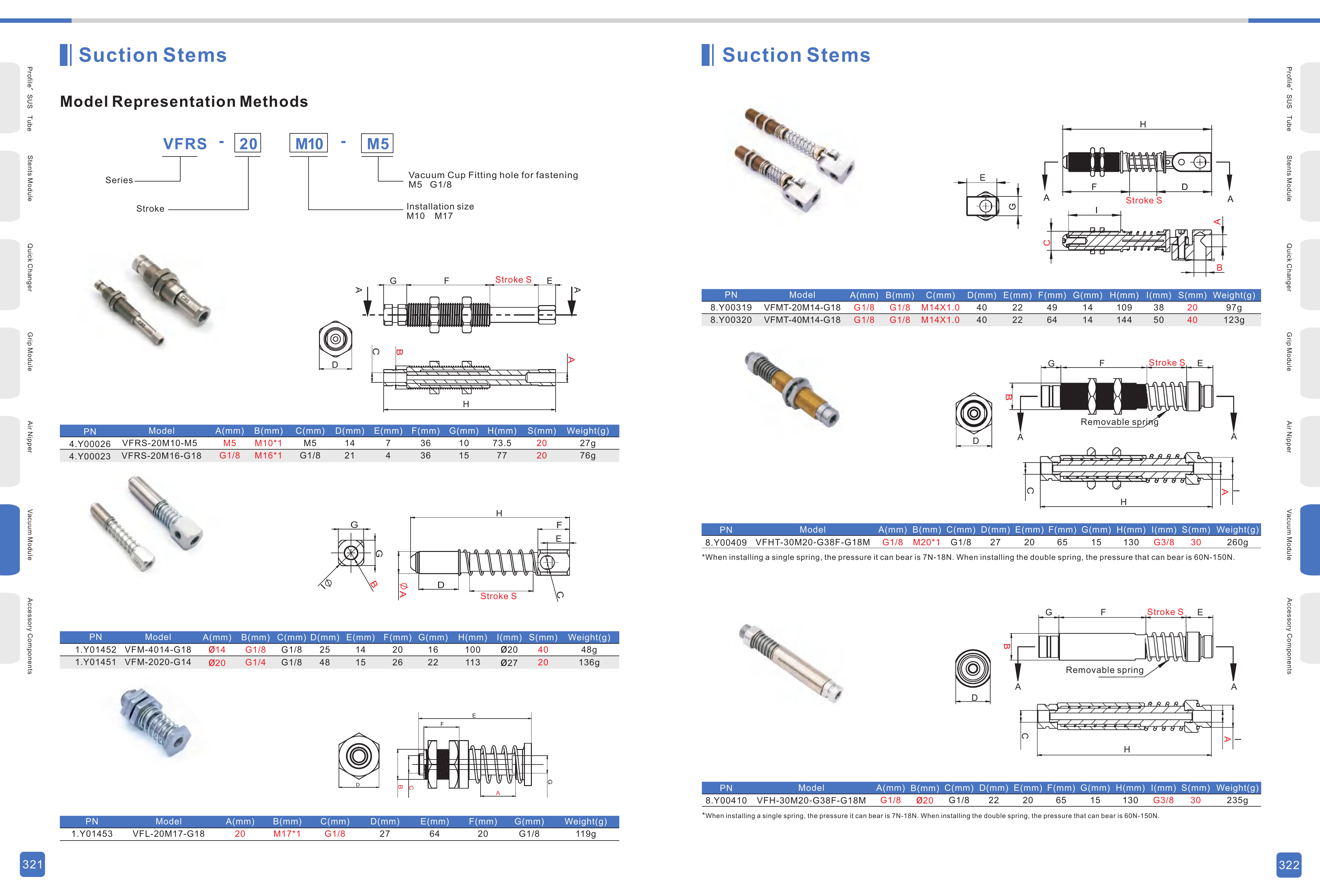

Original Technical Sheet - Vacuum Suction Stems
