Product features
- Single cup-side fitting function
- Complete source-confirmed VM fitting set
- Model-level PN and weight
- Technical drawings on fitting sheets
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
Vacuum Handling Components
Vacuum Cup Fittings
VM vacuum cup fittings for attaching cups to stems or vacuum lines using catalog-defined M3, M5, M8, G1/8 and G1/4 interfaces.
Frozen ID
PP-VC-01A
Product type
Vacuum cup fitting
Models
38 / 38 covered
Threads
M3 / M5 / M8 / G1/8 / G1/4
Model, PN and application context confirmed during inquiry.
Overview
Understand the VM Cup Fittings product family
VM vacuum cup fittings for attaching cups to stems or vacuum lines using catalog-defined M3, M5, M8, G1/8 and G1/4 interfaces.
Selection approach
Choose the fitting by cup interface and thread; use the connector page only when adapting between two independent thread interfaces.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare VM Cup Fittings Models
Choose the fitting by cup interface and thread; use the connector page only when adapting between two independent thread interfaces.
| Model | PN | Connection | Weight | Status |
|---|---|---|---|---|
| VM02-G18 | 7.Y00703 | G1/8 | 3.5 g | Confirmed |
| VM04-G14 | 7.Y00709 | G1/4 | 7.0 g | Confirmed |
| VM06-G14 | 7.Y00768 | G1/4 | 9.7 g | Confirmed |
| VM07-G18 | 7.Y00767 | G1/8 | 3.3 g | Confirmed |
| VM08-M8 | 1.Y05275 | M8 | 8.3 g | Confirmed |
| VM09-M5 | 1.Y05274 | M5 | 1.4 g | Confirmed |
| VM10-G18 | 7.Y00902 | G1/8 | 3.7 g | Confirmed |
| VM11-M5 | 1.Y05327 | M5 | 2.0 g | Confirmed |
| VM11-G18 | 1.Y12762 | G1/8 | 2.0 g | Confirmed |
| VM12-M5 | 7.Y00762 | M5 | 1.2 g | Confirmed |
| VM13-M5 | 7.Y00761 | M5 | 0.7 g | Confirmed |
| VM14-M5 | 7.Y00760 | M5 | 0.5 g | Confirmed |
| VM15-G18 | 7.Y00759 | G1/8 | 17.8 g | Confirmed |
| VM16-G18 | 7.Y00758 | G1/8 | 3.8 g | Confirmed |
| VM17-G18 | 7.Y00757 | G1/8 | 2.9 g | Confirmed |
| VM18-M5 | 1.Y05314 | M5 | 4.6 g | Confirmed |
| VM20-G14 | 4.Y00058 | G1/4 | 9.5 g | Confirmed |
| VM21-M5 | 1.Y01986 | M5 | 1.8 g | Confirmed |
| VM22-M5 | 1.Y05790 | M5 | 2.9 g | Confirmed |
| VM23-G18 | 7.Y00900 | G1/8 | 8.9 g | Confirmed |
| VM24-G18 | 7.Y00898 | G1/8 | 5.5 g | Confirmed |
| VM25-M3 | 7.Y00928 | M3 | 0.2 g | Confirmed |
| VM27-M5 | 1.Y01097 | M5 | 6.2 g | Confirmed |
| VM28-M8 | 7.Y00475 | M8 | 1.9 g | Confirmed |
| VM29-M5 | 7.Y01036 | M5 | 1.1 g | Confirmed |
| VM30-G18 | 7.Y01037 | G1/8 | 1.3 g | Confirmed |
| VM31-M5 | 7.Y01038 | M5 | 3.8 g | Confirmed |
| VM32-G18 | 7.Y01039 | G1/8 | 4.1 g | Confirmed |
| VM33-M5 | 7.Y01040 | M5 | 4.0 g | Confirmed |
| VM34-G18 | 7.Y01041 | G1/8 | 4.3 g | Confirmed |
| VM35-M5 | 7.Y01042 | M5 | 3.4 g | Confirmed |
| VM36-G18 | 7.Y01043 | G1/8 | 3.7 g | Confirmed |
| VM37-M5 | 7.Y01044 | M5 | 4.3 g | Confirmed |
| VM38-G18 | 7.Y01045 | G1/8 | 4.7 g | Confirmed |
| VM39-M5 | 7.Y01046 | M5 | 2.6 g | Confirmed |
| VM40-G18 | 7.Y01047 | G1/8 | 4.0 g | Confirmed |
| VM41-G14 | 7.Y01048 | G1/4 | 14 g | Confirmed |
| VM10-G18-F | 7.Y02013 | G1/8 | 5.7 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability

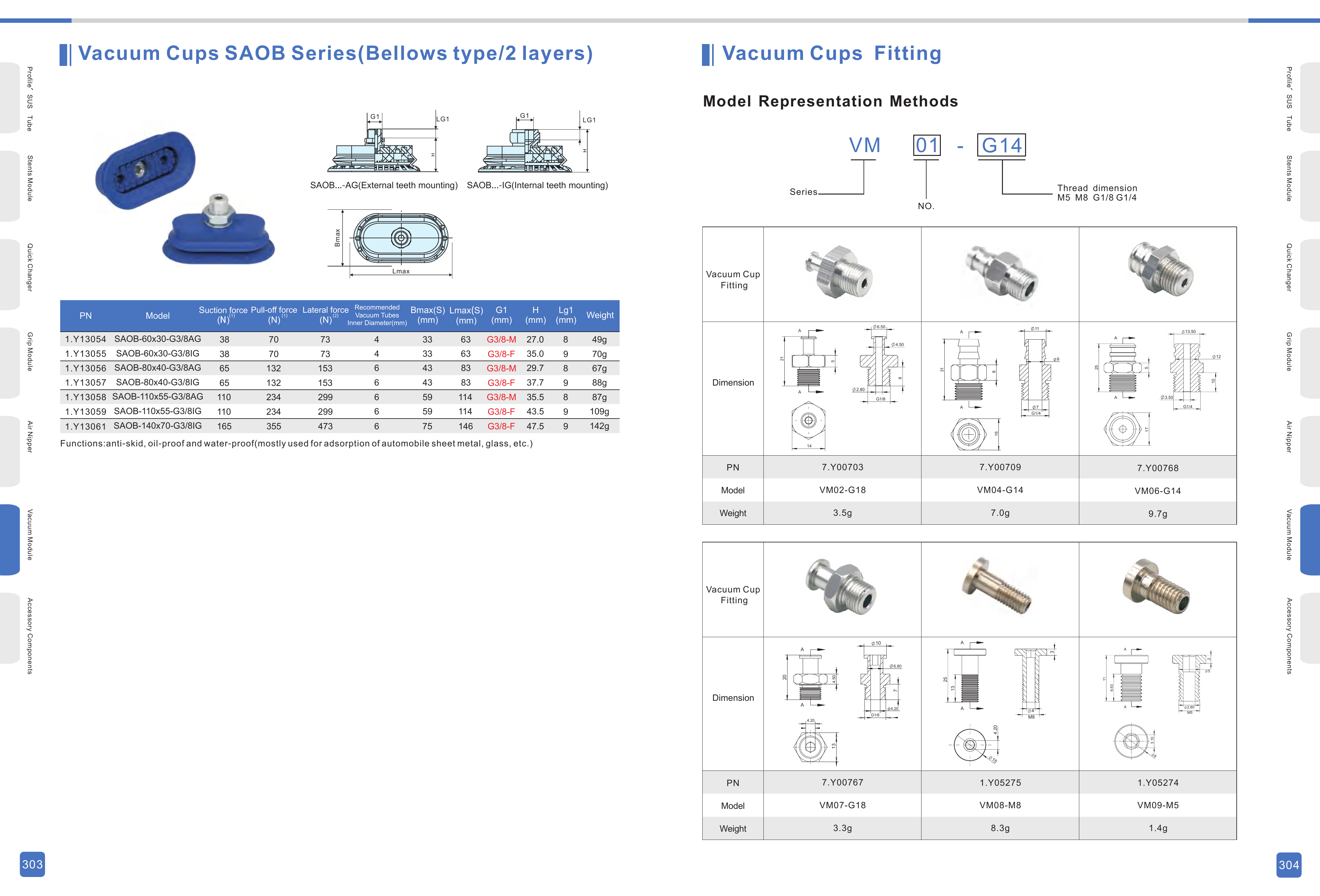

Catalog pages 304-310 · sheet 1: VM0*, VM1*, VM2*, VM3*, VM4*

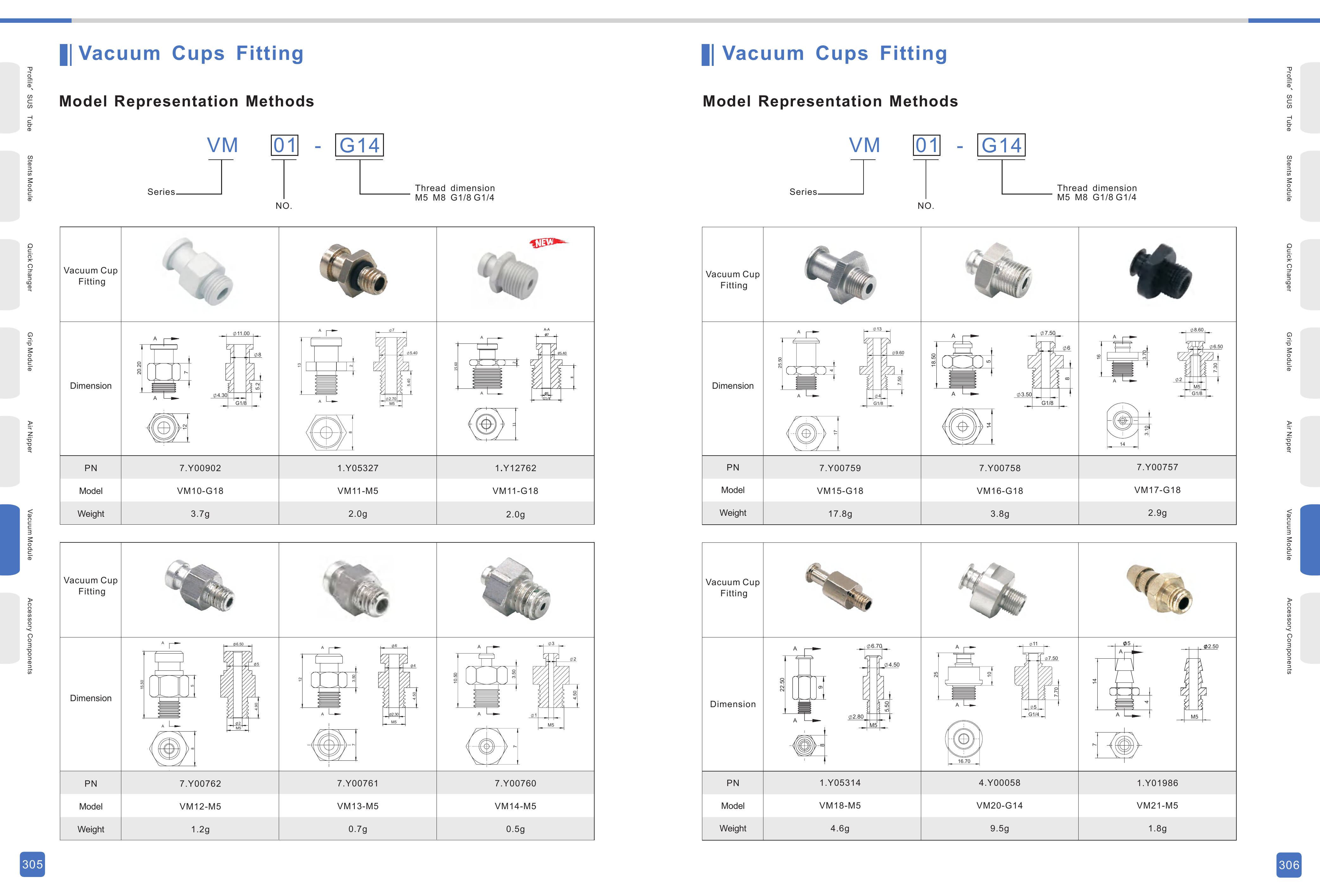

Catalog pages 304-310 · sheet 2: VM0*, VM1*, VM2*, VM3*, VM4*

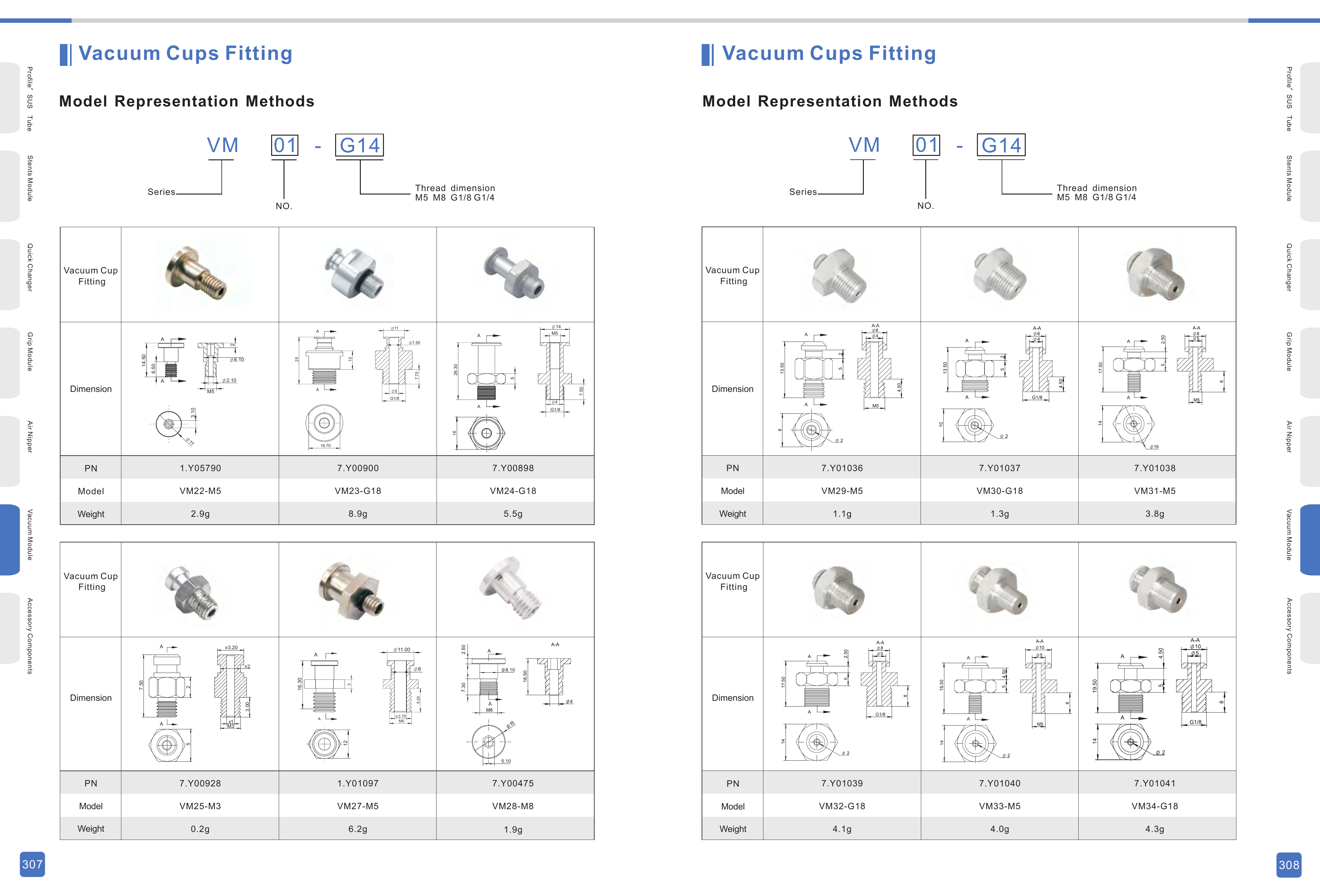

Catalog pages 304-310 · sheet 3: VM0*, VM1*, VM2*, VM3*, VM4*

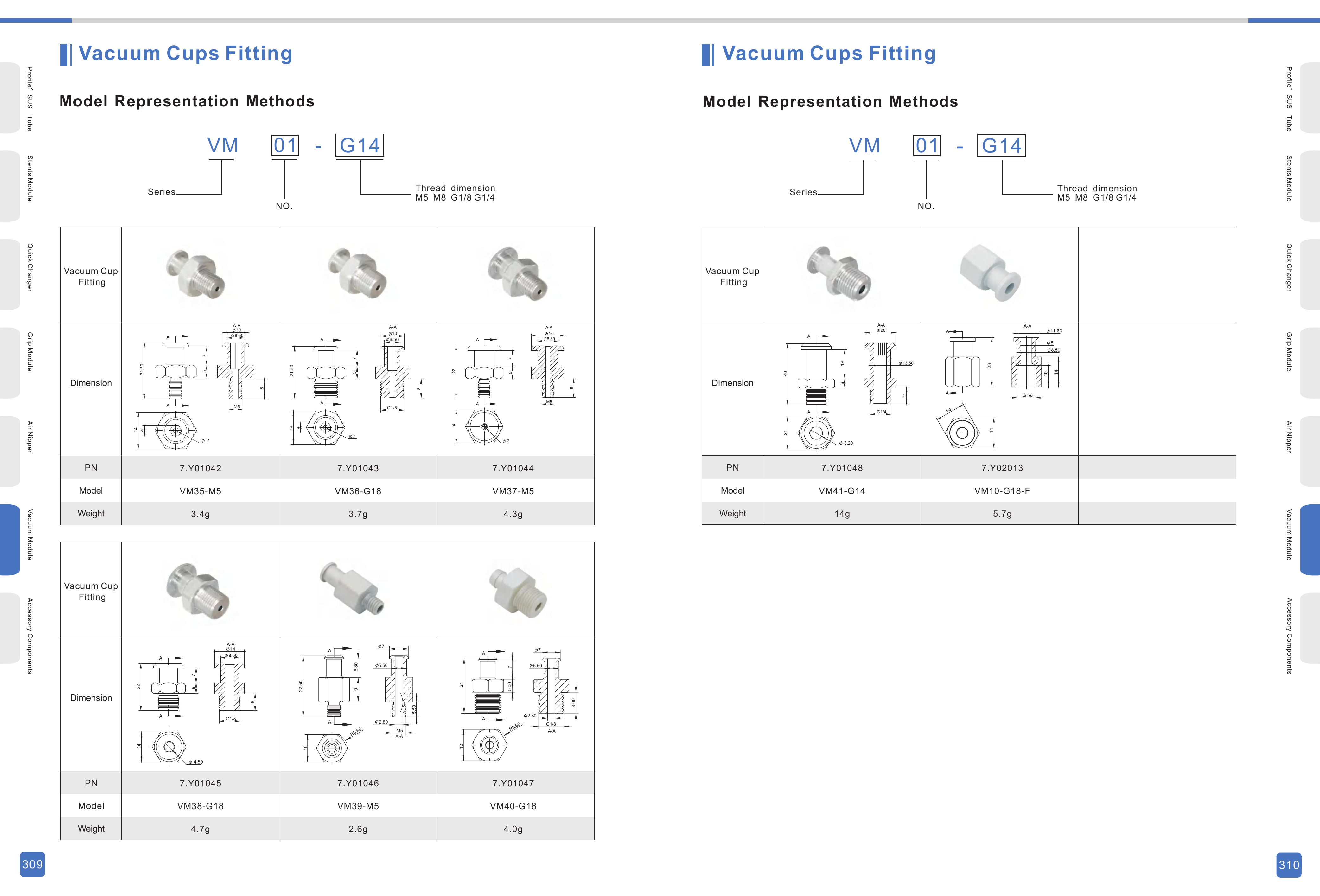

Catalog pages 304-310 · sheet 4: VM0*, VM1*, VM2*, VM3*, VM4*
Original Technical Sheet 1
Engineering dimensions, model references and selection data from the reviewed catalog source. · Catalog pages 304-310 · sheet 1
High-resolution web preview · Catalog pages 304-310 · sheet 1
Original Technical Sheet 2
Engineering dimensions, model references and selection data from the reviewed catalog source. · Catalog pages 304-310 · sheet 2
High-resolution web preview · Catalog pages 304-310 · sheet 2
Original Technical Sheet 3
Engineering dimensions, model references and selection data from the reviewed catalog source. · Catalog pages 304-310 · sheet 3
High-resolution web preview · Catalog pages 304-310 · sheet 3
Original Technical Sheet 4
Engineering dimensions, model references and selection data from the reviewed catalog source. · Catalog pages 304-310 · sheet 4
High-resolution web preview · Catalog pages 304-310 · sheet 4
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Sheet 1 is a shared catalog spread; its left-side SAOB vacuum cup content does not apply to this product.
- Confirm application conditions, mounting and safety factors before final selection.
