Product features
- Parallel opening and closing
- Standard- and long-stroke families
- Single- and double-acting variants
- Catalog dimensions and performance tables
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Parallel Grippers
Compact parallel grippers in standard-stroke GMHZ2 and long-stroke GMHZL2 series, with single- and double-acting variants.
Series
GMHZ2 / GMHZL2
Bores
10-40 mm
Action
Single / Double
Source
Catalog 191-194
Model, PN and application context confirmed during inquiry.
Overview
Understand the GMHZ2 / GMHZL2 product family
Compact parallel grippers in standard-stroke GMHZ2 and long-stroke GMHZL2 series, with single- and double-acting variants.
Selection approach
Select standard GMHZ2 or long-stroke GMHZL2, then choose bore size and S single-acting or D double-acting operation.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GMHZ2 / GMHZL2 Models
Select standard GMHZ2 or long-stroke GMHZL2, then choose bore size and S single-acting or D double-acting operation.
| Model | PN | Series | Bore | Action | Stroke | Weight | Status |
|---|---|---|---|---|---|---|---|
| GMHZ2-10S | 1.Y00258 | GMHZ2 | 10 mm | Single acting | 4 mm | 53 g | Confirmed |
| GMHZ2-10D | 1.Y00252 | GMHZ2 | 10 mm | Double acting | 4 mm | 52.5 g | Confirmed |
| GMHZ2-16S | 1.Y00257 | GMHZ2 | 16 mm | Single acting | 6 mm | 123 g | Confirmed |
| GMHZ2-16D | 1.Y00256 | GMHZ2 | 16 mm | Double acting | 6 mm | 120 g | Confirmed |
| GMHZ2-20S | 1.Y03080 | GMHZ2 | 20 mm | Single acting | 10 mm | 227 g | Confirmed |
| GMHZ2-20D | 1.Y02703 | GMHZ2 | 20 mm | Double acting | 10 mm | 225 g | Confirmed |
| GMHZ2-25S | 1.Y09884 | GMHZ2 | 25 mm | Single acting | 14 mm | 309 g | Confirmed |
| GMHZ2-25D | 1.Y09338 | GMHZ2 | 25 mm | Double acting | 14 mm | 314 g | Confirmed |
| GMHZ2-32S | 1.Y09885 | GMHZ2 | 32 mm | Single acting | 22 mm | 415 g | Confirmed |
| GMHZ2-32D | 1.Y09886 | GMHZ2 | 32 mm | Double acting | 22 mm | 410 g | Confirmed |
| GMHZ2-40S | 1.Y09887 | GMHZ2 | 40 mm | Single acting | 30 mm | 543 g | Confirmed |
| GMHZ2-40D | 1.Y09888 | GMHZ2 | 40 mm | Double acting | 30 mm | 537 g | Confirmed |
| GMHZL2-10S | 1.Y09405 | GMHZL2 | 10 mm | Single acting | 8 mm | 63 g | Confirmed |
| GMHZL2-10D | 1.Y07974 | GMHZL2 | 10 mm | Double acting | 8 mm | 59 g | Confirmed |
| GMHZL2-16S | 1.Y08175 | GMHZL2 | 16 mm | Single acting | 12 mm | 139 g | Confirmed |
| GMHZL2-16D | 1.Y08146 | GMHZL2 | 16 mm | Double acting | 12 mm | 130 g | Confirmed |
| GMHZL2-20S | 1.Y09882 | GMHZL2 | 20 mm | Single acting | 18 mm | 218 g | Confirmed |
| GMHZL2-20D | 1.Y07975 | GMHZL2 | 20 mm | Double acting | 18 mm | 211 g | Confirmed |
| GMHZL2-25S | 1.Y09883 | GMHZL2 | 25 mm | Single acting | 22 mm | 302 g | Confirmed |
| GMHZL2-25D | 1.Y08802 | GMHZL2 | 25 mm | Double acting | 22 mm | 293 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 191-192: GMHZ2*
Catalog pages 193-194: GMHZL2*

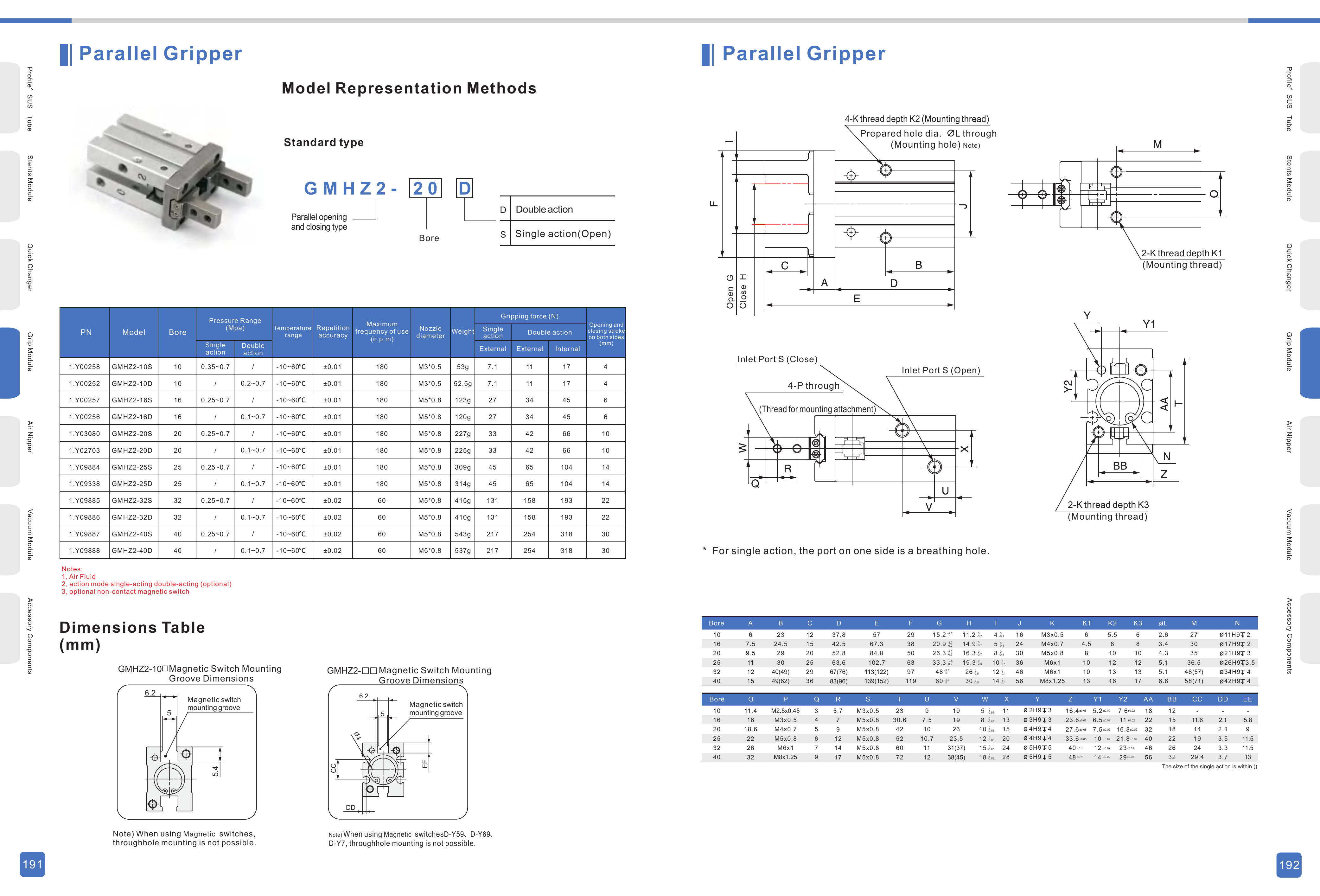

Original Technical Sheet 1 - GMHZ2
Model selection, dimensions and technical parameters · Catalog pages 191-192
High-resolution web preview · Catalog pages 191-192

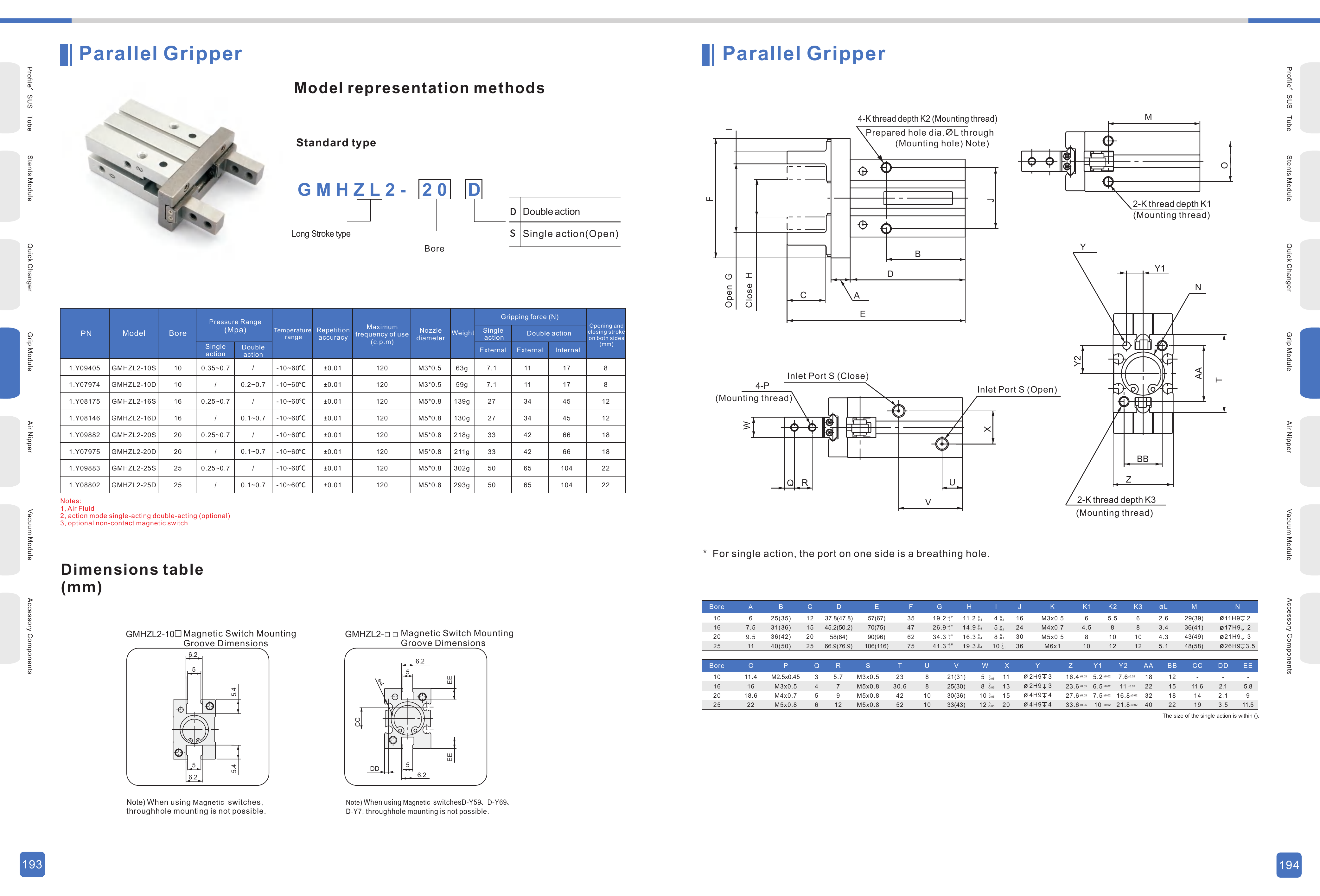

Original Technical Sheet 2 - GMHZL2
Long-stroke model selection, dimensions and technical parameters · Catalog pages 193-194
High-resolution web preview · Catalog pages 193-194
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Magnetic switch options shown in the source require quotation confirmation.
- Confirm gripping force and jaw design for the application.
