GRA20 Sprue Grippers

Five source-confirmed GRA20 sprue gripper configurations with 80 N gripping force.

Series

GRA20

Models

5 source-confirmed

Source

Catalog 223-224

Model, PN and application context confirmed during inquiry.

Overview

Understand the GRA20 product family

Five source-confirmed GRA20 sprue gripper configurations with 80 N gripping force.

Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.

All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.

Product Selection Tool

Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.

Model	PN	Scope	Source evidence	Status
GRA20A	8.Y00391	No sensor	80 N / 110 g	Confirmed
GRA20A-CP	8.Y00392	PNP	80 N / 115 g	Confirmed
GRA20A-CN	8.Y00393	NPN	80 N / 115 g	Confirmed
GRA20C-CP	8.Y00434	PNP	80 N / 135 g	Confirmed
GRA20C-CN	8.Y00435	NPN	80 N / 135 g	Confirmed

Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.

Engineering Reference

Review the engineering sheets for the selected model. Confirm dimensions, connections and the applicable configuration before quotation.

Dimensions & Drawings

Model / PN Reference

Technical Notes

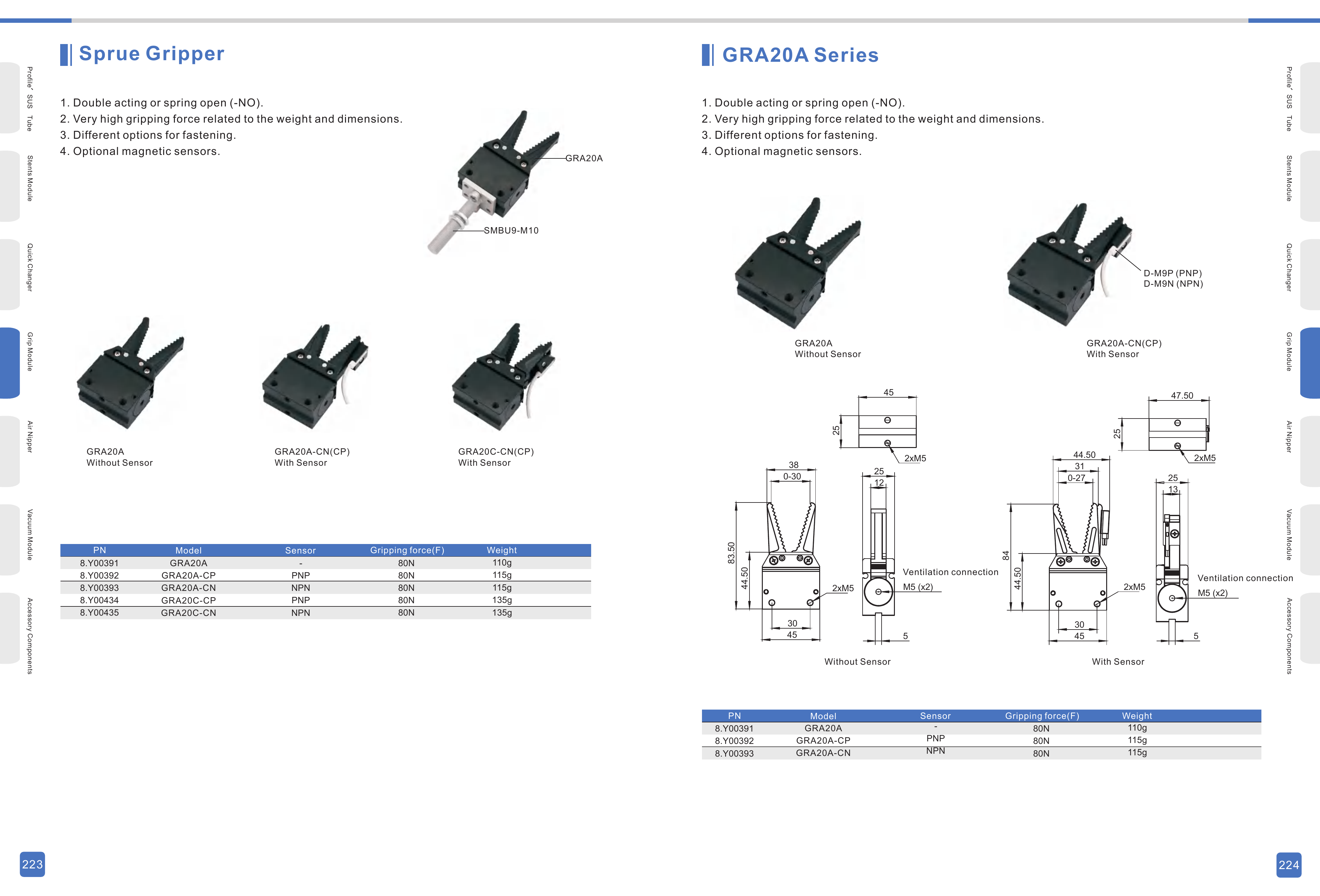

Catalog 223-224: GRA20*

Catalog-confirmed models, PNs and technical details · Catalog 223-224

High-resolution web preview · Catalog 223-224

Open the reviewed source PDF for the highest-fidelity engineering reference.
