Product features
- Multiple jaw geometries
- No-sensor, PNP and NPN configurations

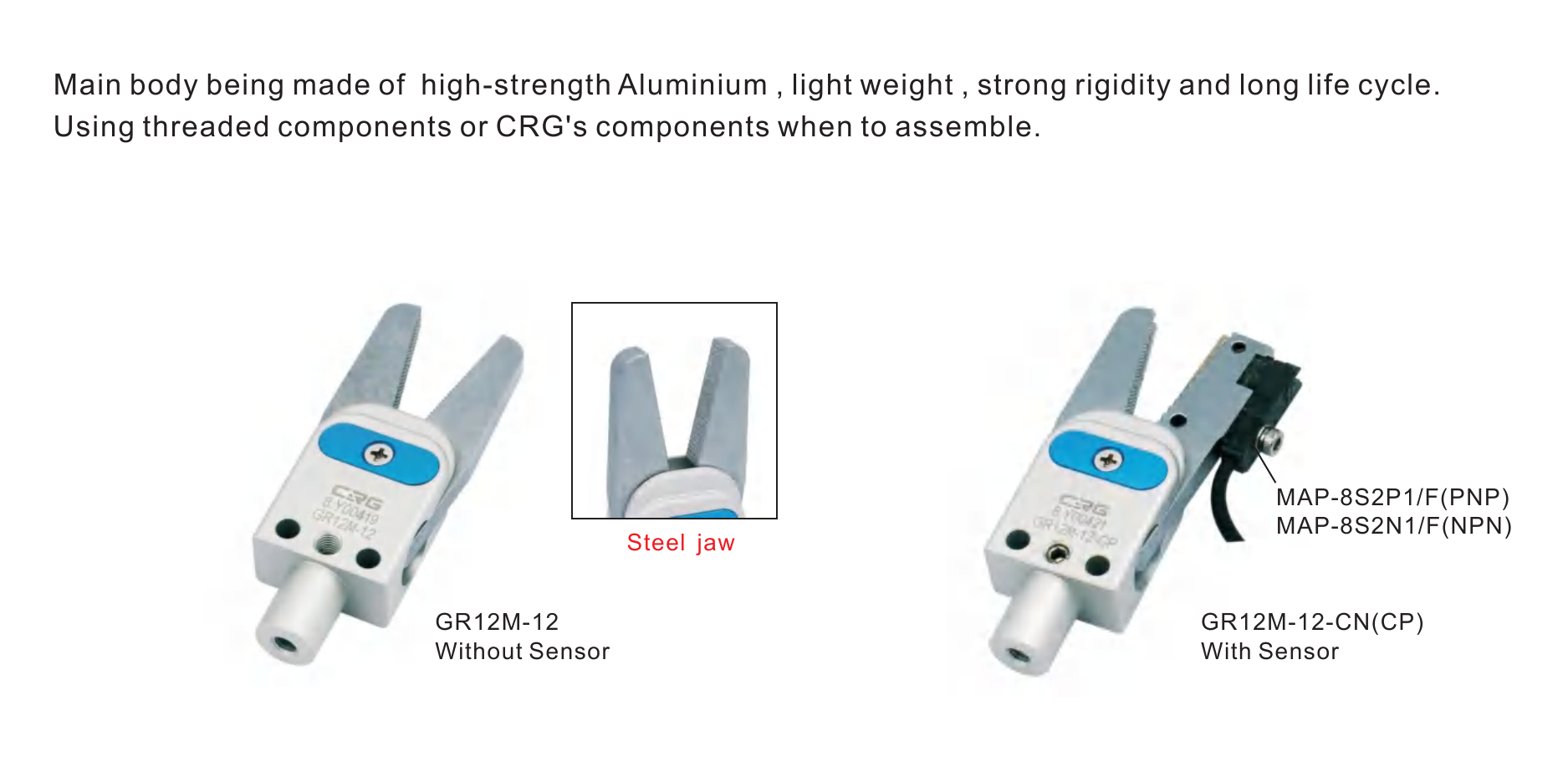

- High-strength aluminum source construction
- Five engineering-reference spreads
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
GR10 / DGR10 / GR12M Sprue Grippers
Compact GR05, GR10 and GR12 sprue-gripper families with multiple jaw geometries and optional PNP or NPN sensors.
Families
GR05 / GR10 / GR12
Force
12 / 28 N
Sensors
None / PNP / NPN
Source
Catalog 201-210
Model, PN and application context confirmed during inquiry.
Overview
Understand the GR05 / GR10 / GR12 family product family
Compact GR05, GR10 and GR12 sprue-gripper families with multiple jaw geometries and optional PNP or NPN sensors.
Selection approach
Choose the jaw/body family, then select the required bore or jaw dimension and no-sensor, PNP (-CP) or NPN (-CN) configuration.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GR05 / GR10 / GR12 family Models
Choose the jaw/body family, then select the required bore or jaw dimension and no-sensor, PNP (-CP) or NPN (-CN) configuration.
| Model | PN | Sensor | Gripping force | Weight | Status |
|---|---|---|---|---|---|
| GR05A-10 | 8.Y00348 | None | 12 N | 9.6 g | Confirmed |
| GR10A-12 | 8.Y00268 | None | 28 N | 44 g | Confirmed |
| GR10A-12-CP | 8.Y00267 | PNP | 28 N | 70 g | Confirmed |
| GR10A-12-CN | 8.Y00305 | NPN | 28 N | 70 g | Confirmed |
| GR10D-12 | 8.Y00370 | None | 28 N | 42 g | Confirmed |
| GR10D-12-CP | 8.Y00369 | PNP | 28 N | 61 g | Confirmed |
| GR10D-12-CN | 8.Y01034 | NPN | 28 N | 61 g | Confirmed |
| GR12A-12 | 8.Y00048 | None | 28 N | 44 g | Confirmed |
| GR12A-12-CP | 8.Y00050 | PNP | 28 N | 70 g | Confirmed |
| GR12A-12-CN | 8.Y00091 | NPN | 28 N | 70 g | Confirmed |
| GR12B-12 | 8.Y00245 | None | 28 N | 44 g | Confirmed |
| GR12B-12-CP | 8.Y00261 | PNP | 28 N | 70 g | Confirmed |
| GR12B-12-CN | 8.Y00262 | NPN | 28 N | 70 g | Confirmed |
| GR10L-12 | 8.Y00307 | None | 28 N | 50 g | Confirmed |
| GR12L-12 | 8.Y00308 | None | 28 N | 50 g | Confirmed |
| GR10L-12-CP | 8.Y01053 | PNP | 28 N | 116 g | Confirmed |
| GR10L-12-CN | 8.Y01054 | NPN | 28 N | 116 g | Confirmed |
| GR12L-12-CP | 8.Y01020 | PNP | 28 N | 116 g | Confirmed |
| GR12L-12-CN | 8.Y01021 | NPN | 28 N | 116 g | Confirmed |
| GR12M-12 | 8.Y00419 | None | 28 N | 66.2 g | Confirmed |
| GR12M-12-CP | 8.Y00421 | PNP | 28 N | 82.5 g | Confirmed |
| GR12M-12-CN | 8.Y00420 | NPN | 28 N | 82.5 g | Confirmed |
| GR10N-12 | 8.Y01011 | None | 28 N | 42 g | Confirmed |
| GR12N-12 | 8.Y01012 | None | 28 N | 42 g | Confirmed |
| GR12N-12-CP | 8.Y01018 | PNP | 28 N | 74.3 g | Confirmed |
| GR12N-12-CN | 8.Y01083 | NPN | 28 N | 74.3 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 201-202: GR05*, GR10*, GR12*
Catalog pages 203-204: GR05*, GR10*, GR12*
Catalog pages 205-206: GR05*, GR10*, GR12*
Catalog pages 207-208: GR05*, GR10*, GR12*
Catalog pages 209-210: GR05*, GR10*, GR12*

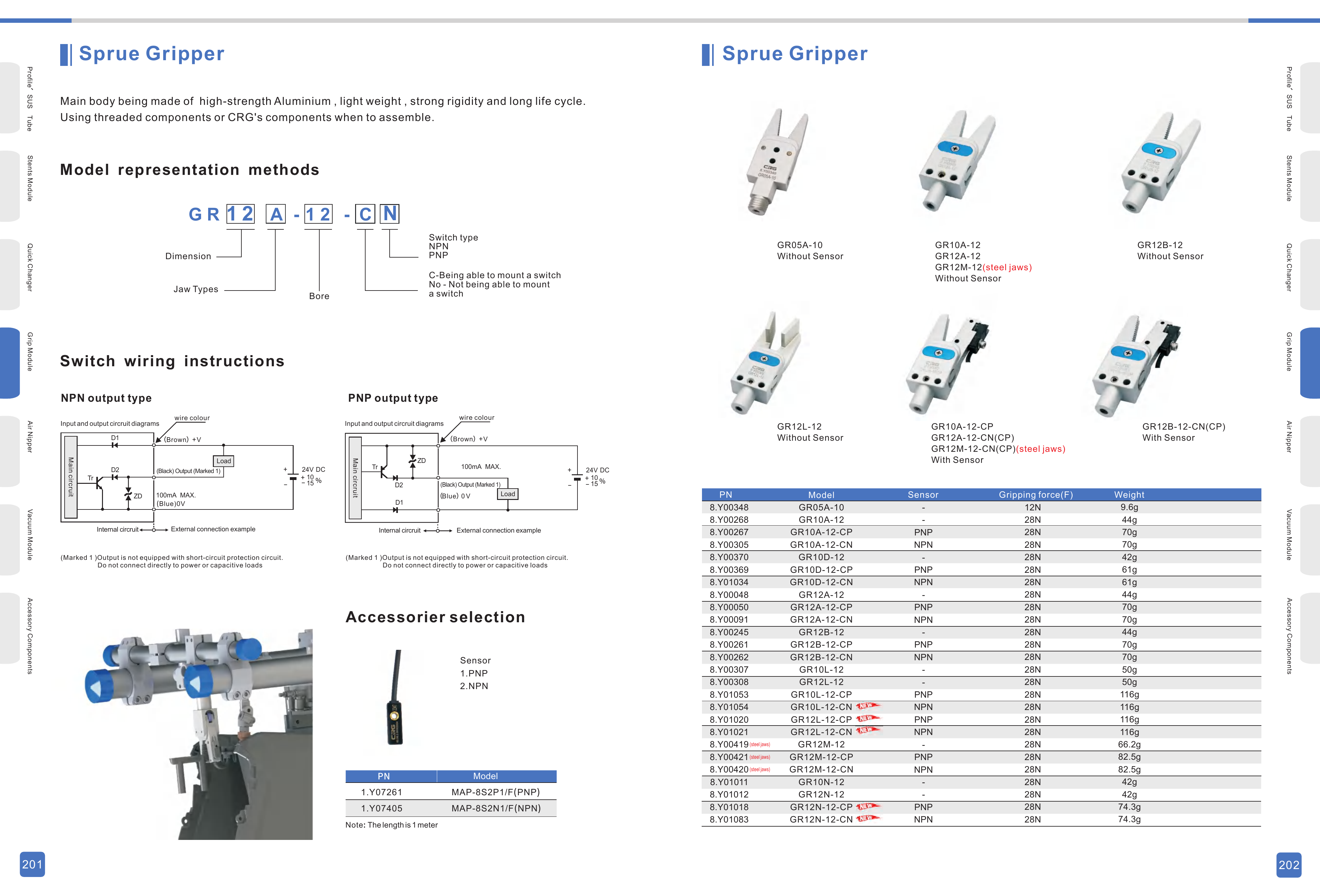

Original Technical Sheet 1 - GR05 / GR10 / GR12
Model selection, sensor variants, jaw geometry and dimensions · Catalog pages 201-202
High-resolution web preview · Catalog pages 201-202

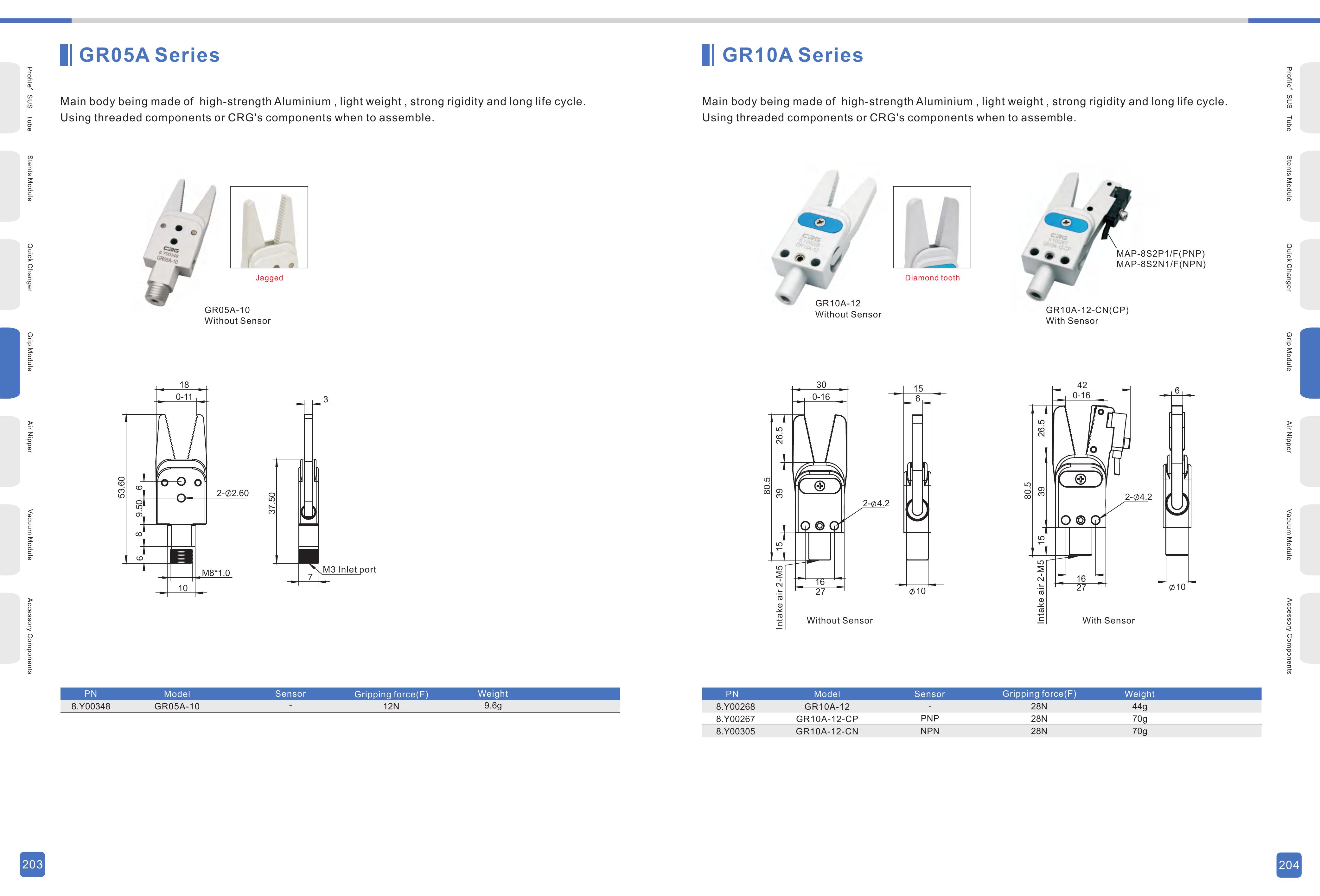

Original Technical Sheet 2 - GR05 / GR10 / GR12
Model selection, sensor variants, jaw geometry and dimensions · Catalog pages 203-204
High-resolution web preview · Catalog pages 203-204

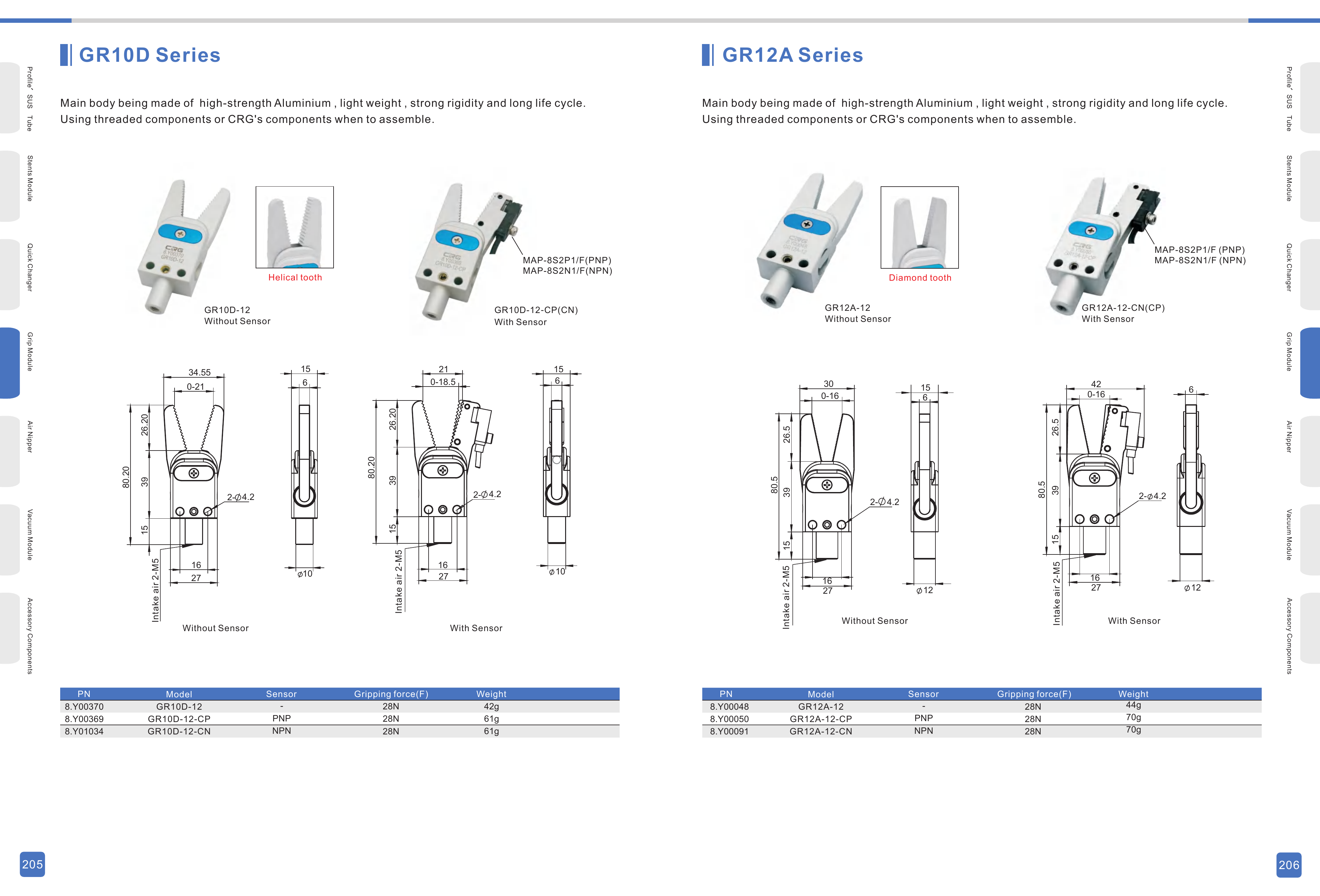

Original Technical Sheet 3 - GR05 / GR10 / GR12
Model selection, sensor variants, jaw geometry and dimensions · Catalog pages 205-206
High-resolution web preview · Catalog pages 205-206

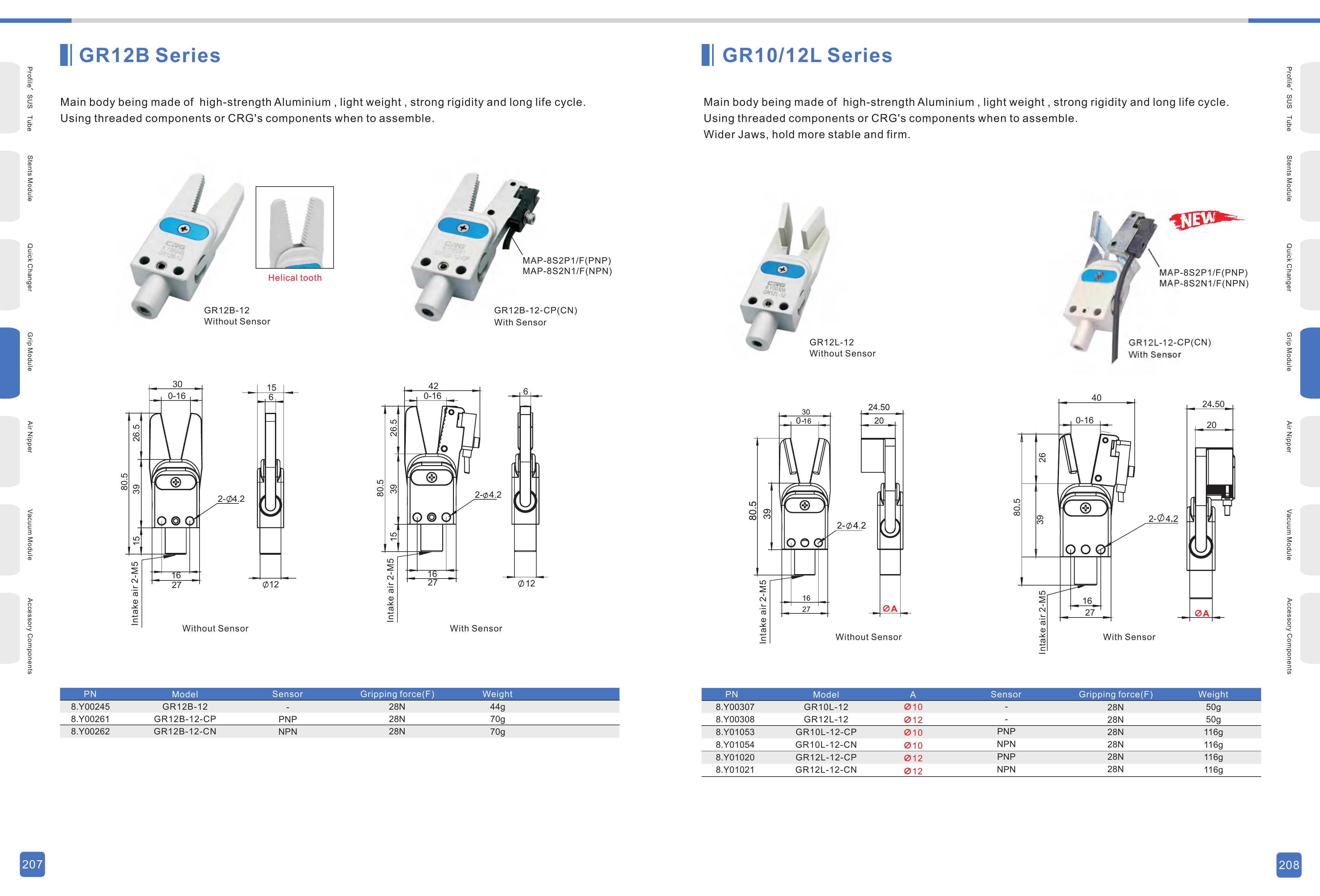

Original Technical Sheet 4 - GR05 / GR10 / GR12
Model selection, sensor variants, jaw geometry and dimensions · Catalog pages 207-208
High-resolution web preview · Catalog pages 207-208

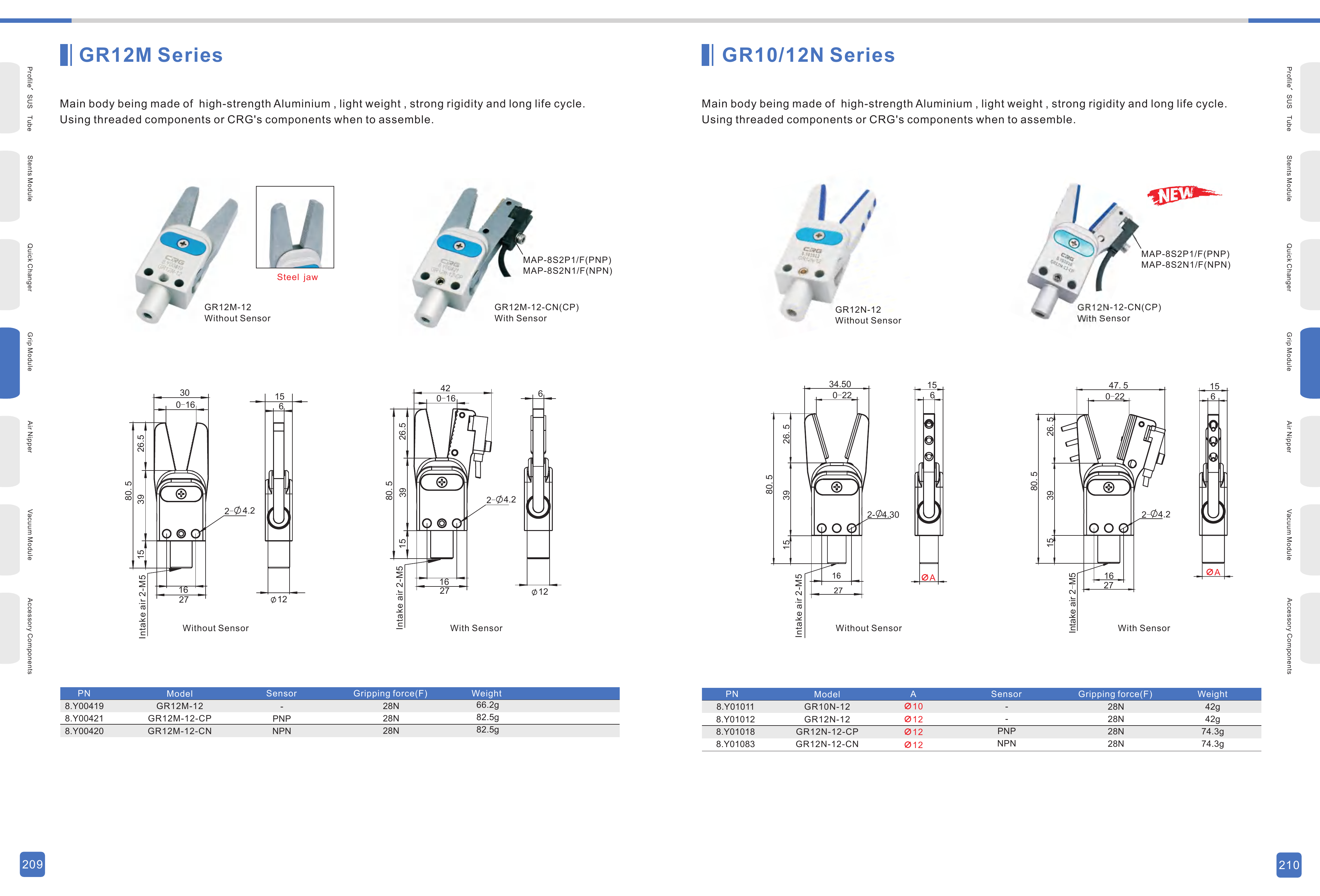

Original Technical Sheet 5 - GR05 / GR10 / GR12
Model selection, sensor variants, jaw geometry and dimensions · Catalog pages 209-210
High-resolution web preview · Catalog pages 209-210
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Each sheet covers a subset of jaw/body families; verify the selected model on the applicable drawing.
- Sensor output and jaw geometry must be confirmed in the RFQ.
