EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
Vacuum Handling Components
Vacuum Cup Thread Adapters / Connectors
Seven catalog-confirmed two-interface vacuum cup thread adapters and connectors.
Frozen ID
PP-VC-01B
Series
VM Thread Adapters
Models
7 source-confirmed
Source
Catalog 311-312
Model, PN and application context confirmed during inquiry.
Overview
Understand the VM Thread Adapters product family
Seven catalog-confirmed two-interface vacuum cup thread adapters and connectors.
Selection approach
Select the catalog-confirmed model, then submit the resolved model and PN through the RFQ context.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare VM Thread Adapters Models
Select the catalog-confirmed model, then submit the resolved model and PN through the RFQ context.
| Model | PN | Scope | Source evidence | Status |
|---|---|---|---|---|
| VM-G18M-M10M | 7.Y00808 | VM Thread Adapter | Pages 311-312 | Confirmed |
| VM-G14M-M10M | 7.Y00756 | VM Thread Adapter | Pages 311-312 | Confirmed |
| VM-G18M-M5F | 7.Y00755 | VM Thread Adapter | Pages 311-312 | Confirmed |
| VM-G18M-M8F | 7.Y00754 | VM Thread Adapter | Pages 311-312 | Confirmed |
| VM-M5M-M8F | 7.Y00473 | VM Thread Adapter | Pages 311-312 | Confirmed |
| VM-M5M-G18F | 7.Y00474 | VM Thread Adapter | Pages 311-312 | Confirmed |
| VM-G14M-M8F | 7.Y00476 | VM Thread Adapter | Pages 311-312 | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog 311-312: VM-*

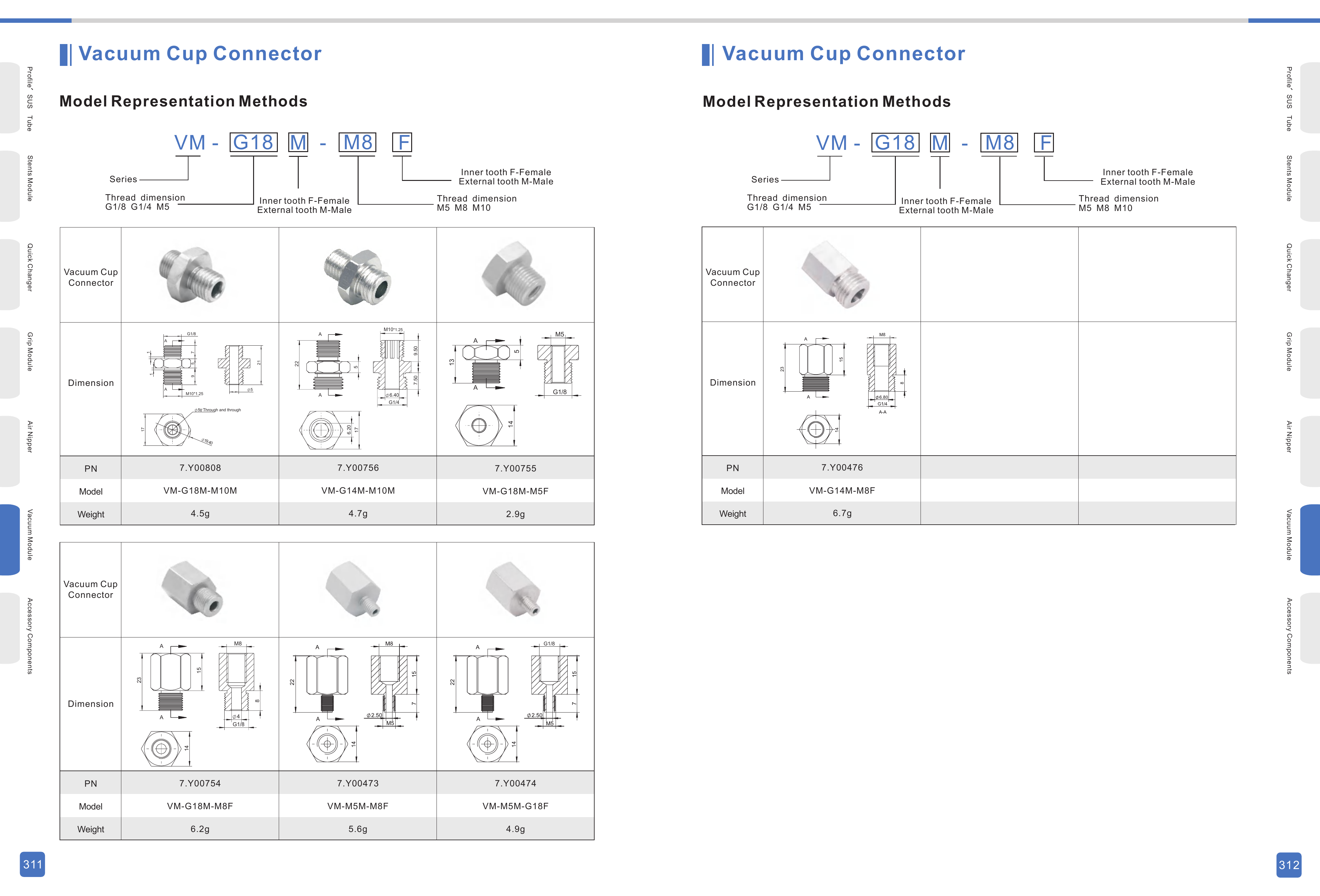

Original Technical Sheet - VM Thread Adapters
Catalog-confirmed models, PNs and technical details · Catalog 311-312
High-resolution web preview · Catalog 311-312
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Only Printed Pages 311-312 are bound to this Product Record.
- Pages 304-310 vacuum cup fittings are excluded.
