Product features
- Flat cup geometry
- Broad size range
- Multiple material PN options
- Catalog fittings and dimensional references
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
Vacuum Handling Components
PFYN Flat Vacuum Cups
Flat vacuum cups in a broad diameter range with NBR, silicone and high-temperature material PN options.
Series
PFYN
Sizes
2-200 mm
Materials
NBR / SI / HT1
Vacuum reference
-0.6 bar
Model, PN and application context confirmed during inquiry.
Overview
Understand the PFYN product family
Flat vacuum cups in a broad diameter range with NBR, silicone and high-temperature material PN options.
Selection approach
Select cup size and fitting, then confirm NBR-55, SI-55 or HT1-60 material availability for the chosen model.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PFYN Models
Select cup size and fitting, then confirm NBR-55, SI-55 or HT1-60 material availability for the chosen model.
| Model | PN | Suction force | Fitting | Diameter | Materials | Status |
|---|---|---|---|---|---|---|
| PFYN-2 | Confirm by material / quotation | 0.12 N | M5-M | 2.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-3.5 | Confirm by material / quotation | 0.42 N | M5-M | 3.5 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-5 | Confirm by material / quotation | 0.75 N | M5-M | 5.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-6 | Confirm by material / quotation | 1.2 N | M5-M | 6.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-8 | Confirm by material / quotation | 2.3 N | M5-M | 8.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-10 | Confirm by material / quotation | 4.0 N | M5-M | 10.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-15 | Confirm by material / quotation | 9.0 N | G1/8-M | 15.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-20 | Confirm by material / quotation | 15.5 N | G1/8-M | 20.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-25 | Confirm by material / quotation | 26.5 N | G1/8-M | 25.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-30 | Confirm by material / quotation | 34.0 N | G1/8-M | 28.8 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-35 | Confirm by material / quotation | 44.0 N | G1/8-M | 35.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-40 | Confirm by material / quotation | 57.7 N | G1/8-M | 40.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-50 | Confirm by material / quotation | 91.0 N | G1/8-M | 50.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-60 | Confirm by material / quotation | 125.0 N | G1/4-M | 60.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-80 | Confirm by material / quotation | 260.0 N | G1/4-M | 80.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-95 | Confirm by material / quotation | 350.0 N | G1/4-M | 95.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-120 | Confirm by material / quotation | 540.0 N | G1/2-F | 120.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-150 | Confirm by material / quotation | 842.0 N | G1/2-F | 147.5 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
| PFYN-200 | Confirm by material / quotation | 1498.0 N | G1/2-F | 193.0 mm | NBR-55 / SI-55 / HT1-60 | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog page 293: PFYN*

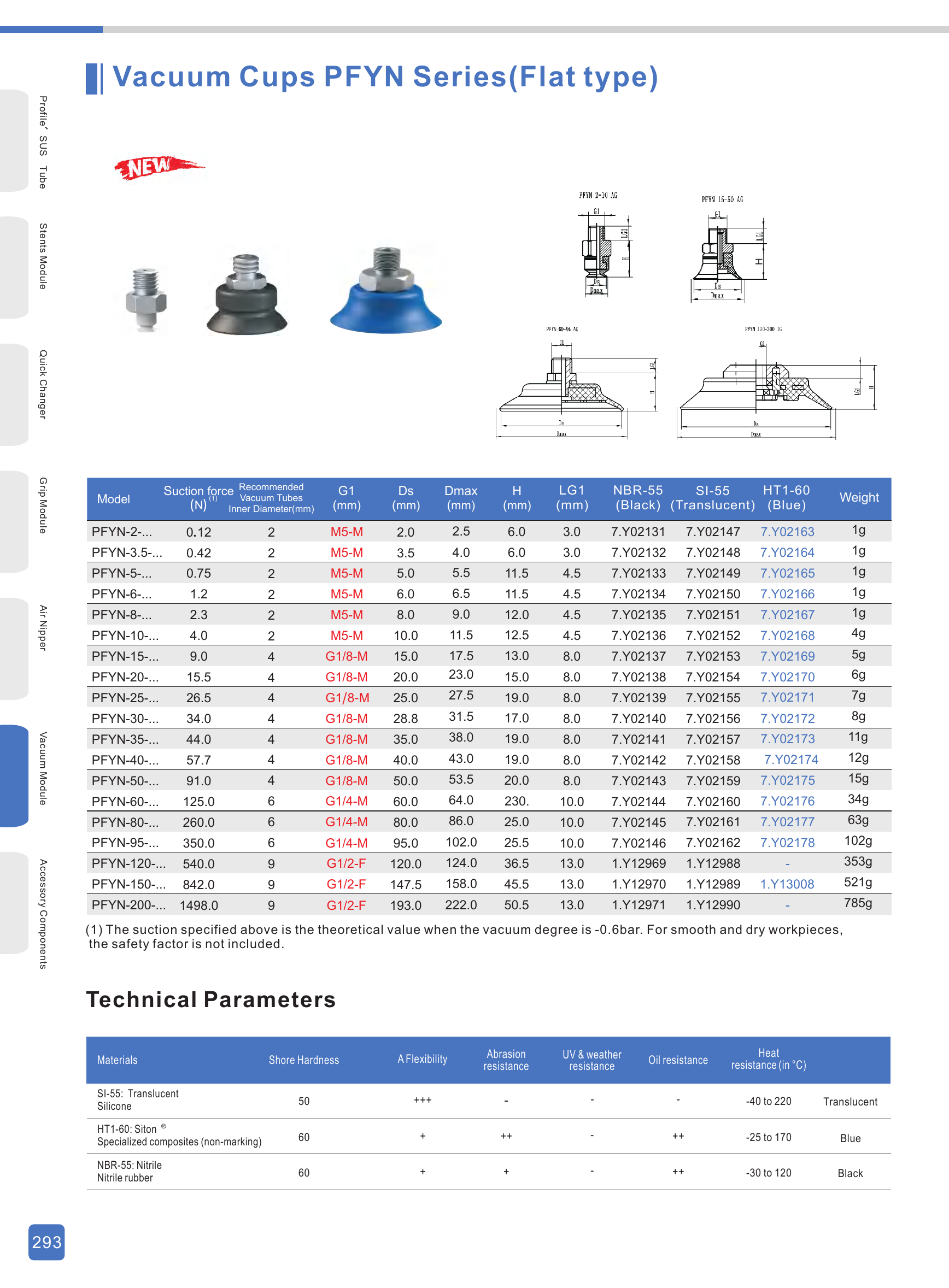

Original Technical Sheet - PFYN Selection & Materials
Models, dimensions, fittings, material PNs and technical parameters · Catalog page 293
High-resolution web preview · Catalog page 293
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- The web technical sheet is cropped to PFYN page 293; the source PDF retains the complete spread.
- Suction force is a theoretical source value at -0.6 bar without a safety factor.
- Material-specific PN must be confirmed in the quotation context.
