Vacuum Handling Components
FGA / FG Bellows Vacuum Cups
Catalog-confirmed FGA two-layer and FG three-layer bellows vacuum cups, retained as one approved FINAL production destination.
Frozen ID
PP-290
Series
FGA / FG
Source
Catalog 291-292
Model, PN and application context confirmed during inquiry.
Draft review note: Source PN 1.Y12298 appears in both FGA-11 HT1-60 and FGA-78 SI-55 rows; retain source values but confirm before quotation.
Overview
Understand the FGA / FG product family
Catalog-confirmed FGA two-layer and FG three-layer bellows vacuum cups, retained as one approved FINAL production destination.
Selection approach
Select the FGA size, then material and applicable fitting. Dimensions are shown as Dk / Dmax / Ds / H.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare FGA / FG Models
Select the FGA size, then material and applicable fitting. Dimensions are shown as Dk / Dmax / Ds / H.
| Model | PN | Suction force | Pull-off force | Dimensions | NBR-55 PN | SI-55 PN | HT1-60 PN | Weight | Status |
|---|---|---|---|---|---|---|---|---|---|
| FGA-6 | Confirm by material / quotation | 0.4 N | 1.4 N | - | 1.Y12937 | 1.Y12949 | 1.Y12951 | 1 g | Confirmed |
| FGA-11 | Confirm by material / quotation | 0.95 N | 3.8 N | - | 1.Y12938 | 1.Y12288 | 1.Y12298 | 1 g | Confirmed |
| FGA-14 | Confirm by material / quotation | 1.2 N | 5.0 N | - | 1.Y12939 | 1.Y12289 | 1.Y12299 | 1 g | Confirmed |
| FGA-16 | Confirm by material / quotation | 2.3 N | 6.7 N | - | 1.Y12940 | 1.Y12290 | 1.Y12300 | 1 g | Confirmed |
| FGA-20 | Confirm by material / quotation | 4.7 N | 10.7 N | - | 1.Y12941 | 1.Y12291 | 1.Y12301 | 2 g | Confirmed |
| FGA-22 | Confirm by material / quotation | 5.7 N | 15.2 N | - | 1.Y12942 | 1.Y12292 | 1.Y12302 | 2 g | Confirmed |
| FGA-25 | Confirm by material / quotation | 5.3 N | 17.3 N | - | 1.Y12943 | 1.Y12293 | 1.Y12303 | 3 g | Confirmed |
| FGA-33 | Confirm by material / quotation | 13.6 N | 39.6 N | - | 1.Y12944 | 1.Y12294 | 1.Y12304 | 7 g | Confirmed |
| FGA-43 | Confirm by material / quotation | 22.8 N | 64.5 N | - | 1.Y12945 | 1.Y12295 | 1.Y12305 | 11 g | Confirmed |
| FGA-53 | Confirm by material / quotation | 51.3 N | 95.0 N | - | 1.Y12946 | 1.Y12296 | 1.Y12306 | 19 g | Confirmed |
| FGA-63 | Confirm by material / quotation | 85.0 N | 135.0 N | - | 1.Y12947 | 1.Y12297 | 1.Y12307 | 24 g | Confirmed |
| FGA-78 | Confirm by material / quotation | 137.4 N | 218.0 N | - | 1.Y12948 | 1.Y12298 | 1.Y12952 | 56 g | Confirmed |
| FG-3 | Confirm by material / quotation | 0.2 N | 0.4 N | - | 1.Y12929 | 1.Y12931 | 1.Y12934 | 1 g | Confirmed |
| FG-4 | Confirm by material / quotation | 0.3 N | 0.6 N | - | 1.Y12930 | 1.Y12932 | 1.Y12935 | 1 g | Confirmed |
| FG-5 | Confirm by material / quotation | 0.2 N | 0.8 N | - | 1.Y12308 | 1.Y12319 | 1.Y12331 | 1 g | Confirmed |
| FG-7 | Confirm by material / quotation | 0.1 N | 0.9 N | - | 1.Y12309 | 1.Y12320 | 1.Y12332 | 1 g | Confirmed |
| FG-9 | Confirm by material / quotation | 0.7 N | 2.3 N | - | 1.Y12310 | 1.Y12321 | 1.Y12333 | 1 g | Confirmed |
| FG-12 | Confirm by material / quotation | 0.9 N | 3.5 N | - | 1.Y12311 | 1.Y12322 | 1.Y12334 | 1 g | Confirmed |
| FG-14 | Confirm by material / quotation | 1.2 N | 5.7 N | - | 1.Y12312 | 1.Y12323 | 1.Y12335 | 2 g | Confirmed |
| FG-18 | Confirm by material / quotation | 2.3 N | 8.5 N | - | 1.Y12313 | 1.Y12324 | 1.Y12336 | 2 g | Confirmed |
| FG-20 | Confirm by material / quotation | 3.8 N | 12.1 N | - | 1.Y12314 | 1.Y12325 | 1.Y12337 | 2 g | Confirmed |
| FG-25 | Confirm by material / quotation | 4.5 N | 19.0 N | - | 1.Y12315 | 1.Y12326 | 1.Y12338 | 4 g | Confirmed |
| FG-32 | Confirm by material / quotation | 12.0 N | 36.9 N | - | 1.Y12284 | 1.Y12327 | 1.Y11797 | 10 g | Confirmed |
| FG-42 | Confirm by material / quotation | 13.6 N | 44.0 N | - | 1.Y12316 | 1.Y12328 | 1.Y12340 | 18 g | Confirmed |
| FG-52 | Confirm by material / quotation | 27.0 N | 96.0 N | - | 1.Y12317 | 1.Y12329 | 1.Y12341 | 24 g | Confirmed |
| FG-62 | Confirm by material / quotation | 39.6 N | 137.0 N | - | 1.Y12318 | 1.Y12330 | 1.Y12342 | 39 g | Confirmed |
| FG-88 | Confirm by material / quotation | 45.2 N | 286.0 N | - | 1.Y12928 | 1.Y12933 | 1.Y12936 | 166 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability

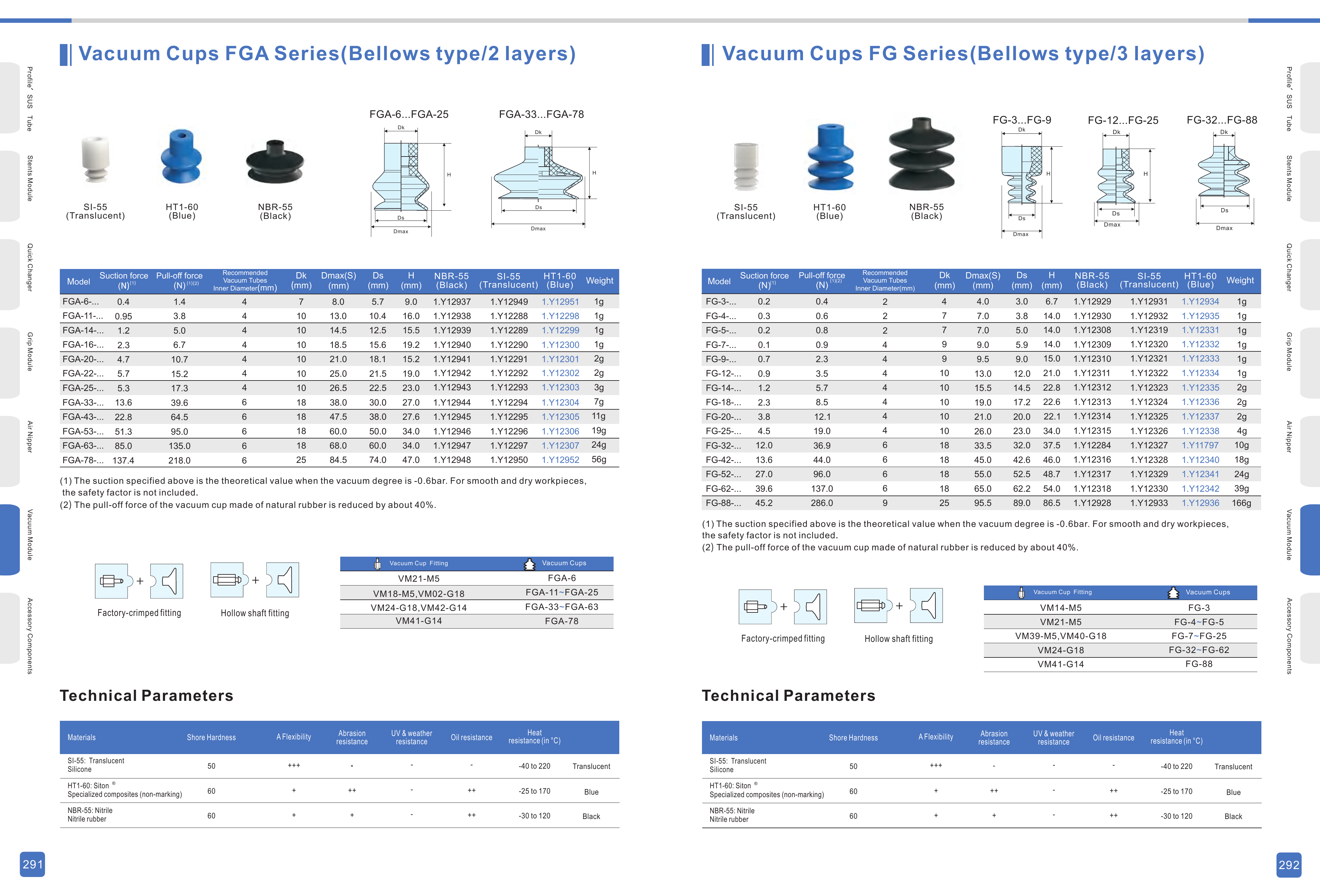

Catalog page 291 · sheet 1: FGA*
Original Technical Sheet 1
Engineering dimensions, model references and selection data from the reviewed catalog source. · Catalog page 291 · sheet 1
High-resolution web preview · Catalog page 291 · sheet 1
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Confirm application conditions, mounting and safety factors before final selection.
- Confirm application conditions, mounting and safety factors before final selection.
