AOF Vacuum Cups
Flat oval vacuum cups with internal- or external-thread mounting, catalog-defined suction and lateral force references, dimensions and PNs.
Source series
SAOF
Mounting
G3/8 male / female
Sizes
50×16-140×70
Status
Naming HOLD
Model, PN and application context confirmed during inquiry.
Draft review note: Naming conflict: approved page name AOF versus source catalog series SAOF requires human confirmation.
Overview
Understand the SAOF (source catalog) product family
Flat oval vacuum cups with internal- or external-thread mounting, catalog-defined suction and lateral force references, dimensions and PNs.
Selection approach
Confirm whether the website family name should be AOF or SAOF, then choose size and AG/IG mounting variant.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare SAOF (source catalog) Models
Confirm whether the website family name should be AOF or SAOF, then choose size and AG/IG mounting variant.
| Model | PN | Mounting | Suction force | Lateral force | PN | Status |
|---|---|---|---|---|---|---|
| SAOF-50x16-G3/8AG | 1.Y13024 | External / G3/8-M | 31 N | 24 N | 1.Y13024 | HOLD |
| SAOF-60x23-G3/8AG | 1.Y13025 | External / G3/8-M | 57 N | 37 N | 1.Y13025 | HOLD |
| SAOF-90x30-G3/8AG | 1.Y13026 | External / G3/8-M | 122 N | 96 N | 1.Y13026 | HOLD |
| SAOF-80x40-G3/8AG | 1.Y13027 | External / G3/8-M | 140 N | 110 N | 1.Y13027 | HOLD |
| SAOF-100x50-G3/8AG | 1.Y13028 | External / G3/8-M | 217 N | 181 N | 1.Y13028 | HOLD |
| SAOF-120x60-G3/8AG | 1.Y13029 | External / G3/8-M | 312 N | 254 N | 1.Y13029 | HOLD |
| SAOF-50x16-G3/8IG | 1.Y13030 | Internal / G3/8-F | 31 N | 24 N | 1.Y13030 | HOLD |
| SAOF-60x23-G3/8IG | 1.Y13031 | Internal / G3/8-F | 57 N | 37 N | 1.Y13031 | HOLD |
| SAOF-90x30-G3/8IG | 1.Y13032 | Internal / G3/8-F | 122 N | 96 N | 1.Y13032 | HOLD |
| SAOF-80x40-G3/8IG | 1.Y13033 | Internal / G3/8-F | 140 N | 110 N | 1.Y13033 | HOLD |
| SAOF-100x50-G3/8IG | 1.Y13034 | Internal / G3/8-F | 217 N | 181 N | 1.Y13034 | HOLD |
| SAOF-120x60-G3/8IG | 1.Y13035 | Internal / G3/8-F | 312 N | 254 N | 1.Y13035 | HOLD |
| SAOF-140x70-G3/8IG | 1.Y13037 | Internal / G3/8-F | 425 N | 344 N | 1.Y13037 | HOLD |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog page 302: SAOF*

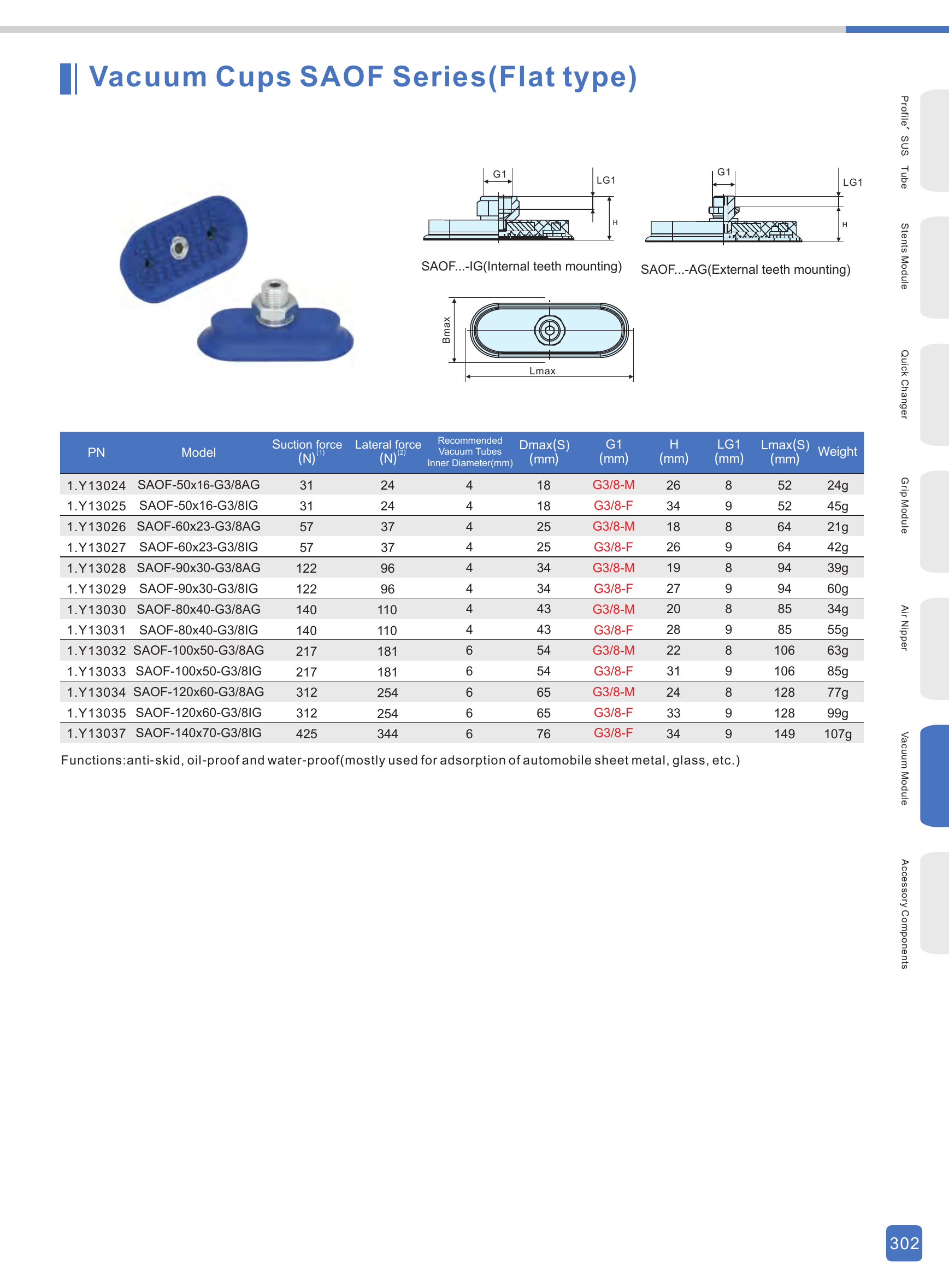

Original Technical Sheet - SAOF Flat Oval Cups
