Product features
- Complete frozen sourceModelSet
- Multi-port and side-manifold blocks
- Extension-tube variants
- Per-spread technical applicability
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
Pneumatic Components, Hoses & Fittings
Manifold Blocks
SMB manifold blocks and SMBY extension tubes for distributing pneumatic or vacuum lines across modular EOAT assemblies.
Frozen ID
PP-MF-02
Series
SMB / SMBY
Models
34 confirmed models
Source
Catalog 029-036
Model, PN and application context confirmed during inquiry.
Draft review note: Partial PN coverage; unverified PN remains blank.
Overview
Understand the SMB / SMBY product family
SMB manifold blocks and SMBY extension tubes for distributing pneumatic or vacuum lines across modular EOAT assemblies.
Selection approach
Select SMB block or SMBY extension tube, then confirm port layout, thread and dimensions from the applicable engineering sheet.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare SMB / SMBY Models
Select SMB block or SMBY extension tube, then confirm port layout, thread and dimensions from the applicable engineering sheet.
| Model | PN | Family | Type | PN status | Status |
|---|---|---|---|---|---|
| SMB-10M5-02G18 | 7.Y00153 | SMB | Manifold block | Verified | Confirmed |
| SMB-08M5-02G18 | 7.Y00154 | SMB | Manifold block | Verified | Confirmed |
| SMB-06M5 | 7.Y00157 | SMB | Manifold block | Verified | Confirmed |
| SMB-08M5 | 7.Y00156 | SMB | Manifold block | Verified | Confirmed |
| SMB-10M5 | 7.Y00155 | SMB | Manifold block | Verified | Confirmed |
| SMB-14M5 | 7.Y00167 | SMB | Manifold block | Verified | Confirmed |
| SMB-5G18 | 7.Y00229 | SMB | Manifold block | Verified | Confirmed |
| SMB1-5G18 | 7.Y01020 | SMB | Manifold block | Verified | Confirmed |
| SMB2-5G18 | 7.Y01022 | SMB | Manifold block | Verified | Confirmed |
| SMB-9G18 | 7.Y00231 | SMB | Manifold block | Verified | Confirmed |
| SMB1-9G18 | 7.Y01021 | SMB | Manifold block | Verified | Confirmed |
| SMB2-9G18 | 7.Y01023 | SMB | Manifold block | Verified | Confirmed |
| SMB1-D5G18 | 7.Y01024 | SMB | Manifold block | Verified | Confirmed |
| SMB2-D5G18 | 7.Y01025 | SMB | Manifold block | Verified | Confirmed |
| SMB-D5G18 | 7.Y00230 | SMB | Manifold block | Verified | Confirmed |
| SMB-A5G14 | 7.Y00241 | SMB | Manifold block | Verified | Confirmed |
| SMB-A5G18 | 7.Y00240 | SMB | Manifold block | Verified | Confirmed |
| SMBY-1050M5 | 7.Y02063 | SMBY | Extension tube | Verified | Confirmed |
| SMBY-1095M5 | 7.Y02064 | SMBY | Extension tube | Verified | Confirmed |
| SMBY-1452G18 | 7.Y02065 | SMBY | Extension tube | Verified | Confirmed |
| SMBY-1497G18 | 7.Y02066 | SMBY | Extension tube | Verified | Confirmed |
| SMBY-2053G14 | 7.Y02067 | SMBY | Extension tube | Verified | Confirmed |
| SMBY-2098G14 | 7.Y02068 | SMBY | Extension tube | Verified | Confirmed |
| SMBY12-50 | 7.Y00736 | SMBY | Extension tube | Verified | Confirmed |
| SMBY12-100 | 7.Y00735 | SMBY | Extension tube | Verified | Confirmed |
| SMBY14-50 | 7.Y00733 | SMBY | Extension tube | Verified | Confirmed |
| SMBY14-100 | 7.Y00734 | SMBY | Extension tube | Verified | Confirmed |
| SMBY20-50 | 7.Y00732 | SMBY | Extension tube | Verified | Confirmed |
| SMBY20-100 | 7.Y00731 | SMBY | Extension tube | Verified | Confirmed |
| SMBY20-150 | 7.Y00462 | SMBY | Extension tube | Verified | Confirmed |
| SMBY25-100 | 7.Y01027 | SMBY | Extension tube | Verified | Confirmed |
| SMBY30-50 | 7.Y00729 | SMBY | Extension tube | Verified | Confirmed |
| SMBY30-100 | 7.Y00730 | SMBY | Extension tube | Verified | Confirmed |
| SMBY30-150 | 7.Y00463 | SMBY | Extension tube | Verified | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 029-030: SMB-10M5-02G18, SMB-08M5-02G18, SMB-06M5, SMB-08M5, SMB-10M5, SMB-14M5
Catalog pages 031-032: SMB-5G18, SMB1-5G18, SMB2-5G18, SMB-9G18, SMB1-9G18, SMB2-9G18
Catalog pages 033-034: SMB1-D5G18, SMB2-D5G18, SMB-D5G18, SMB-A5G14, SMB-A5G18
Catalog pages 035-036: SMBY-1050M5, SMBY-1095M5, SMBY-1452G18, SMBY-1497G18, SMBY-2053G14, SMBY-2098G14, SMBY12-50, SMBY12-100, SMBY14-50, SMBY14-100, SMBY20-50, SMBY20-100, SMBY20-150, SMBY25-100, SMBY30-50, SMBY30-100, SMBY30-150

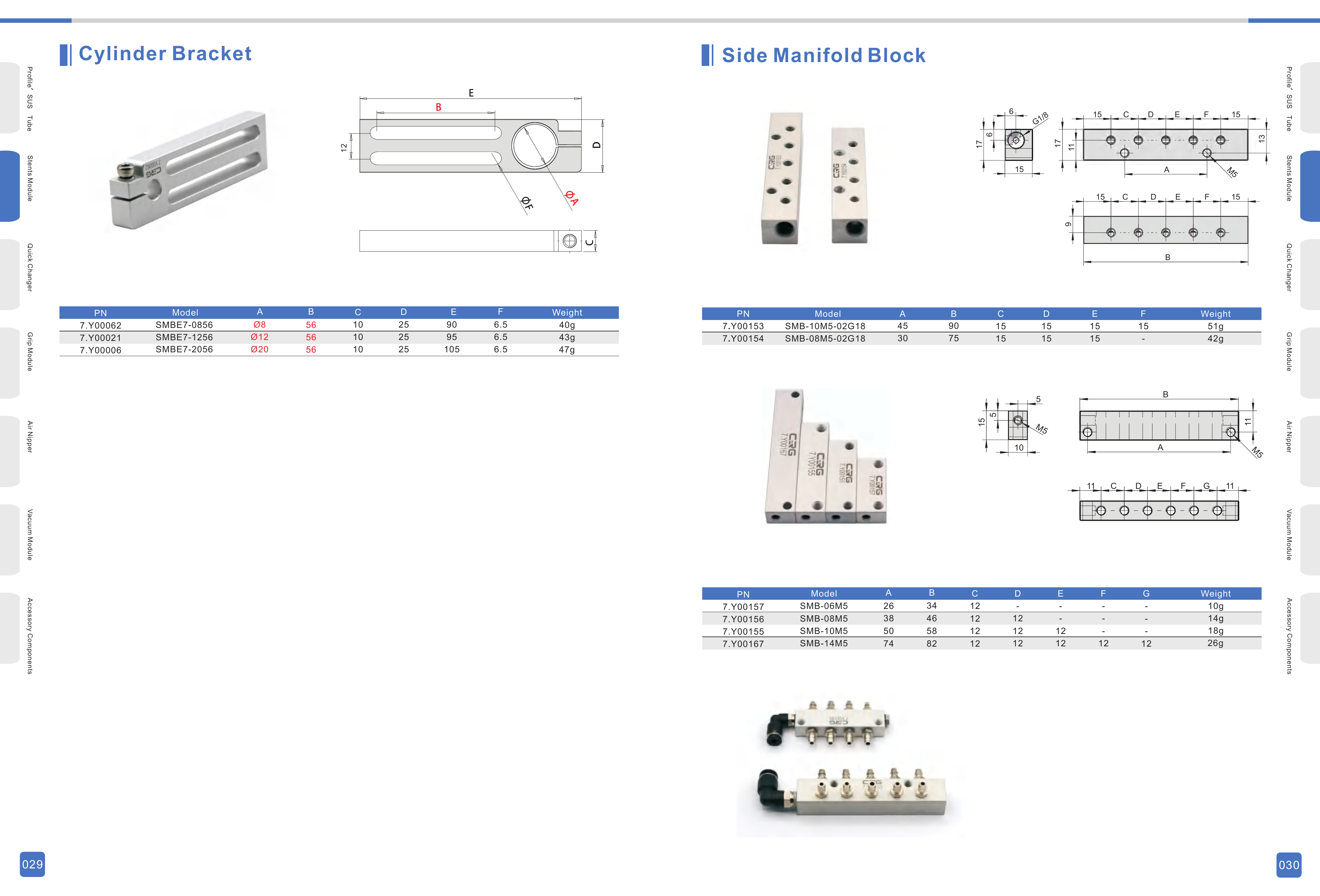

Original Technical Sheet 1 — M5 Manifold Blocks
Engineering dimensions, model references and selection data from the reviewed Catalog source. · Catalog pages 029-030
High-resolution web preview · Catalog pages 029-030

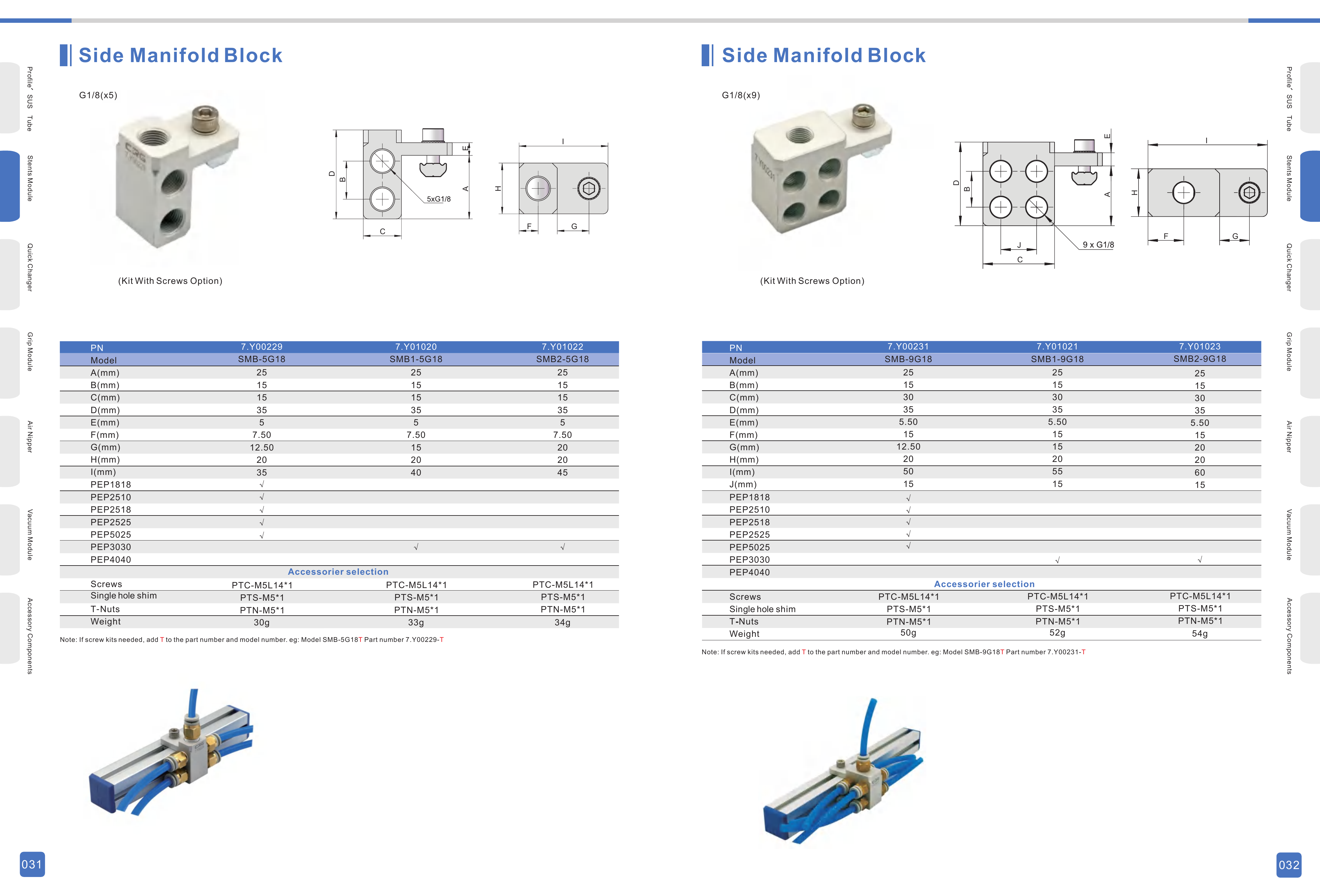

Original Technical Sheet 2 — Side Manifold Blocks
Engineering dimensions, model references and selection data from the reviewed Catalog source. · Catalog pages 031-032
High-resolution web preview · Catalog pages 031-032

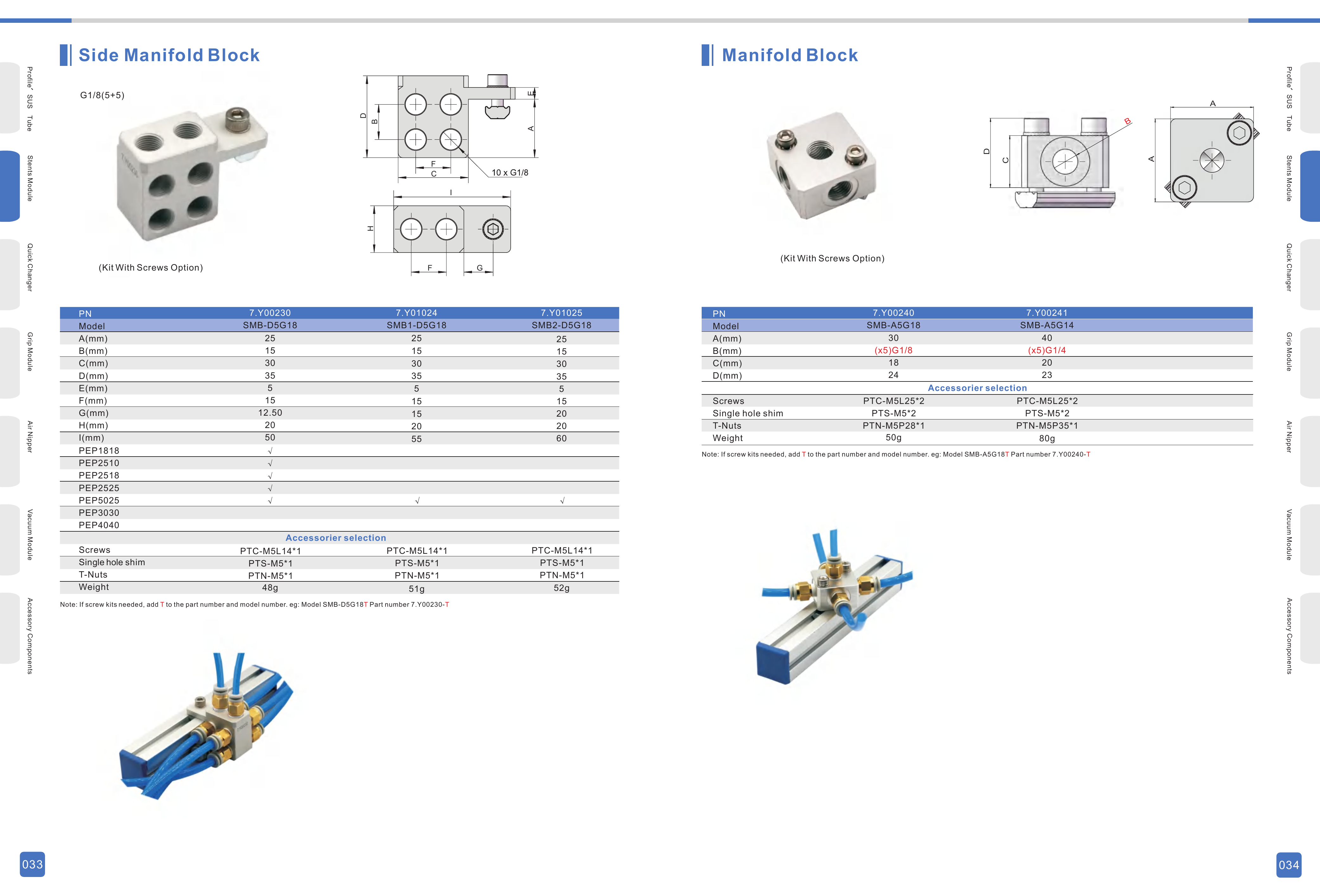

Original Technical Sheet 3 — Double-Side and A-Series Blocks
Engineering dimensions, model references and selection data from the reviewed Catalog source. · Catalog pages 033-034
High-resolution web preview · Catalog pages 033-034

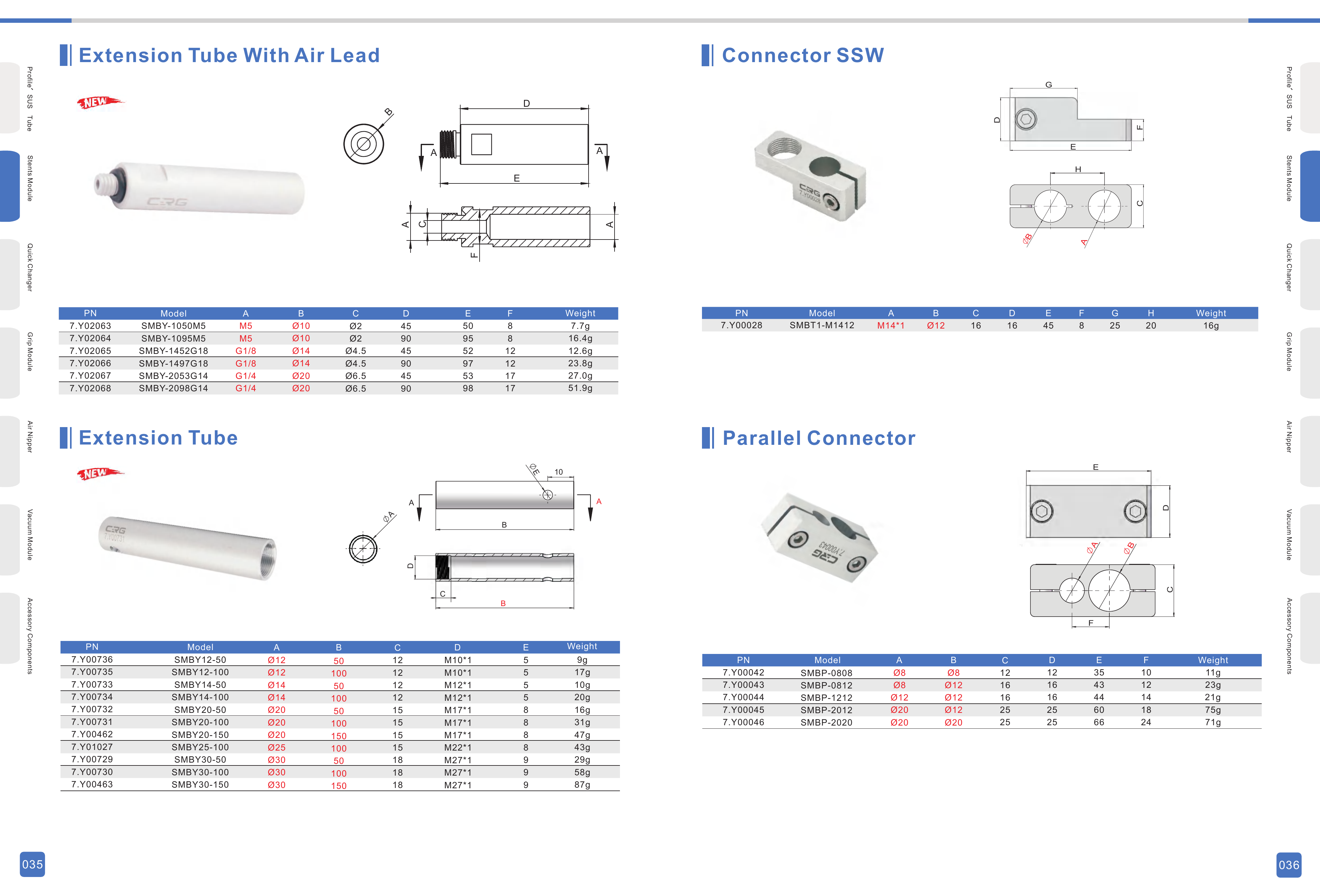

Original Technical Sheet 4 — SMBY Extension Tubes
Engineering dimensions, model references and selection data from the reviewed Catalog source. · Catalog pages 035-036
High-resolution web preview · Catalog pages 035-036
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- The SMBT connector shown on Printed Page 036 is outside PP-MF-02 and is not included in its Model Guide.
- PN remains blank only where it was not directly verified.
