Square Manual Quick Changer
A QCS-160 square manual quick changer pair with matching robot-side and gripper-side plates for modular EOAT systems.
Series
QCS-160
Components
Robot side / Gripper side
Load reference
800 N
Source
Catalog page 177
Model, PN and application context confirmed during inquiry.
Overview
Understand the QCS-160 product family
A QCS-160 square manual quick changer pair with matching robot-side and gripper-side plates for modular EOAT systems.
Selection approach
Select QCS-R160 for the robot side and QCS-G160 for the gripper side. Use the two components as a matched QCS-160 pair and confirm mounting, pneumatic connections and application load before quotation.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare QCS-160 Models
Select QCS-R160 for the robot side and QCS-G160 for the gripper side. Use the two components as a matched QCS-160 pair and confirm mounting, pneumatic connections and application load before quotation.
| Model | PN | Role | Load reference | Weight | Status |
|---|---|---|---|---|---|
| QCS-R160 | 7.Y00160 | Robot side | 800 N | 1198 g | Confirmed |
| QCS-G160 | 7.Y00161 | Gripper side | 800 N | 634 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog page 177: QCS-R160, QCS-G160

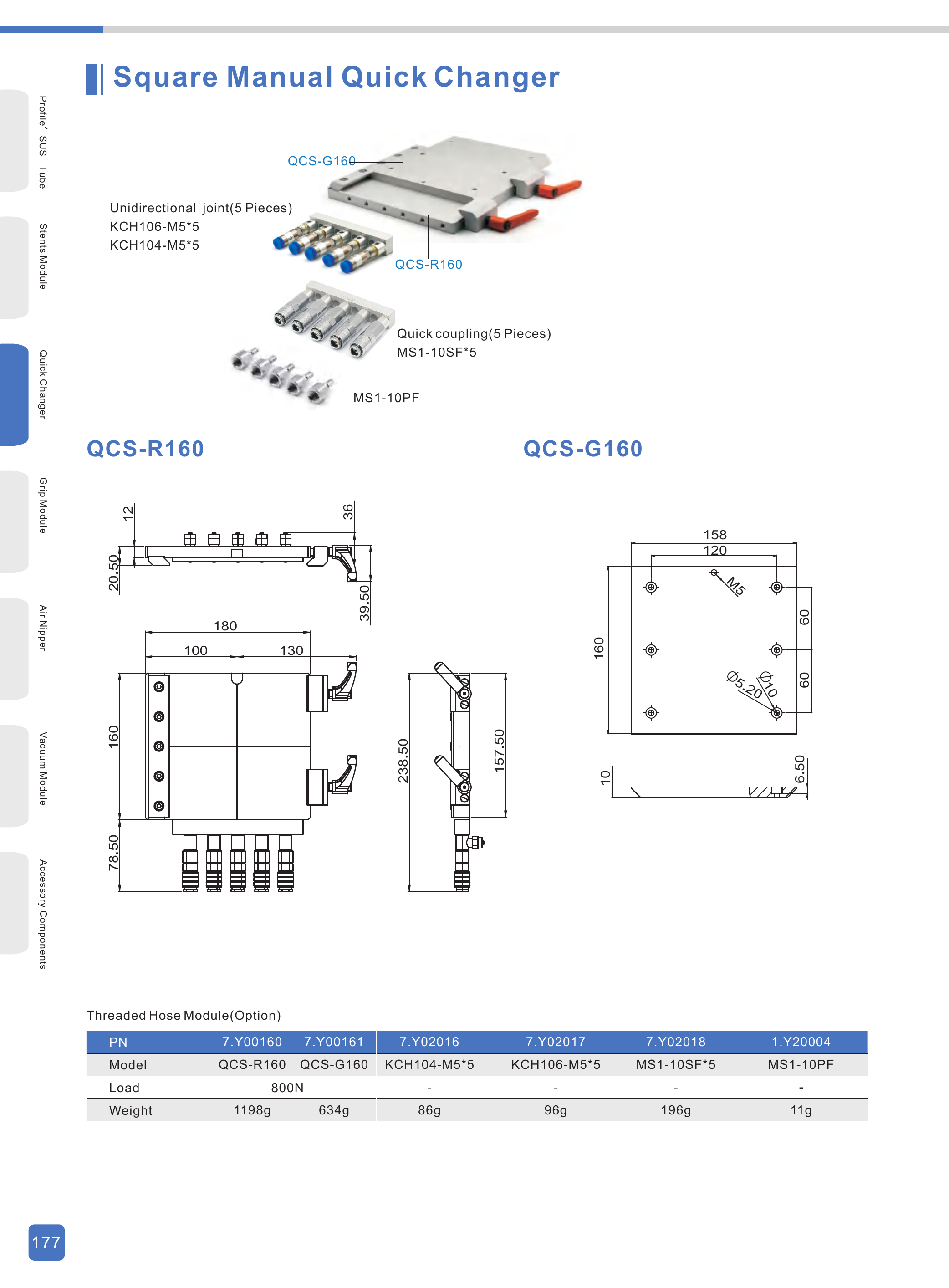

Original Technical Sheet — QCS-160
QCS-R160 and QCS-G160 models, PNs, dimensions, load, weight and connection options · Catalog page 177
High-resolution web preview · Catalog page 177
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- QCS-R160 and QCS-G160 are the only Product Models in this frozen Product Record.
- Optional threaded hose and quick-coupling components shown on the source sheet are engineering references and are not added as Product Models.
