EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Tool Changers
QCAM Pneumatic Modules
Eighteen approved QCAM pneumatic module models with catalog-confirmed PN values retained where explicit.
Series
QCAM
Models
18 source-confirmed
Source
Catalog 135-140
Model, PN and application context confirmed during inquiry.
Configuration confirmation: Some configuration details require confirmation before ordering. Review the engineering references and ask about the available options; unconfirmed selections remain restricted.
Overview
Understand the QCAM product family
Eighteen approved QCAM pneumatic module models with catalog-confirmed PN values retained where explicit.
Selection approach
Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare QCAM Models
Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.
| Model | PN | Scope | Source evidence | Status |
|---|---|---|---|---|
| QCAM-03R | Confirm by material / quotation | Robot side | Approved frozen model; PN inquiry-confirmed | HOLD |
| QCAM-03G | Confirm by material / quotation | Gripper side | Approved frozen model; PN inquiry-confirmed | HOLD |
| QCAM-08G38G | 7.Y02052 | Gripper side | Catalog-explicit PN | Confirmed |
| QCAM-06G18R | 7.Y01015 | Robot side | Pages 135-136 | Confirmed |
| QCAM-06G18G | 7.Y01016 | Gripper side | Pages 135-136 | Confirmed |
| QCAM-06G18R-E | 7.Y01018 | Robot side | Pages 135-136 | Confirmed |
| QCAM-10M5R | 7.Y01053 | Robot side | Pages 137-138 | Confirmed |
| QCAM-14M5R | 7.Y01055 | Robot side | Pages 139-140 | Confirmed |
| QCAM-04G38R7 | Confirm by material / quotation | Robot side | Approved frozen model; PN inquiry-confirmed | HOLD |
| QCAM-10M5G | 7.Y01054 | Gripper side | Pages 137-138 | Confirmed |
| QCAM-14M5G | 7.Y01056 | Gripper side | Pages 139-140 | Confirmed |
| QCAM-04G38G7 | Confirm by material / quotation | Gripper side | Approved frozen model; PN inquiry-confirmed | HOLD |
| QCAM-06G18R-F | 7.Y02005 | Robot side / self-sealing | Pages 137-138 | Confirmed |
| QCAM-06G18G-E | 7.Y01019 | Gripper side | Pages 135-136 | Confirmed |
| QCAM-06G18G-F | 7.Y02006 | Gripper side / self-sealing | Pages 137-138 | Confirmed |
| QCAM-04G38R | 7.Y02043 | Robot side | Pages 139-140 | Confirmed |
| QCAM-04G38G | 7.Y02044 | Gripper side | Pages 139-140 | Confirmed |
| QCAM-08G38R | 7.Y02051 | Robot side | Catalog-explicit PN | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Review the engineering sheets for the selected model. Confirm dimensions, connections and the applicable configuration before quotation.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog 135-140: QCAM-06G18R, QCAM-06G18G, QCAM-06G18R-E, QCAM-06G18G-E
Catalog 135-140: QCAM-06G18R-F, QCAM-06G18G-F, QCAM-10M5R, QCAM-10M5G
Catalog 135-140: QCAM-14M5R, QCAM-14M5G, QCAM-04G38R, QCAM-04G38G

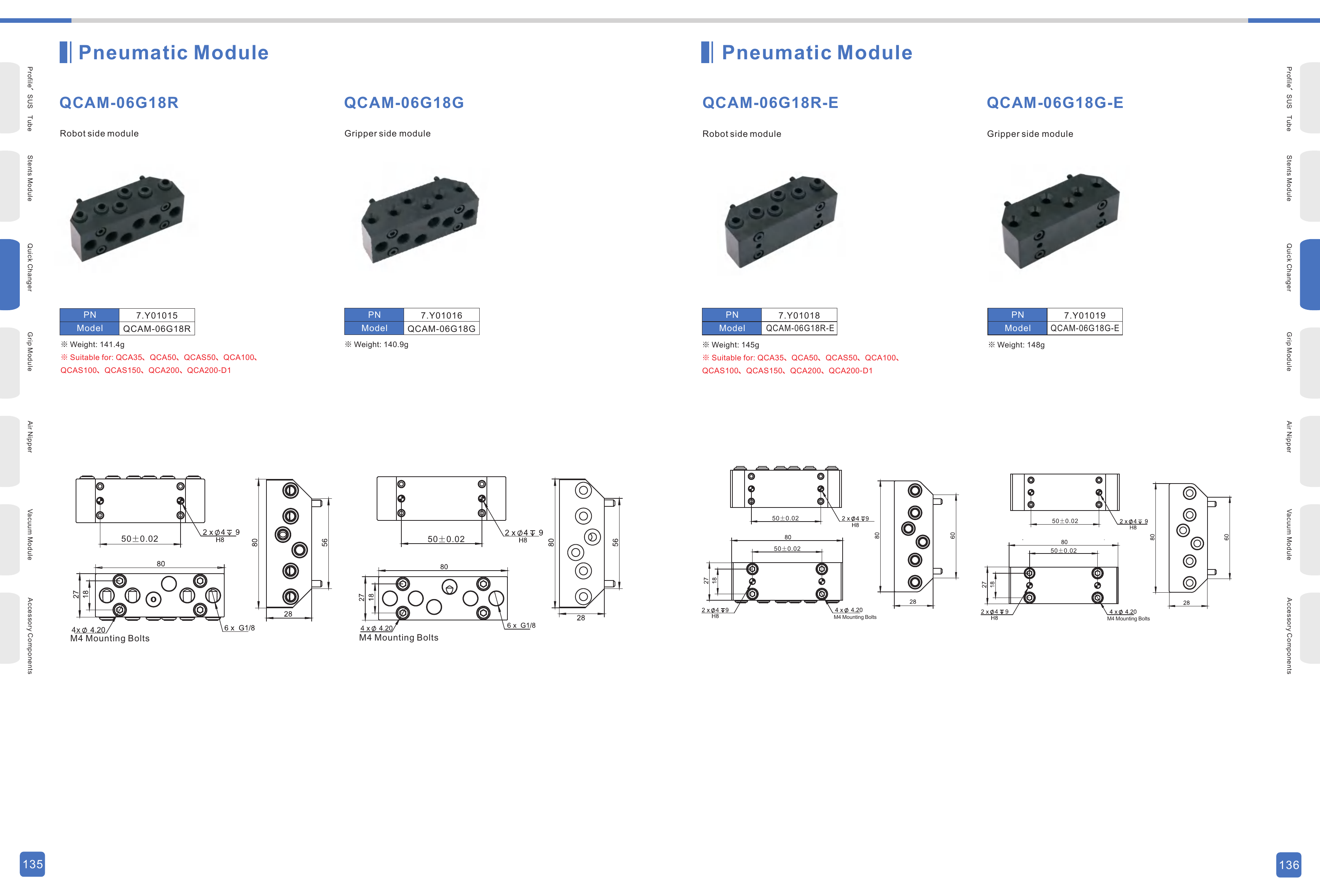

Original Technical Sheet - Pages 135-136
Catalog-confirmed models, PNs and technical details · Catalog 135-140
High-resolution web preview · Catalog 135-140

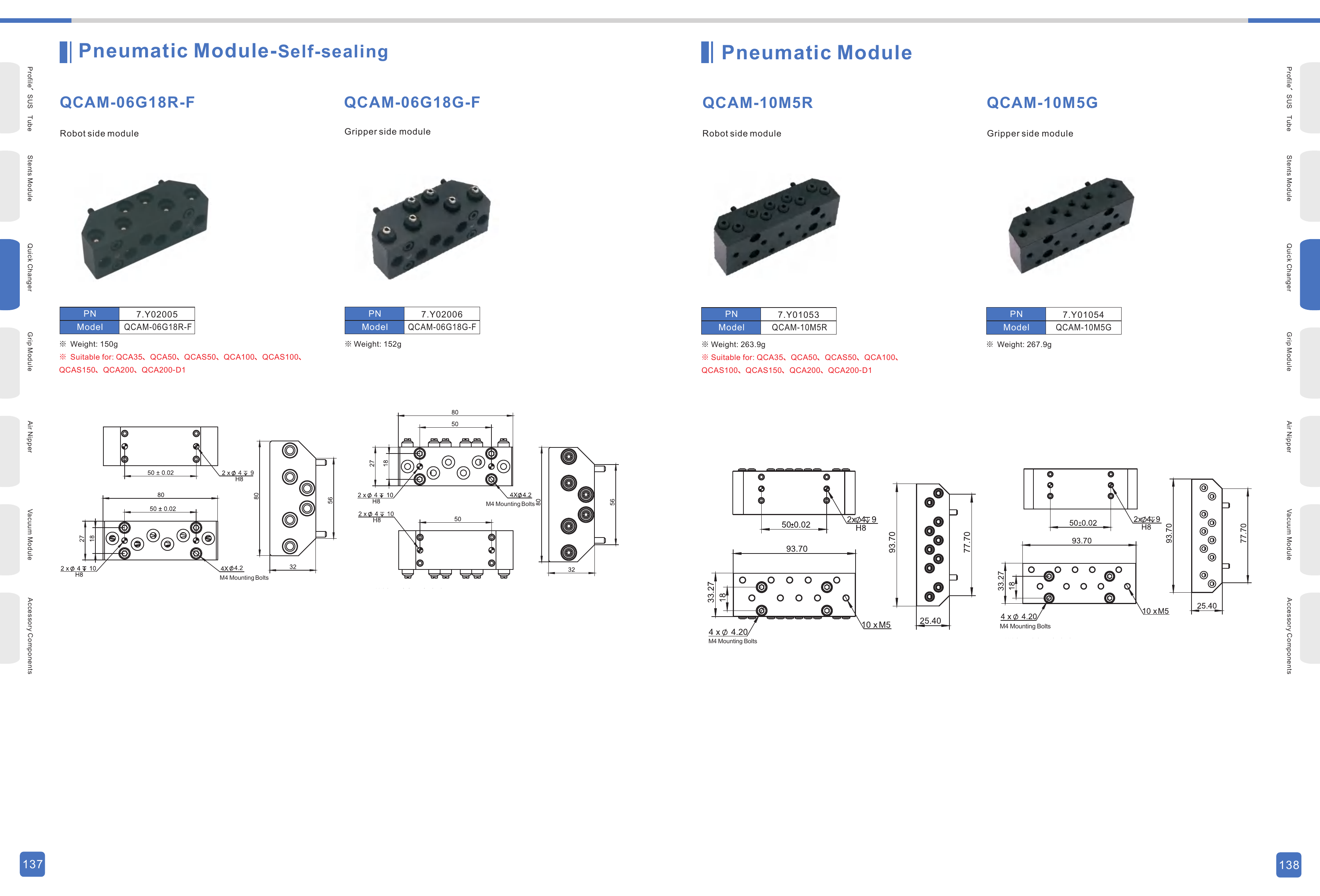

Original Technical Sheet - Pages 137-138
Catalog-confirmed models, PNs and technical details · Catalog 135-140
High-resolution web preview · Catalog 135-140

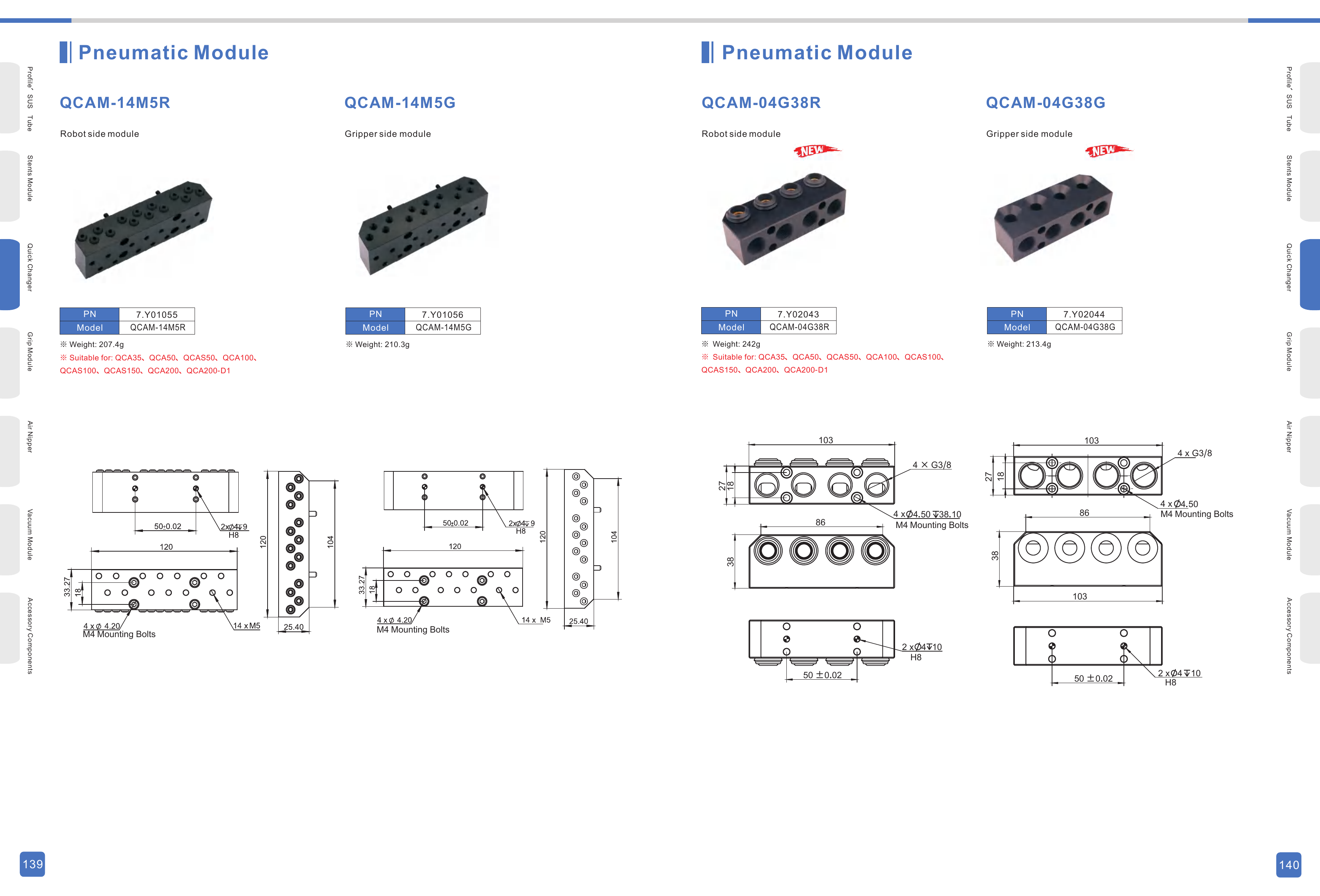

Original Technical Sheet - Pages 139-140
Catalog-confirmed models, PNs and technical details · Catalog 135-140
High-resolution web preview · Catalog 135-140
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Engineering references cover Printed Pages 135-140.
- Pages 117-118 and all other QCA assets are excluded.
- QCAM-03R, QCAM-03G, QCAM-04G38R7 and QCAM-04G38G7 retain blank PN under approved inquiry-confirmed governance.
