EOAT Tool Changers
Compact Manual Tool Changers
Compact L-type manual tool changers with matched robot-side and gripper-side components for 15 kg and 35 kg load classes.
Series
QCL15 / QCL35
Sides
Robot / Gripper
Load class
15 / 35 kg
Source
Catalog 179-180
Model, PN and application context confirmed during inquiry.
Overview
Understand the QCL15 / QCL35 product family
Compact L-type manual tool changers with matched robot-side and gripper-side components for 15 kg and 35 kg load classes.
Selection approach
Choose QCL15 or QCL35 by application load, then pair the R robot-side and G gripper-side components from the same family.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare QCL15 / QCL35 Models
Choose QCL15 or QCL35 by application load, then pair the R robot-side and G gripper-side components from the same family.
| Model | PN | Role | Load class | Weight | Status |
|---|---|---|---|---|---|
| QCL15R-S | 8.Y00236 | Robot side | ~15 kg | 190 g | Confirmed |
| QCL15G-S | 8.Y00235 | Gripper side | ~15 kg | 197 g | Confirmed |
| QCL35R-S | 8.Y00101 | Robot side | ~35 kg | 505 g | Confirmed |
| QCL35G-S | 8.Y00102 | Gripper side | ~35 kg | 565 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 179-180: QCL15*, QCL35*

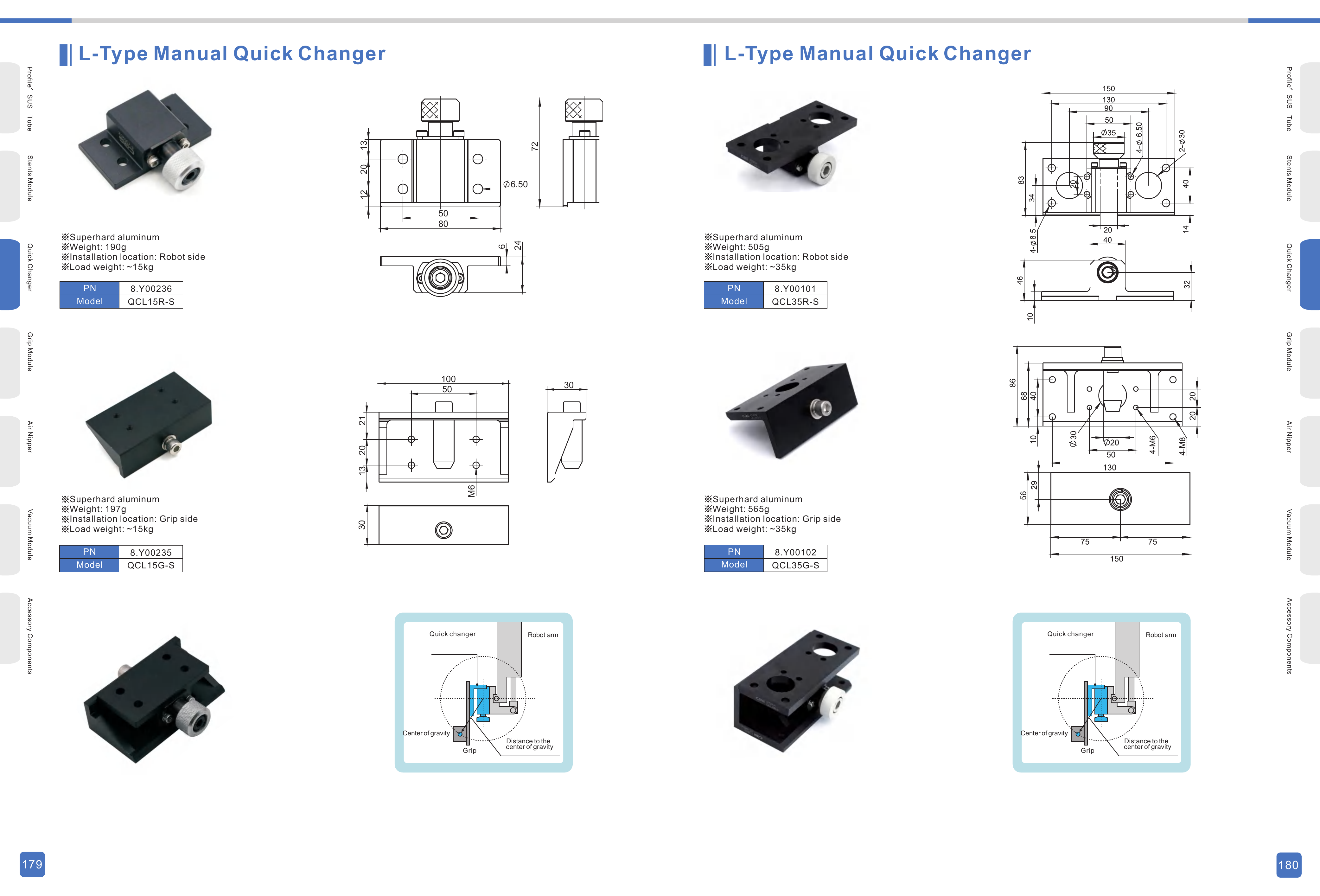

Original Technical Sheet - QCL15 / QCL35

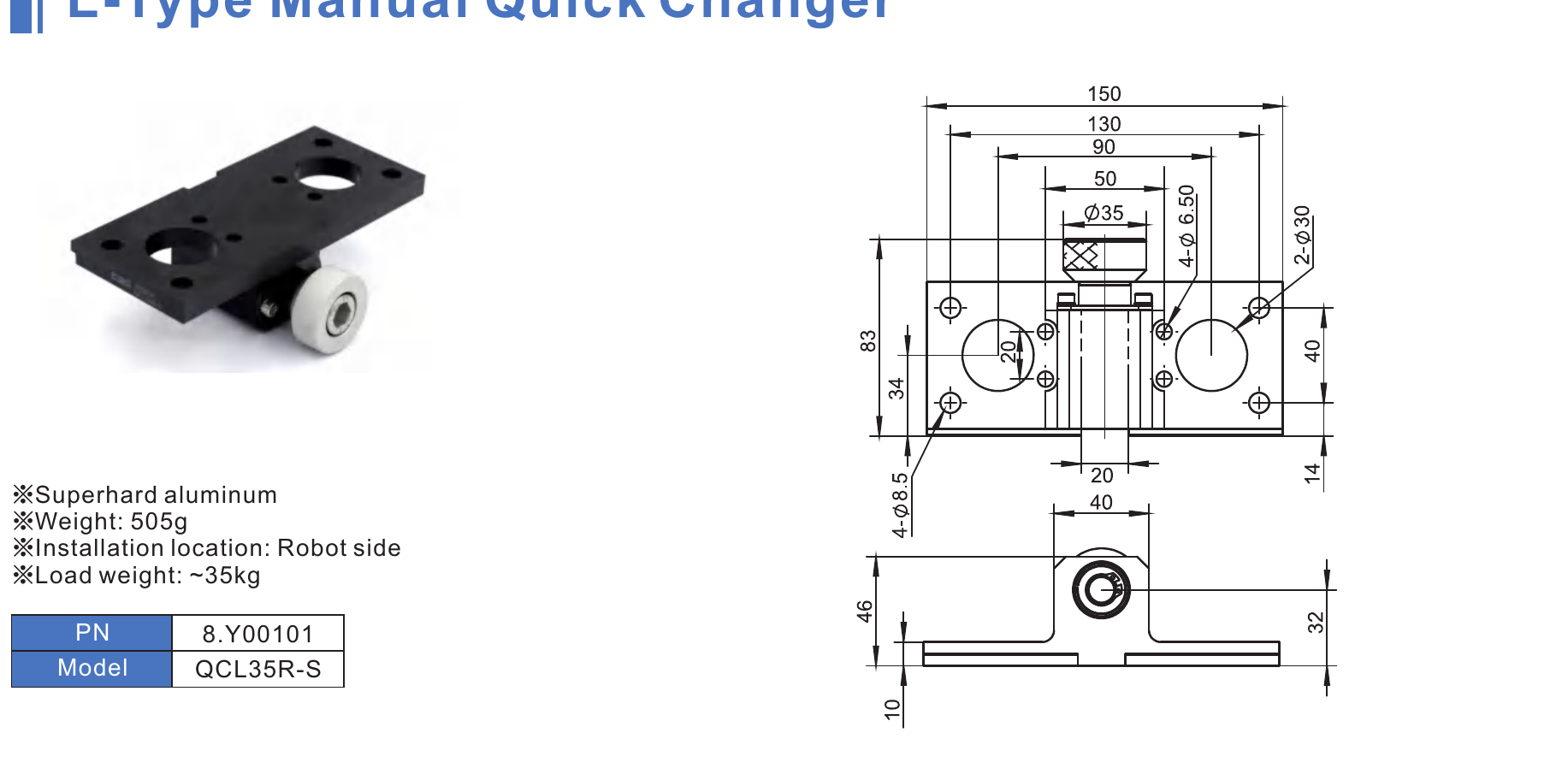

Models, sides, load classes, weights and dimensions · Catalog pages 179-180
High-resolution web preview · Catalog pages 179-180
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Robot-side and gripper-side components must be matched within the same QCL size.
- Confirm dynamic load, center of gravity and safety factor before selection.
