Product features
- Stainless steel tube construction
- Three source-verified PST models
- Diameter-specific wall thickness and weight
- Source-scoped end-cap references
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Sus Tube
PST stainless steel tubes for EOAT frames, available in three source-verified diameters with a standard 1500 mm length.
Series
PST
Models
3 source-verified
Length
1500 mm
Source
Catalog page 001, PST section
Model, PN and application context confirmed during inquiry.
Overview
Understand the PST product family
PST stainless steel tubes for EOAT frames, available in three source-verified diameters with a standard 1500 mm length.
Selection approach
Select PST8-1500, PST12-1500 or PST20-1500 by tube diameter, then confirm the source-scoped end-cap option for the selected diameter.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PST Models
Select PST8-1500, PST12-1500 or PST20-1500 by tube diameter, then confirm the source-scoped end-cap option for the selected diameter.
| Model | PN | Diameter | Length | Thickness | Weight | Status |
|---|---|---|---|---|---|---|
| PST8-1500 | 4.Y00040 | Ø8 | 1500 mm | 0.6 mm | 215 g | Confirmed |
| PST12-1500 | 4.Y00021 | Ø12 | 1500 mm | 0.6 mm | 339 g | Confirmed |
| PST20-1500 | 4.Y00022 | Ø20 | 1500 mm | 0.8 mm | 560 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog page 001, PST section only: PST*

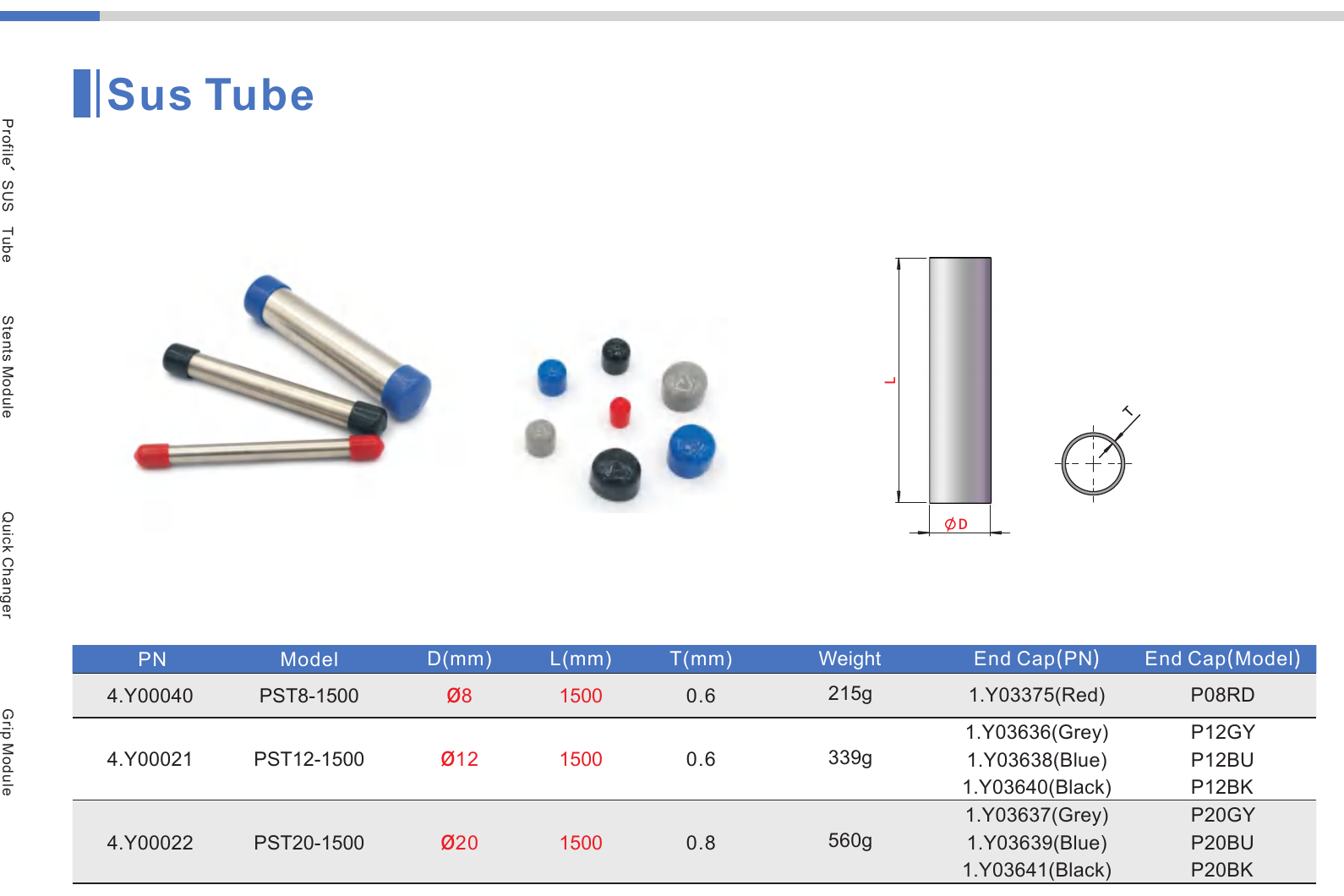

Original Technical Sheet - PST Sus Tube
PST models, PNs, diameters, lengths, wall thicknesses, weights and end-cap references · Catalog page 001, PST section only
High-resolution web preview · Catalog page 001, PST section only
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Only the Printed Page 001 PST region is bound to PP-001; PCT and PAT content is excluded.
- End-cap options remain diameter-scoped as shown in the source technical sheet.
- Confirm application loads and frame design before final selection.
