EOAT Mounting Components
Sensor Brackets and Joint Components
Catalog-confirmed suction, sensor, chuck and joint brackets for EOAT mounting assemblies.
Frozen ID
PP-MF-04
Series
SMBG / SMBJ / SMBT5 / SMBT6
Models
10 confirmed
Source
Catalog 042-044
Model, PN and application context confirmed during inquiry.
Overview
Understand the SMBG / SMBJ / SMBT5 / SMBT6 product family
Catalog-confirmed suction, sensor, chuck and joint brackets for EOAT mounting assemblies.
Selection approach
Select the required family and model, then verify dimensions on the applicable technical sheet before quotation.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare SMBG / SMBJ / SMBT5 / SMBT6 Models
Select the required family and model, then verify dimensions on the applicable technical sheet before quotation.
| Model | PN | Family | Source status | Status |
|---|---|---|---|---|
| SMBG1-8M5 | 7.Y00057 | SMBG1 | Catalog-confirmed | Confirmed |
| SMBG1-8M6 | 7.Y00058 | SMBG1 | Catalog-confirmed | Confirmed |
| SMBG1-12M5 | 7.Y00059 | SMBG1 | Catalog-confirmed | Confirmed |
| SMBG1-12M6 | 7.Y00060 | SMBG1 | Catalog-confirmed | Confirmed |
| SMBG1-12G18 | 7.Y00061 | SMBG1 | Catalog-confirmed | Confirmed |
| SMBJ1-5 | 7.Y00070 | SMBJ1 | Catalog-confirmed | Confirmed |
| SMBJ2-6 | 7.Y00071 | SMBJ2 | Catalog-confirmed | Confirmed |
| SMBT5-8 | 7.Y00072 | SMBT5 | Catalog-confirmed | Confirmed |
| SMBT5-12 | 7.Y00073 | SMBT5 | Catalog-confirmed | Confirmed |
| SMBT6-12 | 7.Y00074 | SMBT6 | Catalog-confirmed | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Page 042, SMBG region only: SMBG*
Pages 043-044: SMBJ*, SMBT5*, SMBT6*

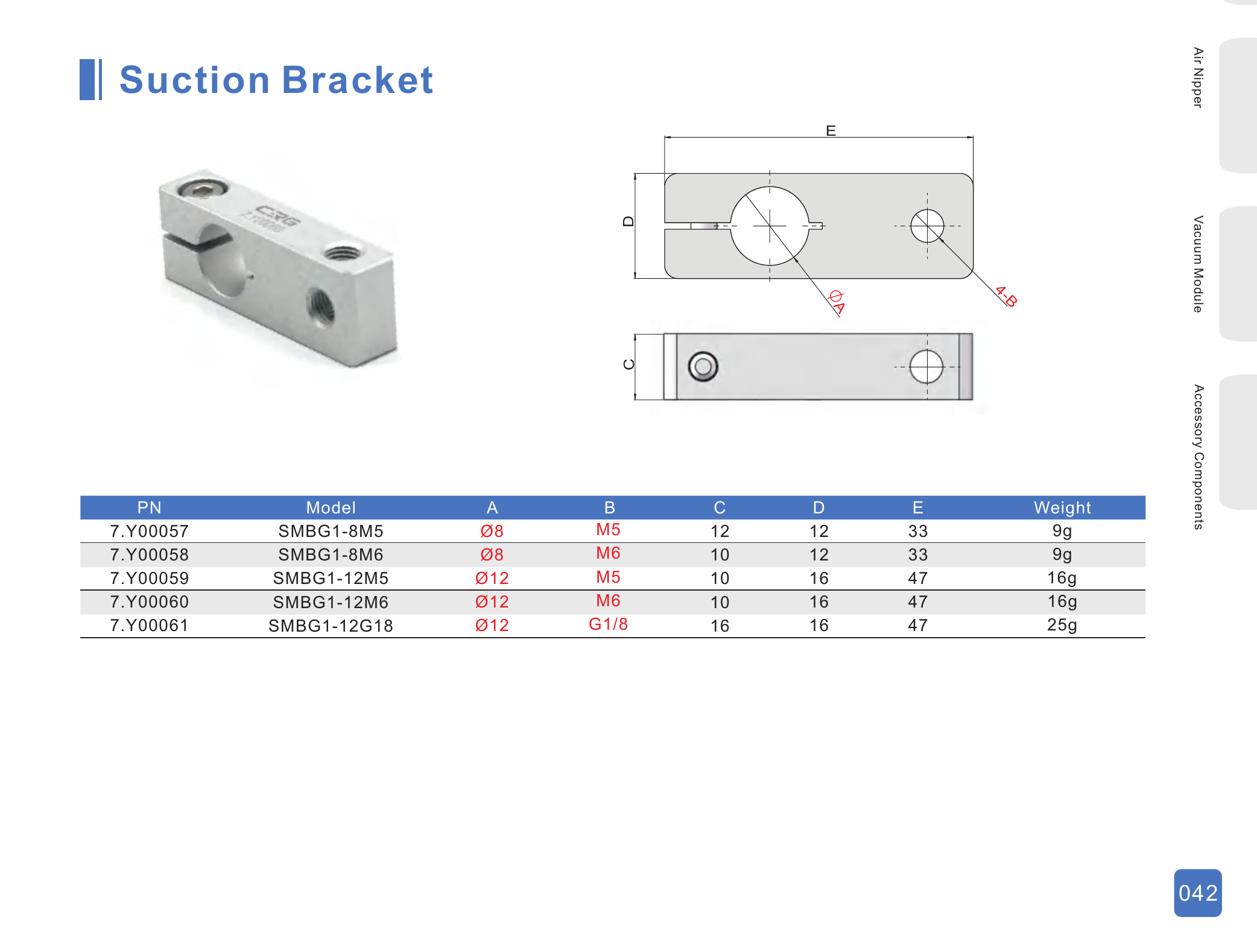

Suction Brackets - Page 042 region
Product-scoped catalog engineering reference. · Page 042, SMBG region only
High-resolution web preview · Page 042, SMBG region only

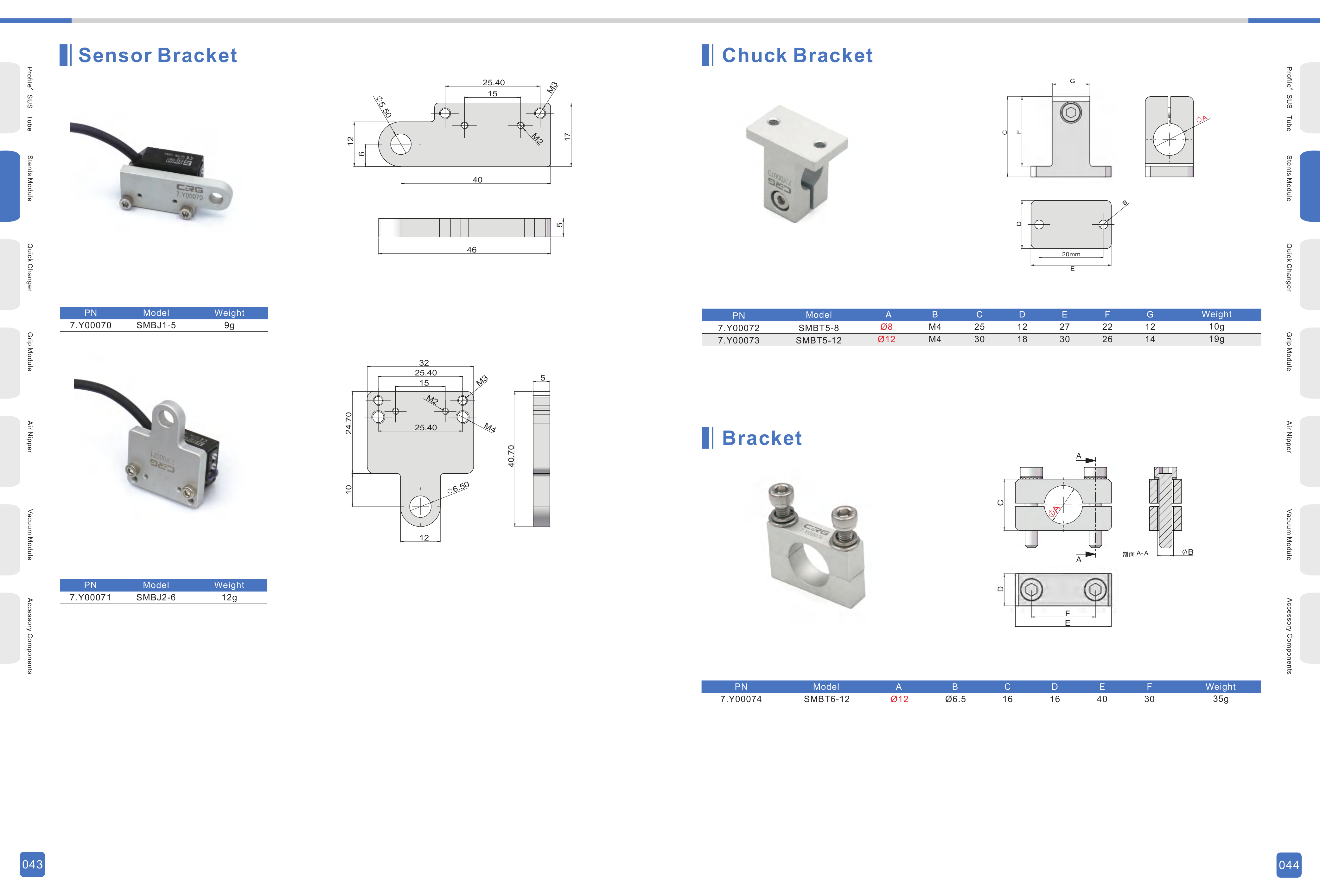

Sensor and Joint Brackets - Pages 043-044
Product-scoped catalog engineering reference. · Pages 043-044
High-resolution web preview · Pages 043-044
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Page 042 SMBT3 swing-block region is excluded and belongs to PP-MF-03.
- The source range was narrowly corrected from 043-044 to 042-044.
Product Inquiry
Ask about SMBG / SMBJ / SMBT5 / SMBT6
Choose a candidate model or leave the selection open. The RFQ context is generated from this product record and your current selection.
WhatsApp Inquiry
Discuss model, price and lead time
Request the EOAT Catalog
Receive an appropriate verified catalog
