EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Profile T-Nuts
PTN profile T-nuts and the catalog-confirmed last-minute nut range.
Series
PTN
Models
17 source-confirmed
Source
Catalog 005-006
Model, PN and application context confirmed during inquiry.
Overview
Understand the PTN product family
PTN profile T-nuts and the catalog-confirmed last-minute nut range.
Selection approach
Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PTN Models
Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.
| Model | PN | Scope | Source evidence | Status |
|---|---|---|---|---|
| PTN-M4 | 7.Y00651 | PTN | Pages 005-006 | Confirmed |
| PTN-M5 | 7.Y00425 | PTN | Pages 005-006 | Confirmed |
| PTN-M6 | 7.Y00652 | PTN | Pages 005-006 | Confirmed |
| PTN-M4P8 | 7.Y00653 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P10 | 7.Y00654 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P15 | 7.Y00655 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P17 | 7.Y00656 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P22 | 7.Y00657 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P25 | 7.Y00658 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P28 | 7.Y00659 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P30 | 7.Y00660 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P35 | 7.Y00661 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P40 | 7.Y00662 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P50 | 7.Y00663 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P60 | 7.Y00664 | PTN | Pages 005-006 | Confirmed |
| PTN-M5P90 | 7.Y00665 | PTN | Pages 005-006 | Confirmed |
| PTN-M5R | 7.Y00805 | PTN | Pages 005-006 | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Review the engineering sheets for the selected model. Confirm dimensions, connections and the applicable configuration before quotation.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog 005-006: PTN*

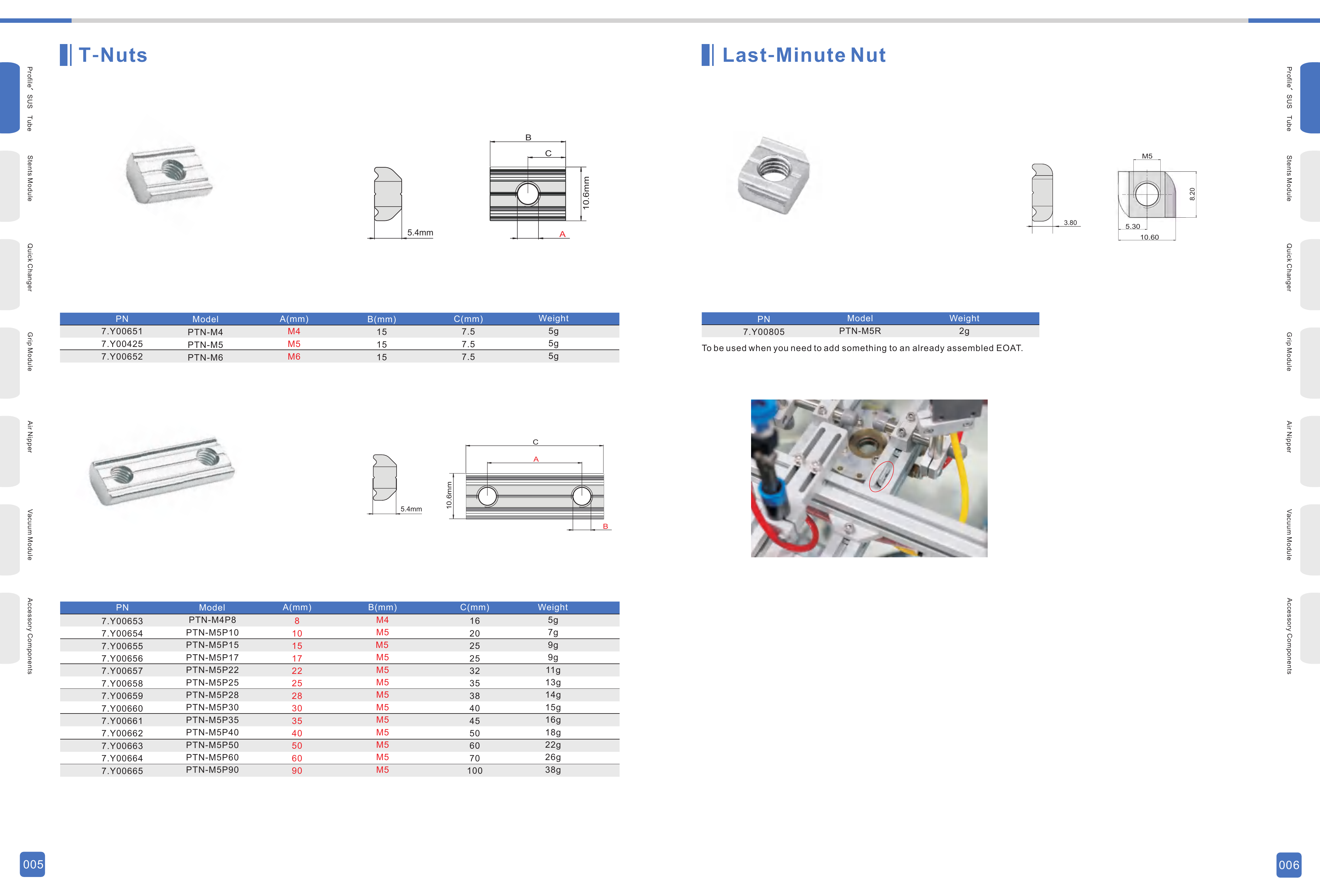

Original Technical Sheet - PTN T-Nuts
Catalog-confirmed models, PNs and technical details · Catalog 005-006
High-resolution web preview · Catalog 005-006
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Engineering references cover Printed Pages 005-006.
- PTC, PTS and PTD are excluded.
