EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Profile Screws and Shims
Stainless profile screws plus single-hole and double-hole shims for EOAT profile assemblies.
Frozen ID
PP-TN-01B
Series
PTC / PTS / PTD
Models
39 confirmed
Source
Catalog 007-008
Model, PN and application context confirmed during inquiry.
Overview
Understand the PTC / PTS / PTD product family
Stainless profile screws plus single-hole and double-hole shims for EOAT profile assemblies.
Selection approach
Select the required family and model, then verify dimensions on the applicable technical sheet before quotation.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PTC / PTS / PTD Models
Select the required family and model, then verify dimensions on the applicable technical sheet before quotation.
| Model | PN | Family | Source status | Status |
|---|---|---|---|---|
| PTC-M4L10 | 1.Y03908 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L12 | 1.Y03848 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L14 | 1.Y02752 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L16 | 1.Y04073 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L18 | 1.Y05846 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L20 | 1.Y04000 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L22 | 1.Y06307 | PTC | Catalog-confirmed | Confirmed |
| PTC-M4L25 | 1.Y05319 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L10 | 1.Y04294 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L12 | 1.Y03850 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L14 | 1.Y04528 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L16 | 1.Y03849 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L18 | 1.Y05925 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L20 | 1.Y03909 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L22 | 1.Y06257 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L25 | 1.Y03851 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L30 | 1.Y04469 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L35 | 1.Y04580 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L40 | 1.Y04898 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L50 | 1.Y04968 | PTC | Catalog-confirmed | Confirmed |
| PTC-M5L60 | 1.Y05391 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L10 | 1.Y04288 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L12 | 1.Y03910 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L14 | 1.Y04153 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L16 | 1.Y02753 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L18 | 1.Y07729 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L20 | 1.Y04076 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L25 | 1.Y06227 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L30 | 1.Y04001 | PTC | Catalog-confirmed | Confirmed |
| PTC-M6L35 | 1.Y03911 | PTC | Catalog-confirmed | Confirmed |
| PTS-M4 | 1.Y03853 | PTS | Catalog-confirmed | Confirmed |
| PTS-M5 | 1.Y03852 | PTS | Catalog-confirmed | Confirmed |
| PTS-M6 | 1.Y03854 | PTS | Catalog-confirmed | Confirmed |
| PTD-M4P8 | 4.Y00522 | PTD | Catalog-confirmed | Confirmed |
| PTD-M5P10 | 4.Y00523 | PTD | Catalog-confirmed | Confirmed |
| PTD-M5P15 | 4.Y00524 | PTD | Catalog-confirmed | Confirmed |
| PTD-M5P17 | 4.Y00525 | PTD | Catalog-confirmed | Confirmed |
| PTD-M5P22 | 4.Y00526 | PTD | Catalog-confirmed | Confirmed |
| PTD-M5P25 | 4.Y00527 | PTD | Catalog-confirmed | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Pages 007-008: PTC*, PTS*, PTD*

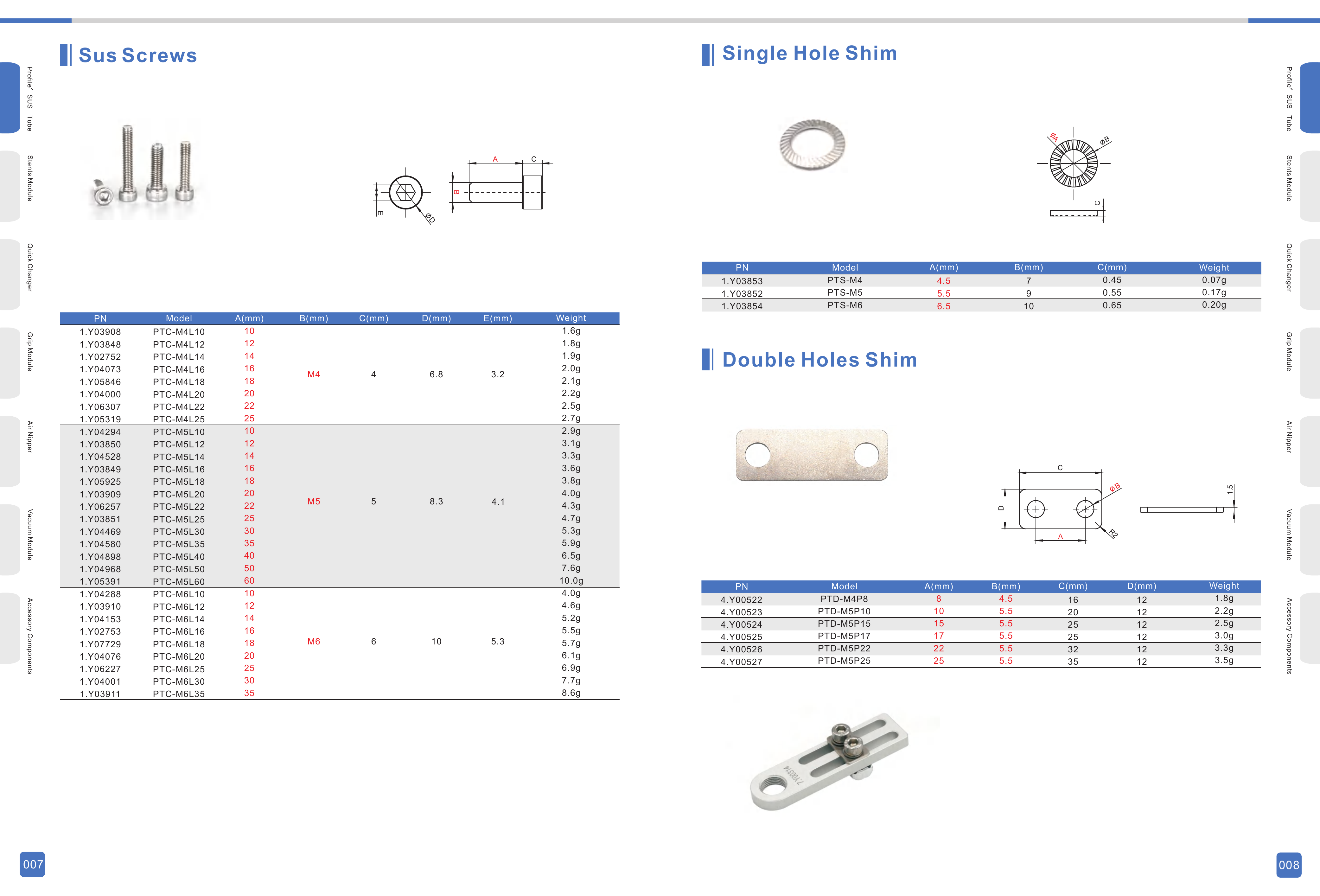

Profile Screws and Shims - Pages 007-008
Product-scoped catalog engineering reference. · Pages 007-008
High-resolution web preview · Pages 007-008
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- All displayed PTC, PTS and PTD part numbers are transcribed directly from Pages 007-008.
- No part number was inferred from naming patterns.
