Mould Positioners
GMP and GLU mould-positioning components for repeatable EOAT location and locking in automation applications.
Families
GMP / GLU
Sizes
14 / 20 / 30
Locking force
90-280 N
Source
Catalog 253-254
Model, PN and application context confirmed during inquiry.
Overview
Understand the GMP / GLU product family
GMP and GLU mould-positioning components for repeatable EOAT location and locking in automation applications.
Selection approach
Choose the size family and A or B positioning side, then verify mounting dimensions, locking force and the matching mould interface.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GMP / GLU Models
Choose the size family and A or B positioning side, then verify mounting dimensions, locking force and the matching mould interface.
| Model | PN | Type | Size | Locking / accuracy | Weight | Status |
|---|---|---|---|---|---|---|
| GMP14A | 8.Y00408 | A side | 14 | 90 N | 62 g | Confirmed |
| GMP20A | 8.Y00088 | A side | 20 | 190 N | 78 g | Confirmed |
| GMP30A | 8.Y00089 | A side | 30 | 280 N | 303 g | Confirmed |
| GMP14B | 7.Y00968 | B side | 14 | ±0.015 mm | 46 g | Confirmed |
| GMP20B | 7.Y00726 | B side | 20 | ±0.015 mm | 87 g | Confirmed |
| GMP30B | 7.Y00789 | B side | 30 | ±0.015 mm | 264 g | Confirmed |
| GLU20A | 7.Y00894 | GLU A | 20 | Dimensions reference | 61 g | Confirmed |
| GLU20B | 7.Y00895 | GLU B | 20 | Dimensions reference | 42 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 253-254: GMP*, GLU*

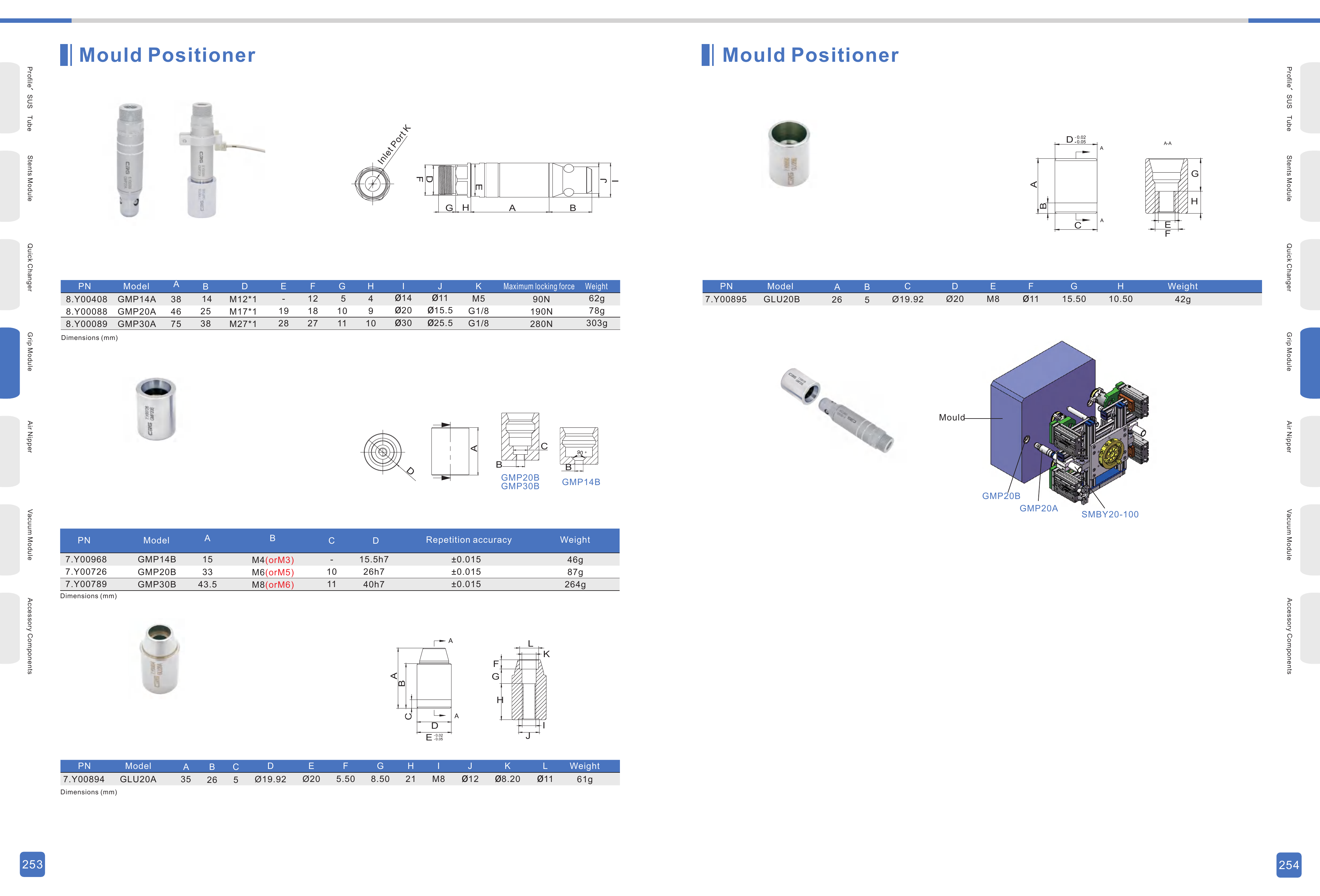

Original Technical Sheet - GMP / GLU Mould Positioners
Models, PNs, dimensions, locking force, accuracy and weights · Catalog pages 253-254

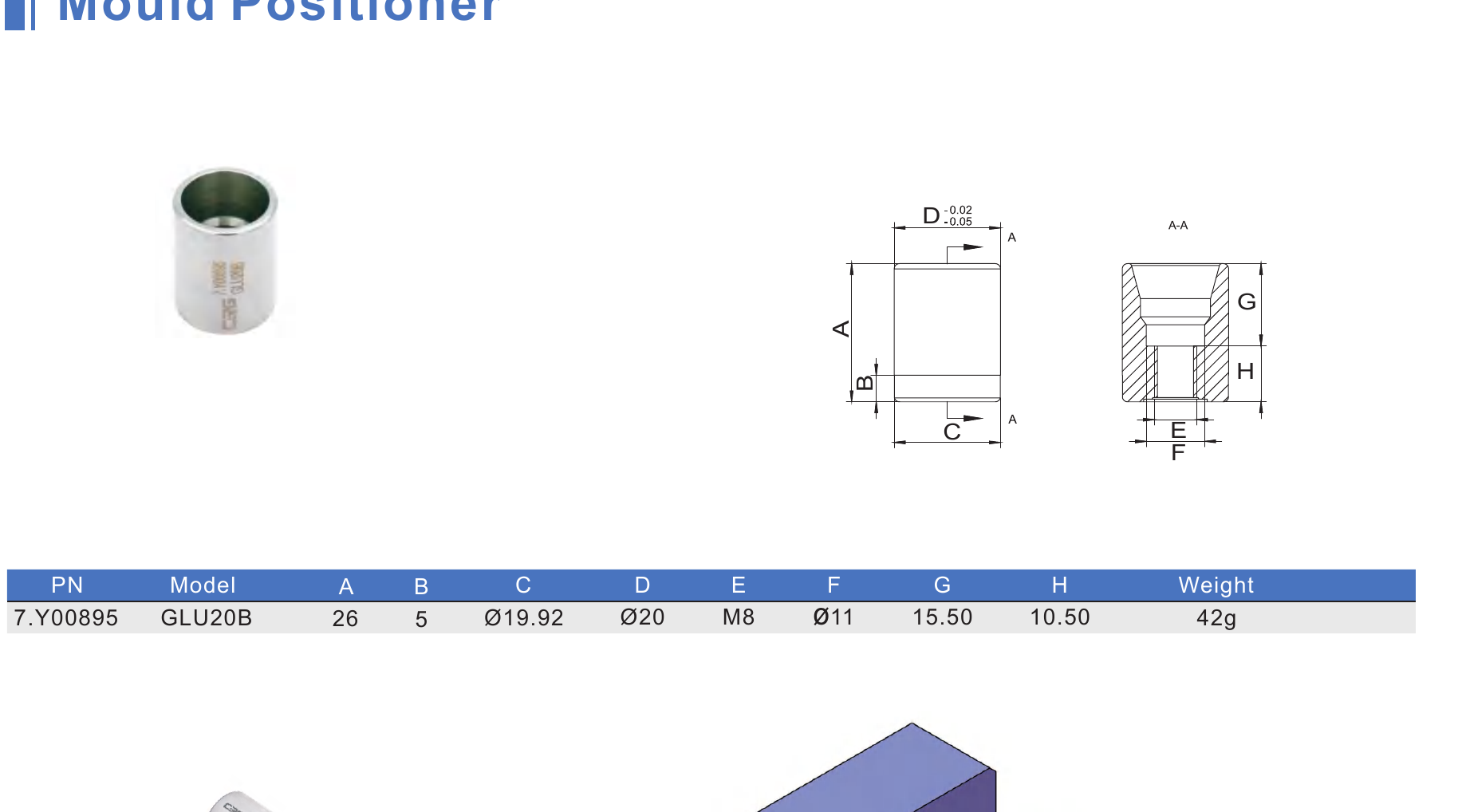

High-resolution web preview · Catalog pages 253-254
