EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Frame Joints and Supports
Catalog-confirmed swing blocks, cross connectors, T connectors and connection blocks for EOAT frames.
Frozen ID
PP-MF-03
Series
SMBT / SMBF / SCD
Models
41 confirmed
Source
Catalog 037-042
Model, PN and application context confirmed during inquiry.
Overview
Understand the SMBT / SMBF / SCD product family
Catalog-confirmed swing blocks, cross connectors, T connectors and connection blocks for EOAT frames.
Selection approach
Select the required family and model, then verify dimensions on the applicable technical sheet before quotation.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare SMBT / SMBF / SCD Models
Select the required family and model, then verify dimensions on the applicable technical sheet before quotation.
| Model | PN | Family | Source status | Status |
|---|---|---|---|---|
| SMBT4-G1820 | 7.Y00048 | SMBT4 | Catalog-confirmed | Confirmed |
| SMBT-1414 | 7.Y01002 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-2520 | 7.Y00998 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-2525 | 7.Y00999 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-0808 | 7.Y00025 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-1208 | 7.Y00026 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-1212 | 7.Y00020 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-1214 | 7.Y00794 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-2012 | 7.Y00027 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-2020 | 7.Y00005 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-4020 | 7.Y01059 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-4025 | 7.Y01004 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-4030 | 7.Y02058 | SMBT | Catalog-confirmed | Confirmed |
| SMBT-4040 | 7.Y01003 | SMBT | Catalog-confirmed | Confirmed |
| SMBT2-1212 | 7.Y00192 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT2-2020 | 7.Y00185 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT2-4040 | 7.Y02020 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT2-3030 | 7.Y02021 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT2-2525 | 7.Y02022 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT2-4025 | 7.Y02025 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT2-4020 | 7.Y02026 | SMBT2 | Catalog-confirmed | Confirmed |
| SMBT3-2020 | 7.Y00047 | SMBT3 | Catalog-confirmed | Confirmed |
| SMBF1-0808 | 7.Y00036 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF1-0812 | 7.Y00037 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF1-1208 | 7.Y00038 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF1-1212 | 7.Y00033 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF1-1220 | 7.Y00039 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF1-2012 | 7.Y00040 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF1-2020 | 7.Y00041 | SMBF1 | Catalog-confirmed | Confirmed |
| SMBF-0808 | 7.Y00029 | SMBF | Catalog-confirmed | Confirmed |
| SMBF-0812 | 7.Y00030 | SMBF | Catalog-confirmed | Confirmed |
| SMBF-1208 | 7.Y00031 | SMBF | Catalog-confirmed | Confirmed |
| SMBF-1212 | 7.Y00032 | SMBF | Catalog-confirmed | Confirmed |
| SMBF-1220 | 7.Y00033 | SMBF | Catalog-confirmed | Confirmed |
| SMBF-2012 | 7.Y00034 | SMBF | Catalog-confirmed | Confirmed |
| SMBF-2020 | 7.Y00035 | SMBF | Catalog-confirmed | Confirmed |
| SCD-2010 | 7.Y00329 | SCD | Catalog-confirmed | Confirmed |
| SCD-2014 | 7.Y00330 | SCD | Catalog-confirmed | Confirmed |
| SCD-3020 | 7.Y01049 | SCD | Catalog-confirmed | Confirmed |
| SCD-2020 | 7.Y00233 | SCD | Catalog-confirmed | Confirmed |
| SCD-3030 | 7.Y01050 | SCD | Catalog-confirmed | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Pages 037-038: SMBT*
Pages 039-040: SMBT*, SMBF*
Page 041: SCD*
Page 042, SMBT3 region only: SMBT3*

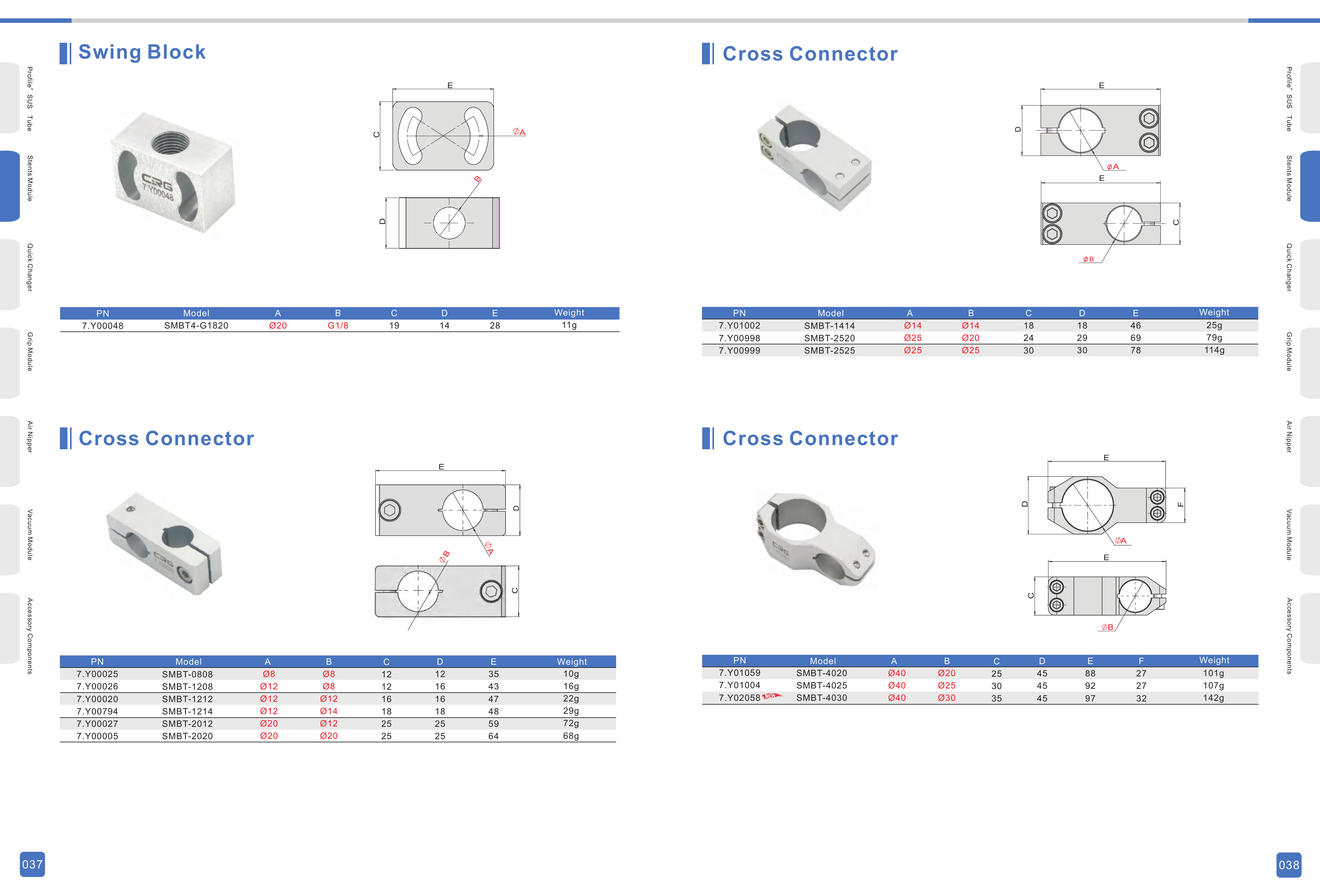

Frame Joints - Pages 037-038
Product-scoped catalog engineering reference. · Pages 037-038
High-resolution web preview · Pages 037-038

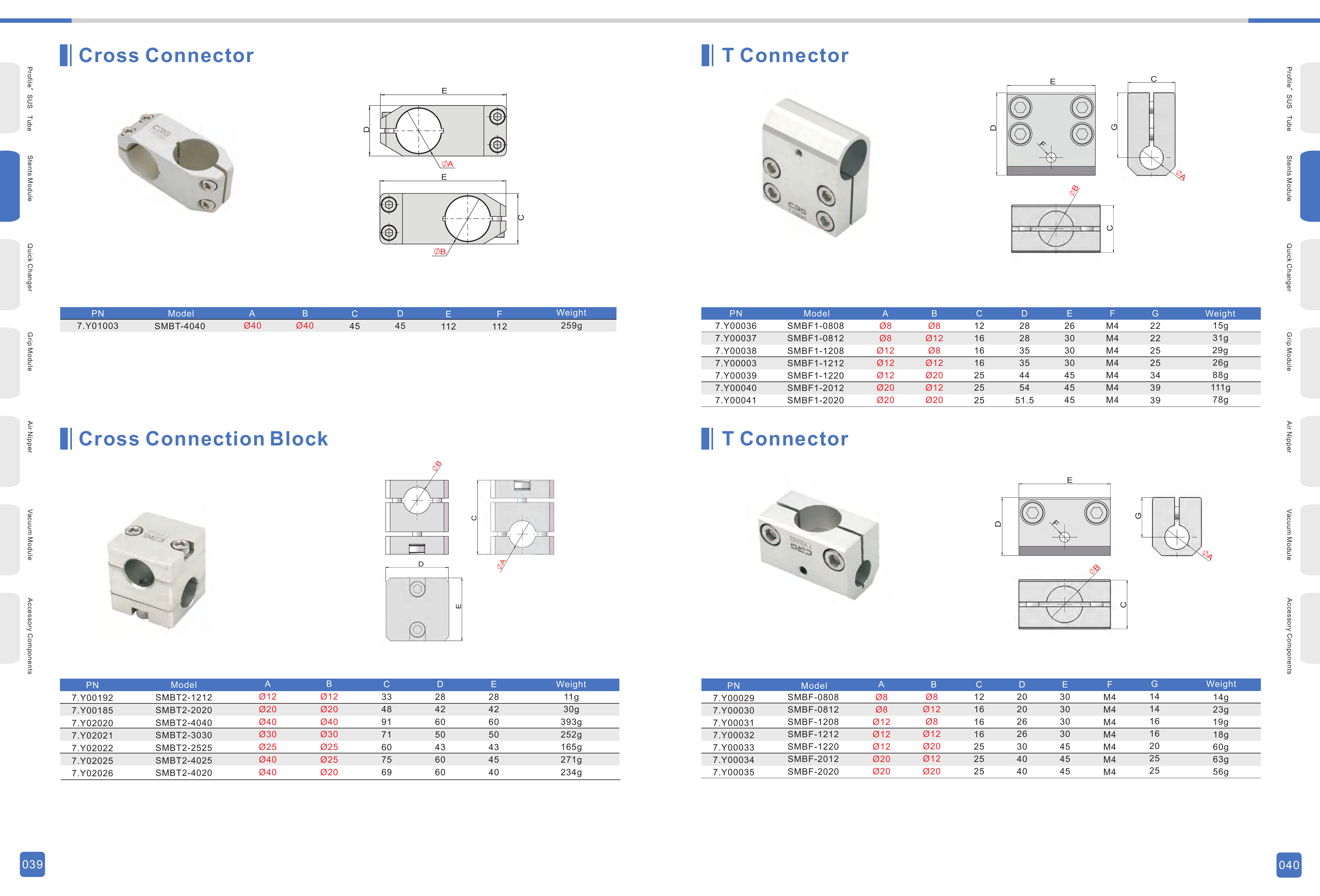

Frame Joints - Pages 039-040
Product-scoped catalog engineering reference. · Pages 039-040
High-resolution web preview · Pages 039-040

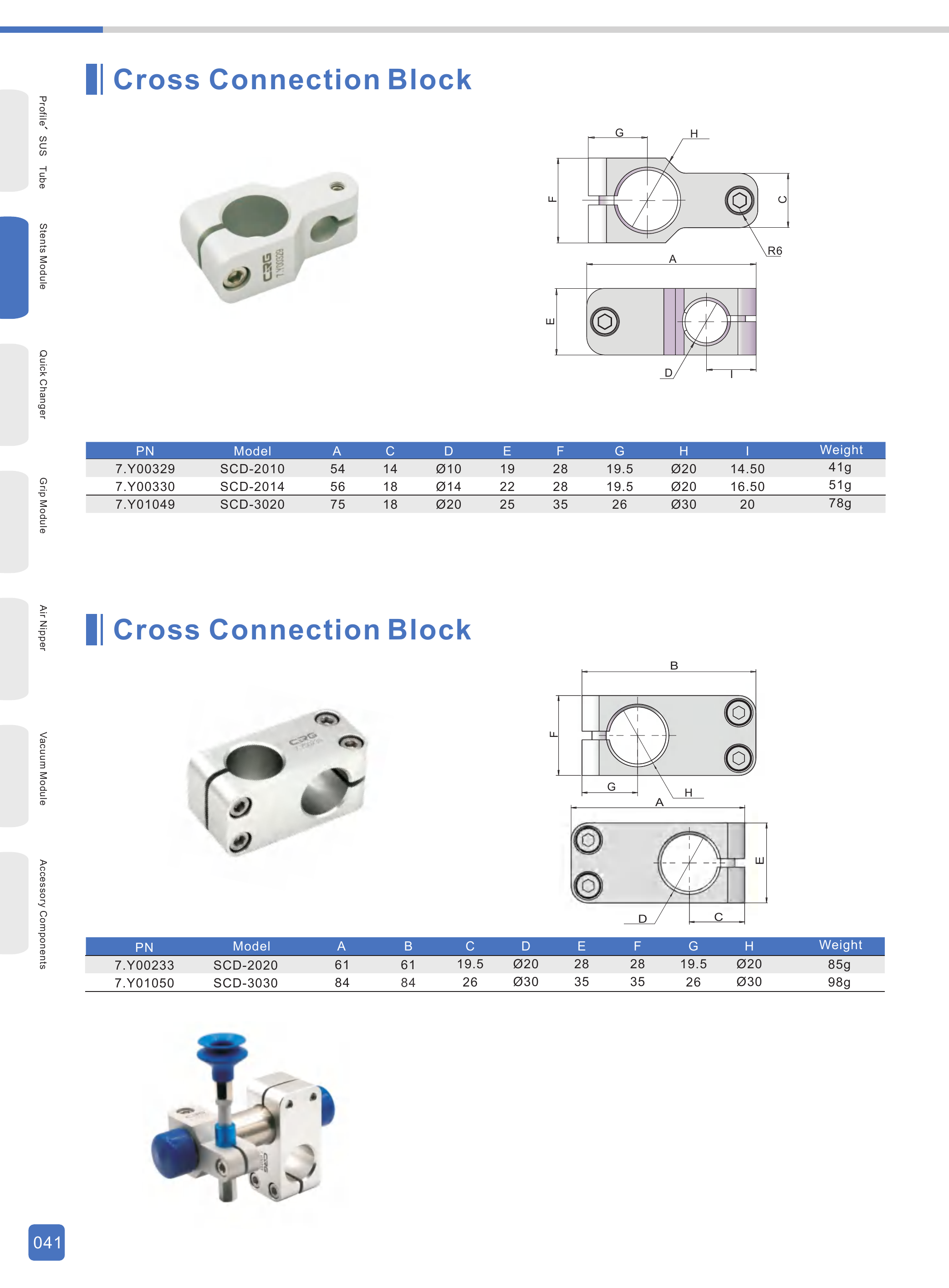

Connection Blocks - Page 041
Product-scoped catalog engineering reference. · Page 041
High-resolution web preview · Page 041

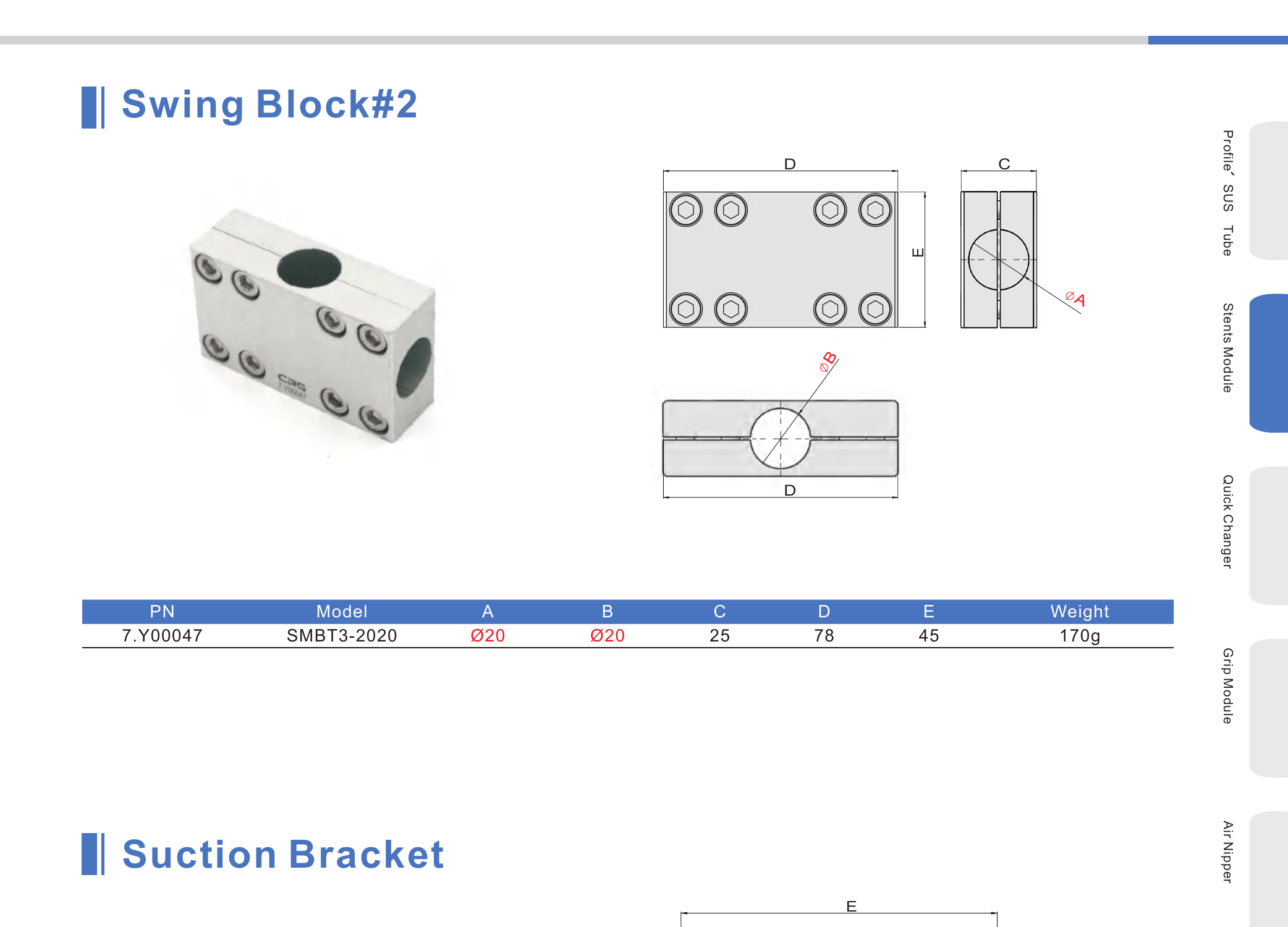

Swing Block #2 - Page 042 region
Product-scoped catalog engineering reference. · Page 042, SMBT3 region only
High-resolution web preview · Page 042, SMBT3 region only
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Page 042 SMBG suction-bracket region is excluded and belongs to PP-MF-04.
- Former SMBP, SMBT1, SMBT5, SMBT6 and SMBT9 assignments were removed by the Phase 4.3 narrow correction.
