Product features
- Multiple EOAT profile cross-sections
- 1.0 m, 1.5 m and 2.0 m catalog lengths
- PN, weight and end-cap references
- Compatible with profile-based modular framing
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Extruded Aluminum Profiles
Extruded aluminum profiles for configurable EOAT frames, with multiple cross-sections, standard lengths, weights and matching end-cap references.
Series
PEP
Sections
18-50 mm family
Lengths
1.0-2.0 m
Source
Catalog 003-004
Model, PN and application context confirmed during inquiry.
Overview
Understand the PEP / EP product family
Extruded aluminum profiles for configurable EOAT frames, with multiple cross-sections, standard lengths, weights and matching end-cap references.
Selection approach
Choose the profile cross-section first, then confirm length, weight and the applicable end-cap reference.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PEP / EP Models
Choose the profile cross-section first, then confirm length, weight and the applicable end-cap reference.
| Model | PN | Length | Weight | End cap | Status |
|---|---|---|---|---|---|
| PEP1818-1000 | 4.Y00075 | 1.0 m | 425 g | P1818 | Confirmed |
| PEP2510-1000 | 4.Y00076 | 1.0 m | 310 g | P2510 | Confirmed |
| PEP2518-1000 | 4.Y00455 | 1.0 m | 400 g | P2518 | Confirmed |
| PEP2525-1000 | 4.Y00050 | 1.0 m | 610 g | P2525 | Confirmed |
| PEP2525-2000 | 4.Y00051 | 2.0 m | 1220 g | P2525 | Confirmed |
| PEP5025-1000 | 4.Y00056 | 1.0 m | 1040 g | P5025 | Confirmed |
| PEP5025-2000 | 4.Y00057 | 2.0 m | 2080 g | P5025 | Confirmed |
| PEP3030-1000 | 4.Y00540 | 1.0 m | 650 g | P3030 | Confirmed |
| PEP3030-2000 | 4.Y00541 | 2.0 m | 1300 g | P3030 | Confirmed |
| PEP4040-1000 | 4.Y00052 | 1.0 m | 1300 g | P4040 | Confirmed |
| PEP4040-2000 | 4.Y00053 | 2.0 m | 2600 g | P4040 | Confirmed |
| PEP3636-1000 | 4.Y00054 | 1.0 m | 1168 g | P3636 | Confirmed |
| PEP3636-1500 | 4.Y00484 | 1.5 m | 1752 g | P3636 | Confirmed |
| PEP3636-2000 | 4.Y00055 | 2.0 m | 2336 g | P3636 | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 003-004: PEP*

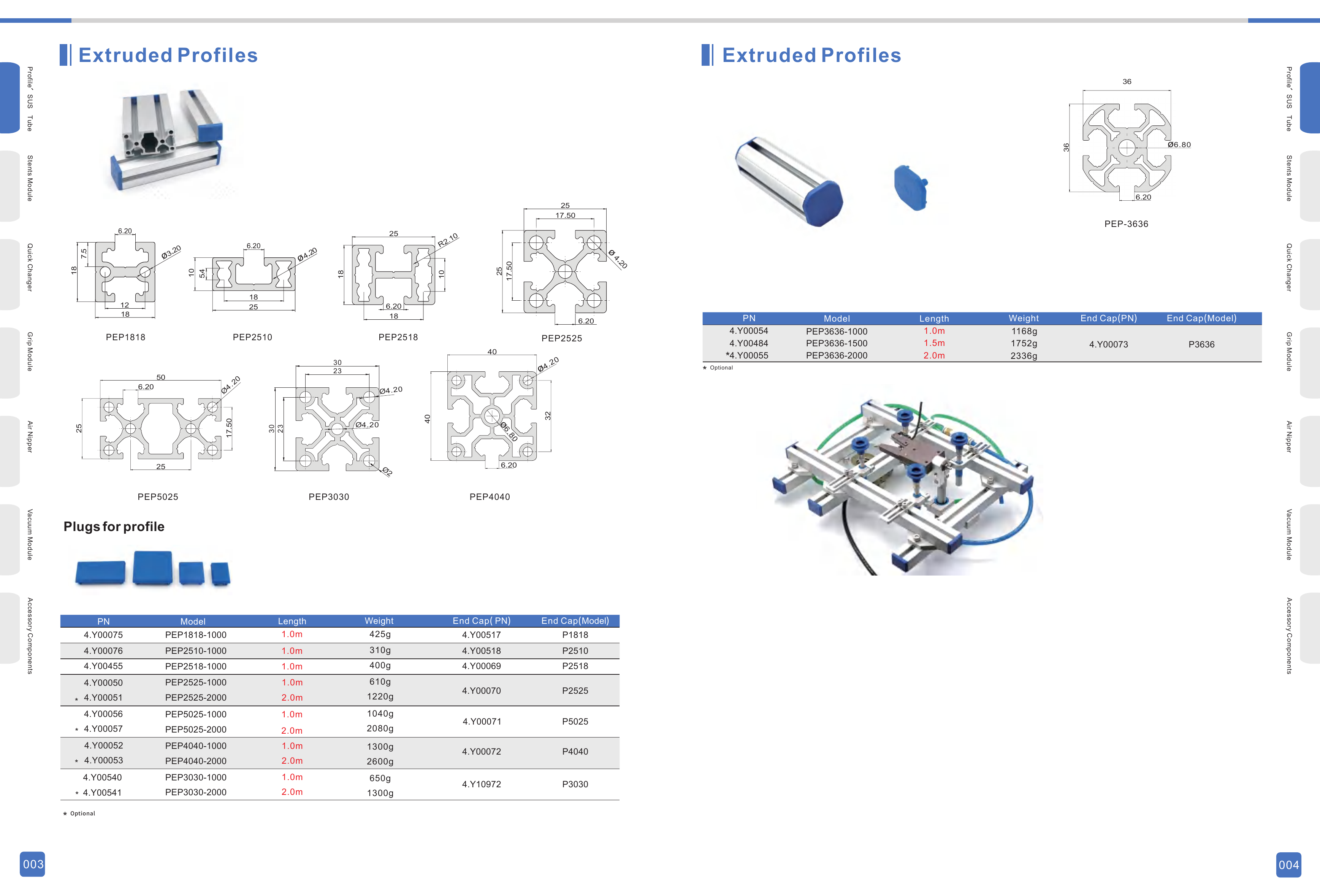

Original Technical Sheet - PEP Profile Selection
Cross-sections, dimensions, models, lengths, weights and end caps · Catalog pages 003-004
High-resolution web preview · Catalog pages 003-004
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Entries marked optional in the source require quotation confirmation.
- Confirm structural load and assembly requirements before selection.
