EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Carbon Fiber Tube
PCT carbon fiber tubes in twelve catalog-confirmed diameter and length configurations.
Frozen ID
PP-002
Series
PCT
Models
12 source-confirmed
Source
Catalog 002, PCT section only
Model, PN and application context confirmed during inquiry.
Overview
Understand the PCT product family
PCT carbon fiber tubes in twelve catalog-confirmed diameter and length configurations.
Selection approach
Select the catalog-confirmed model, then submit the resolved model and PN through the RFQ context.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PCT Models
Select the catalog-confirmed model, then submit the resolved model and PN through the RFQ context.
| Model | PN | Scope | Source evidence | Status |
|---|---|---|---|---|
| PCT8-1000 | 4.Y10960 | PCT | Ø8 / 1000 mm / 0.8 mm / 31 g | Confirmed |
| PCT8-2000 | 4.Y10961 | PCT | Ø8 / 2000 mm / 1.0 mm / 62 g | Confirmed |
| PCT12-1000 | 4.Y10962 | PCT | Ø12 / 1000 mm / 1.0 mm / 59 g | Confirmed |
| PCT12-2000 | 4.Y10963 | PCT | Ø12 / 2000 mm / 1.5 mm / 118 g | Confirmed |
| PCT20-1000 | 4.Y10964 | PCT | Ø20 / 1000 mm / 1.2 mm / 103 g | Confirmed |
| PCT20-2000 | 4.Y10965 | PCT | Ø20 / 2000 mm / 1.2 mm / 206 g | Confirmed |
| PCT25-1000 | 4.Y10966 | PCT | Ø25 / 1000 mm / 1.5 mm / 169 g | Confirmed |
| PCT25-2000 | 4.Y10967 | PCT | Ø25 / 2000 mm / 1.5 mm / 339 g | Confirmed |
| PCT30-1000 | 4.Y10968 | PCT | Ø30 / 1000 mm / 1.5 mm / 236 g | Confirmed |
| PCT30-2000 | 4.Y10969 | PCT | Ø30 / 2000 mm / 1.5 mm / 472 g | Confirmed |
| PCT40-1000 | 4.Y10970 | PCT | Ø40 / 1000 mm / 2.5 mm / 431 g | Confirmed |
| PCT40-2000 | 4.Y10971 | PCT | Ø40 / 2000 mm / 2.5 mm / 861 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog 002, PCT section only: PCT*

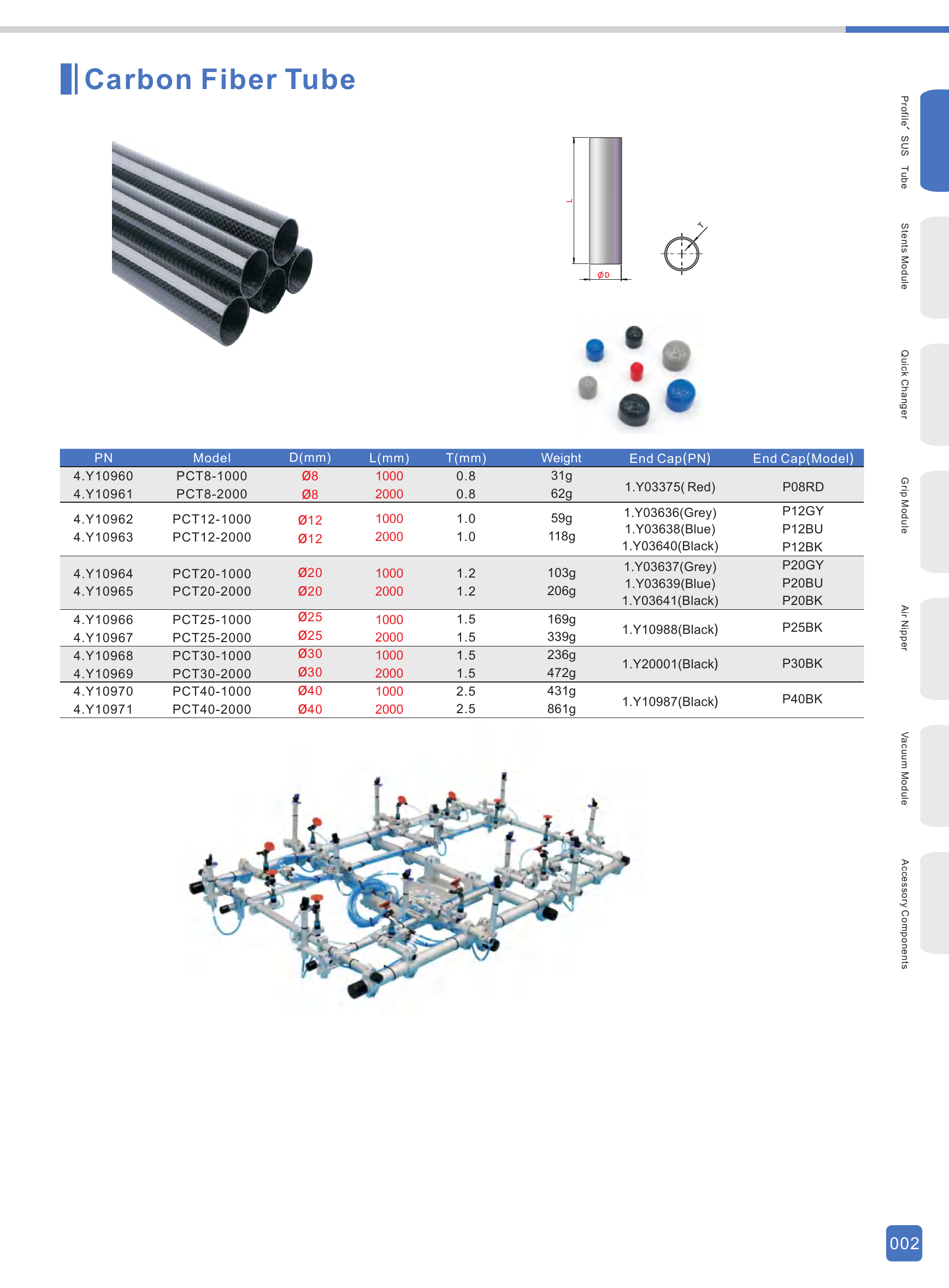

Original Technical Sheet - PCT
Catalog-confirmed models, PNs and technical details · Catalog 002, PCT section only
High-resolution web preview · Catalog 002, PCT section only
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Only Printed Pages 002, PCT section only are bound to this Product Record.
- PST and PAT are excluded.
