EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Mounting Components
Aluminium Tube
PAT aluminium tubes in eight catalog-confirmed diameter and length configurations.
Series
PAT
Models
8 source-confirmed
Source
Catalog 001, PAT section only
Model, PN and application context confirmed during inquiry.
Overview
Understand the PAT product family
PAT aluminium tubes in eight catalog-confirmed diameter and length configurations.
Selection approach
Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare PAT Models
Review the model and engineering references, then include the known model and part number in your inquiry. Leave unconfirmed details open for advice.
| Model | PN | Scope | Source evidence | Status |
|---|---|---|---|---|
| PAT20-1000 | 4.Y00468 | PAT | Ø20 / 1000 mm / 2.0 mm / 308 g | Confirmed |
| PAT20-2000 | 4.Y10972 | PAT | Ø20 / 2000 mm / 2.0 mm / 616 g | Confirmed |
| PAT25-1000 | 4.Y10950 | PAT | Ø25 / 1000 mm / 2.5 mm / 467 g | Confirmed |
| PAT25-2000 | 4.Y10974 | PAT | Ø25 / 2000 mm / 2.5 mm / 934 g | Confirmed |
| PAT30-1000 | 4.Y00469 | PAT | Ø30 / 1000 mm / 2.5 mm / 558 g | Confirmed |
| PAT30-2000 | 4.Y10973 | PAT | Ø30 / 2000 mm / 2.5 mm / 1116 g | Confirmed |
| PAT40-1000 | 4.Y00538 | PAT | Ø40 / 1000 mm / 2.5 mm / 799 g | Confirmed |
| PAT40-2000 | 4.Y10975 | PAT | Ø40 / 2000 mm / 2.5 mm / 1558 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Review the engineering sheets for the selected model. Confirm dimensions, connections and the applicable configuration before quotation.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog 001, PAT section only: PAT*

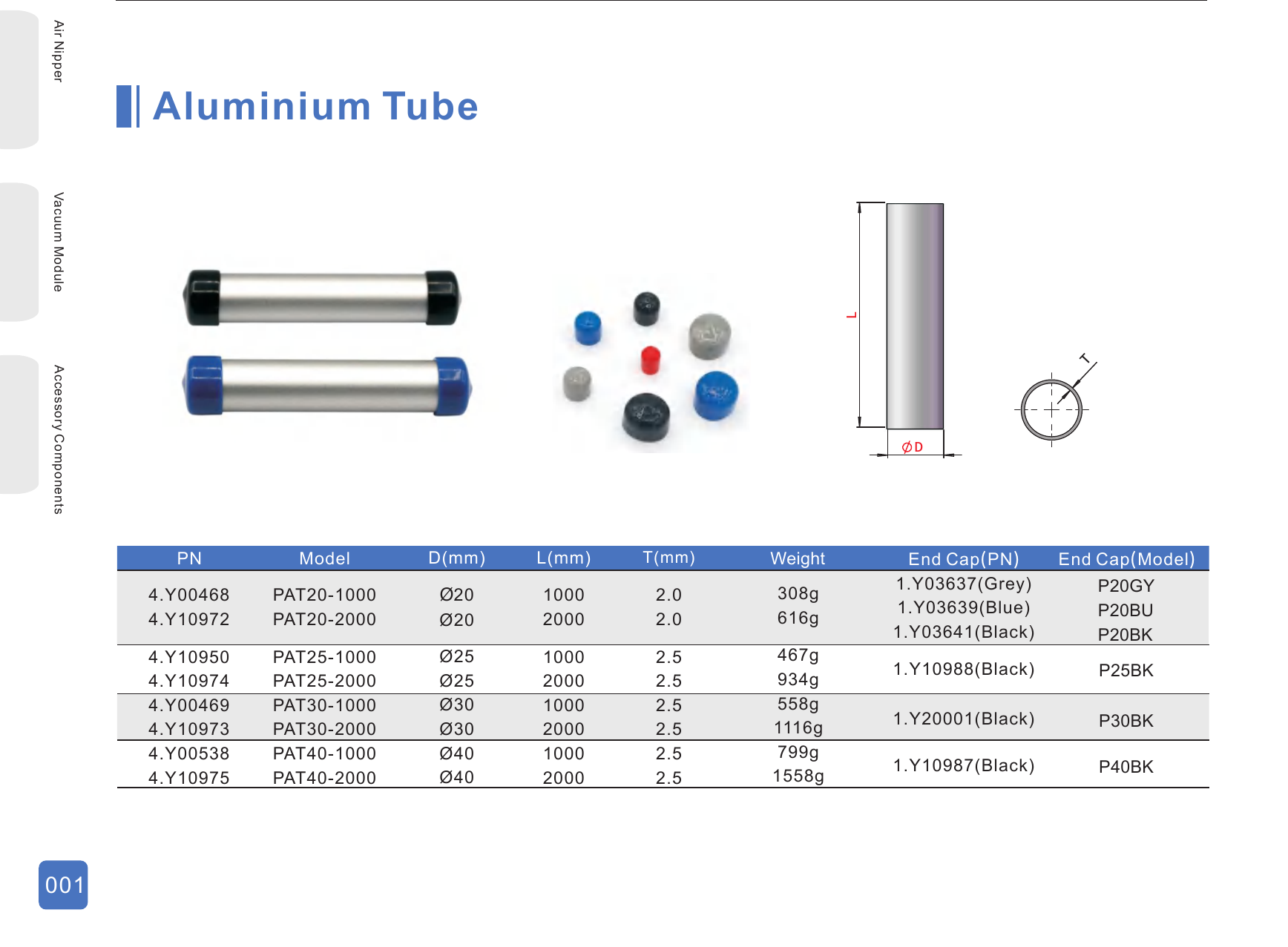

Original Technical Sheet - PAT
Catalog-confirmed models, PNs and technical details · Catalog 001, PAT section only
High-resolution web preview · Catalog 001, PAT section only
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Engineering references cover Printed Pages 001, PAT section only.
- PST and PCT are excluded.
