Product features
- Y-type and three-jaw gripping geometries
- Single- and double-acting GMHC2 models
- Double-acting GMHS3 source models
- Catalog performance and dimension references
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Y-Type and Three-Jaw Grippers
GMHC2 Y-type grippers and source-catalog GMHS3 three-jaw grippers with single- or double-acting variants and engineering dimensions.
Families
GMHC2 / GMHS3 source
Bores
16-25 mm
Action
Single / Double
Status
Naming HOLD
Model, PN and application context confirmed during inquiry.
Draft review note: Naming conflict: approved mapping GMHS2 versus source catalog GMHS3 requires human confirmation.
Overview
Understand the GMHC2 / GMHS3 (source catalog) product family
GMHC2 Y-type grippers and source-catalog GMHS3 three-jaw grippers with single- or double-acting variants and engineering dimensions.
Selection approach
Choose the gripper geometry first, then confirm bore and action mode. The GMHS2 versus GMHS3 family name requires human confirmation before publication.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GMHC2 / GMHS3 (source catalog) Models
Choose the gripper geometry first, then confirm bore and action mode. The GMHS2 versus GMHS3 family name requires human confirmation before publication.
| Model | PN | Family | Bore | Action | Weight | Status |
|---|---|---|---|---|---|---|
| GMHC2-16S | 1.Y02014 | GMHC2 | 16 mm | Single acting | 99 g | Confirmed |
| GMHC2-16D | 1.Y05738 | GMHC2 | 16 mm | Double acting | 108 g | Confirmed |
| GMHC2-20S | 1.Y02730 | GMHC2 | 20 mm | Single acting | 167 g | Confirmed |
| GMHC2-20D | 1.Y04328 | GMHC2 | 20 mm | Double acting | 177 g | Confirmed |
| GMHS3-16D | 1.Y04529 | GMHS3 | 16 mm | Double acting | 59 g | Confirmed |
| GMHS3-20D | 1.Y04764 | GMHS3 | 20 mm | Double acting | 96.7 g | Confirmed |
| GMHS3-25D | 1.Y05750 | GMHS3 | 25 mm | Double acting | 138 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 187-188: GMHC2*
Catalog pages 189-190: GMHS3*

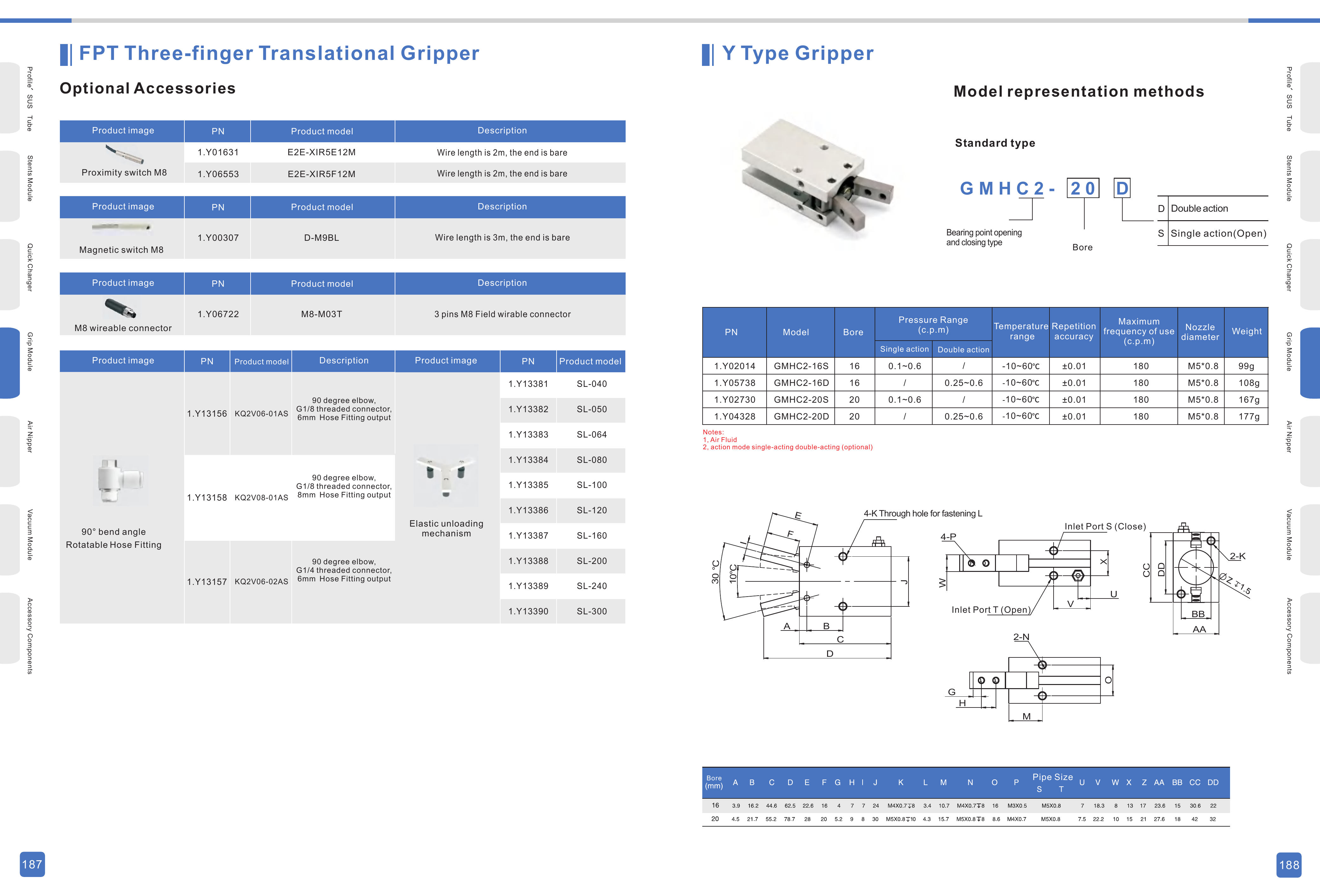

Original Technical Sheet 1 - GMHC2
Y-type models, action modes, pressure, dimensions and accessories · Catalog pages 187-188
High-resolution web preview · Catalog pages 187-188

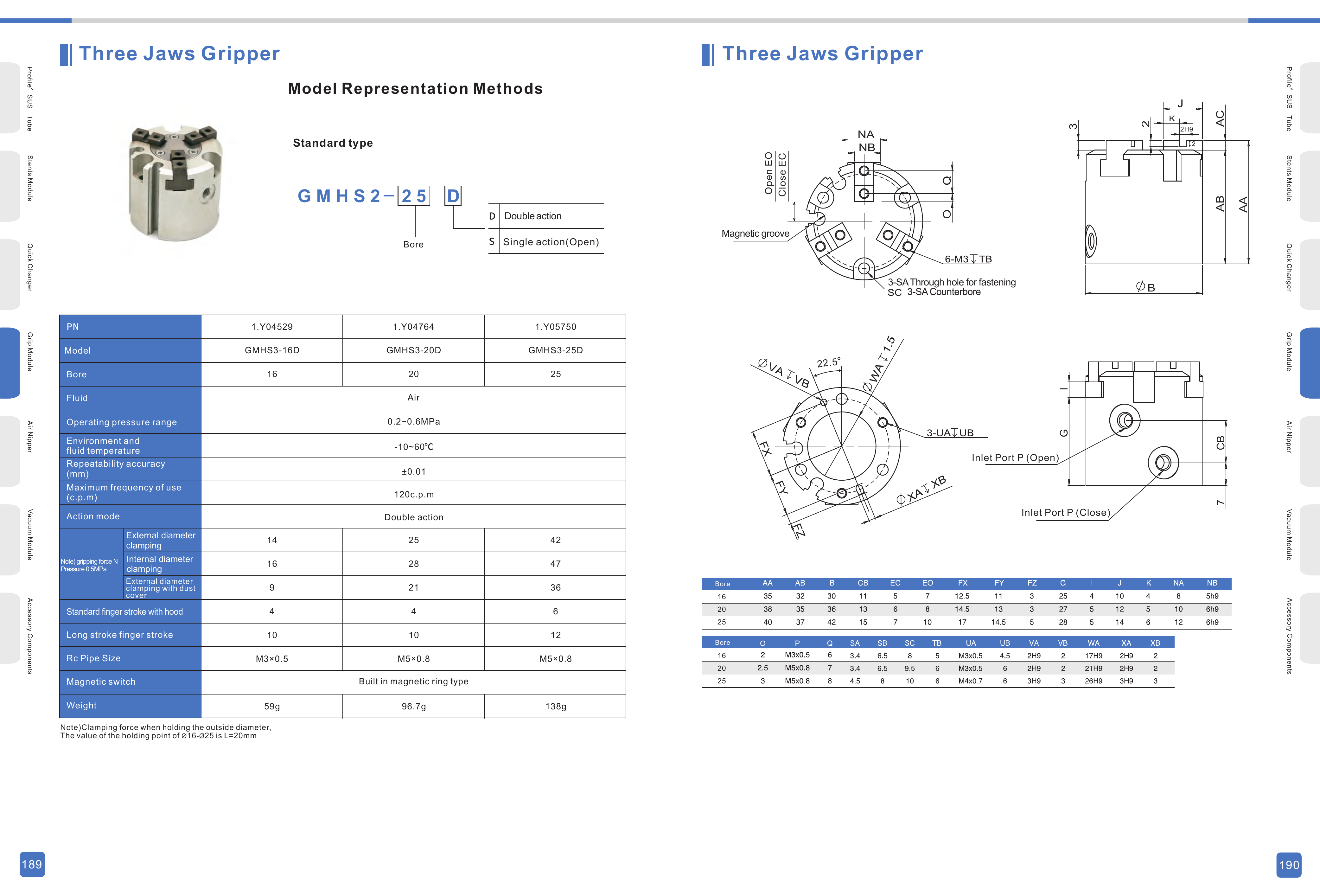

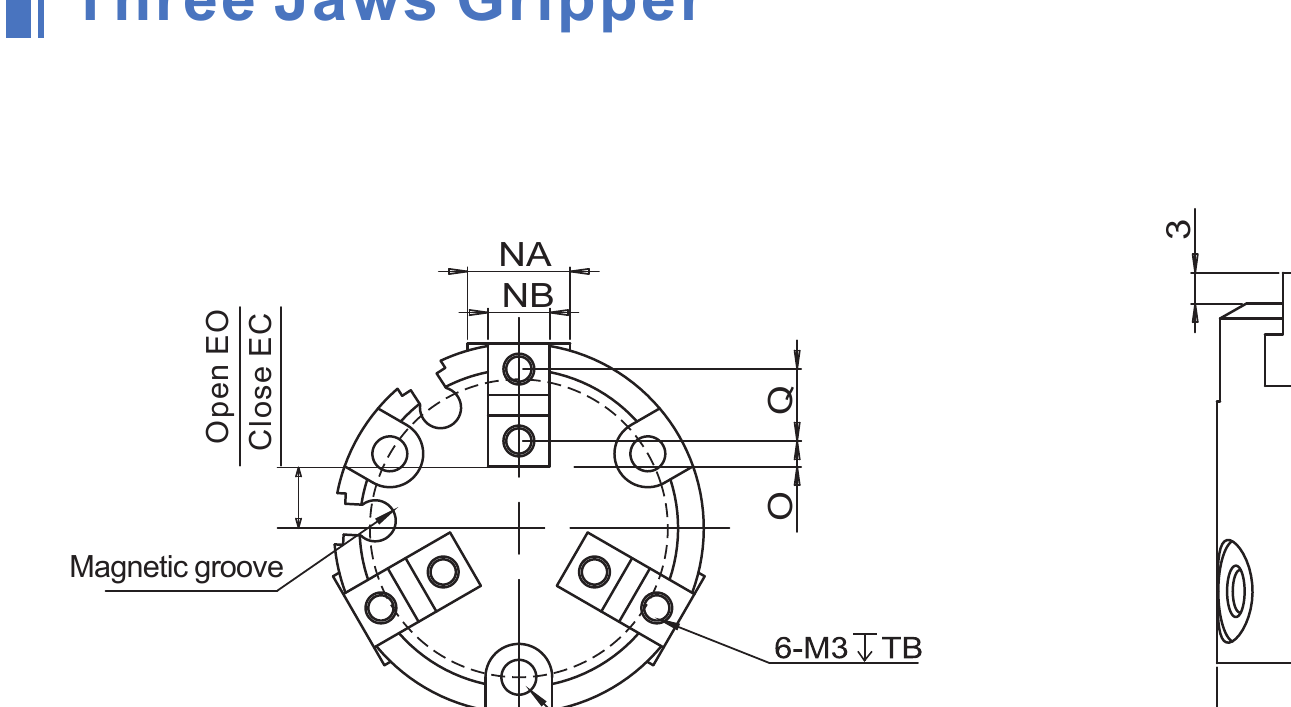

Original Technical Sheet 2 - GMHS3
Three-jaw models, force, stroke, dimensions and PNs · Catalog pages 189-190
High-resolution web preview · Catalog pages 189-190
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- The approved mapping says GMHS2 while the reviewed source table says GMHS3.
- No public indexing is allowed until the three-jaw family name is confirmed.
Product Inquiry
Ask about GMHC2 / GMHS3 (source catalog)
Choose a candidate model or leave the selection open. The RFQ context is generated from this product record and your current selection.
WhatsApp Inquiry
Discuss model, price and lead time
Request the EOAT Catalog
Receive an appropriate verified catalog
