EOAT Grippers

Two- and Three-Finger Translational Grippers

FPT two-finger and FCT three-finger translational grippers with basic, dustproof and high-temperature model variants.

Families

FPT / FCT

Fingers

Two / Three

Versions

Basic / SD / TEM

Source

Catalog 183-186

Model, PN and application context confirmed during inquiry.

Overview

Understand the FPT / FCT product family

FPT two-finger and FCT three-finger translational grippers with basic, dustproof and high-temperature model variants.

Product features

  • T-tooth guide-rail design
  • Two- and three-finger families
  • Basic, dustproof and high-temperature versions
  • Model-level PNs and engineering tables

Selection approach

Choose FPT two-finger or FCT three-finger, then select frame size and Basic, SD dustproof or TEM high-temperature version.

All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.

Product Selection Tool

Compare FPT / FCT Models

Choose FPT two-finger or FCT three-finger, then select frame size and Basic, SD dustproof or TEM high-temperature version.

ModelPNFamilySizeVersionStatus
FPT-40A-11.Y13289FPT / two-finger40 mmBasicConfirmed
FPT-40A-1-SD1.Y13290FPT / two-finger40 mmDustproofConfirmed
FPT-40A-1-TEM1.Y13291FPT / two-finger40 mmHigh temperatureConfirmed
FPT-50A-11.Y13292FPT / two-finger50 mmBasicConfirmed
FPT-50A-21.Y13293FPT / two-finger50 mmBasicConfirmed
FPT-50A-1-SD1.Y13294FPT / two-finger50 mmDustproofConfirmed
FPT-50A-2-SD1.Y13295FPT / two-finger50 mmDustproofConfirmed
FPT-50A-1-TEM1.Y13296FPT / two-finger50 mmHigh temperatureConfirmed
FPT-50A-2-TEM1.Y13297FPT / two-finger50 mmHigh temperatureConfirmed
FPT-64A-11.Y13298FPT / two-finger64 mmBasicConfirmed
FPT-64A-21.Y13299FPT / two-finger64 mmBasicConfirmed
FPT-64A-1-SD1.Y13300FPT / two-finger64 mmDustproofConfirmed
FPT-64A-2-SD1.Y13301FPT / two-finger64 mmDustproofConfirmed
FPT-64A-1-TEM1.Y13302FPT / two-finger64 mmHigh temperatureConfirmed
FPT-64A-2-TEM1.Y13303FPT / two-finger64 mmHigh temperatureConfirmed
FPT-80A-11.Y13304FPT / two-finger80 mmBasicConfirmed
FPT-80A-21.Y13305FPT / two-finger80 mmBasicConfirmed
FPT-80A-1-SD1.Y13306FPT / two-finger80 mmDustproofConfirmed
FPT-80A-2-SD1.Y13307FPT / two-finger80 mmDustproofConfirmed
FPT-80A-1-TEM1.Y13308FPT / two-finger80 mmHigh temperatureConfirmed
FPT-80A-2-TEM1.Y13309FPT / two-finger80 mmHigh temperatureConfirmed
FPT-100A-11.Y13310FPT / two-finger100 mmBasicConfirmed
FPT-100A-21.Y13311FPT / two-finger100 mmBasicConfirmed
FPT-100A-1-SD1.Y13312FPT / two-finger100 mmDustproofConfirmed
FPT-100A-2-SD1.Y13313FPT / two-finger100 mmDustproofConfirmed
FPT-100A-1-TEM1.Y13314FPT / two-finger100 mmHigh temperatureConfirmed
FPT-100A-2-TEM1.Y13315FPT / two-finger100 mmHigh temperatureConfirmed
FPT-110A-11.Y13316FPT / two-finger110 mmBasicConfirmed
FPT-125A-11.Y13317FPT / two-finger125 mmBasicConfirmed
FPT-125A-21.Y13318FPT / two-finger125 mmBasicConfirmed
FPT-125A-1-SD1.Y13319FPT / two-finger125 mmDustproofConfirmed
FPT-125A-2-SD1.Y13320FPT / two-finger125 mmDustproofConfirmed
FPT-125A-1-TEM1.Y13321FPT / two-finger125 mmHigh temperatureConfirmed
FPT-125A-2-TEM1.Y13322FPT / two-finger125 mmHigh temperatureConfirmed
FPT-160A-11.Y13323FPT / two-finger160 mmBasicConfirmed
FPT-160A-21.Y13324FPT / two-finger160 mmBasicConfirmed
FPT-160A-1-SD1.Y13325FPT / two-finger160 mmDustproofConfirmed
FPT-160A-2-SD1.Y13326FPT / two-finger160 mmDustproofConfirmed
FPT-160A-1-TEM1.Y13327FPT / two-finger160 mmHigh temperatureConfirmed
FPT-160A-2-TEM1.Y13328FPT / two-finger160 mmHigh temperatureConfirmed
FPT-200A-11.Y13329FPT / two-finger200 mmBasicConfirmed
FPT-200A-1-SD1.Y13330FPT / two-finger200 mmDustproofConfirmed
FPT-200A-1-TEM1.Y13331FPT / two-finger200 mmHigh temperatureConfirmed
FPT-240A-11.Y13332FPT / two-finger240 mmBasicConfirmed
FPT-240A-1-SD1.Y13333FPT / two-finger240 mmDustproofConfirmed
FPT-240A-1-TEM1.Y13334FPT / two-finger240 mmHigh temperatureConfirmed
FPT-300A-11.Y13335FPT / two-finger300 mmBasicConfirmed
FPT-300A-1-SD1.Y13336FPT / two-finger300 mmDustproofConfirmed
FPT-300A-1-TEM1.Y13337FPT / two-finger300 mmHigh temperatureConfirmed
FCT-40A-11.Y13338FCT / three-finger40 mmBasicConfirmed
FCT-40A-1-SD1.Y13339FCT / three-finger40 mmDustproofConfirmed
FCT-40A-1-TEM1.Y13340FCT / three-finger40 mmHigh temperatureConfirmed
FCT-50A-11.Y13341FCT / three-finger50 mmBasicConfirmed
FCT-50A-1-SD1.Y13342FCT / three-finger50 mmDustproofConfirmed
FCT-50A-1-TEM1.Y13343FCT / three-finger50 mmHigh temperatureConfirmed
FCT-64A-11.Y13344FCT / three-finger64 mmBasicConfirmed
FCT-64A-1-SD1.Y13345FCT / three-finger64 mmDustproofConfirmed
FCT-64A-1-TEM1.Y13346FCT / three-finger64 mmHigh temperatureConfirmed
FCT-80A-11.Y13347FCT / three-finger80 mmBasicConfirmed
FCT-80A-1-SD1.Y13348FCT / three-finger80 mmDustproofConfirmed
FCT-80A-1-TEM1.Y13349FCT / three-finger80 mmHigh temperatureConfirmed
FCT-100A-11.Y13350FCT / three-finger100 mmBasicConfirmed
FCT-100A-1-SD1.Y13351FCT / three-finger100 mmDustproofConfirmed
FCT-100A-1-TEM1.Y13352FCT / three-finger100 mmHigh temperatureConfirmed
FCT-125A-11.Y13353FCT / three-finger125 mmBasicConfirmed
FCT-125A-1-SD1.Y13354FCT / three-finger125 mmDustproofConfirmed
FCT-125A-1-TEM1.Y13355FCT / three-finger125 mmHigh temperatureConfirmed
FCT-160A-11.Y13356FCT / three-finger160 mmBasicConfirmed
FCT-160A-1-SD1.Y13357FCT / three-finger160 mmDustproofConfirmed
FCT-160A-1-TEM1.Y13358FCT / three-finger160 mmHigh temperatureConfirmed
FCT-200A-11.Y13359FCT / three-finger200 mmBasicConfirmed
FCT-200A-1-SD1.Y13360FCT / three-finger200 mmDustproofConfirmed
FCT-200A-1-TEM1.Y13361FCT / three-finger200 mmHigh temperatureConfirmed
FCT-240A-11.Y13362FCT / three-finger240 mmBasicConfirmed
FCT-240A-1-SD1.Y13363FCT / three-finger240 mmDustproofConfirmed
FCT-240A-1-TEM1.Y13364FCT / three-finger240 mmHigh temperatureConfirmed
FCT-300A-11.Y13365FCT / three-finger300 mmBasicConfirmed
FCT-300A-1-SD1.Y13366FCT / three-finger300 mmDustproofConfirmed
FCT-300A-1-TEM1.Y13367FCT / three-finger300 mmHigh temperatureConfirmed

Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.

Engineering Reference

Technical Data & Dimensions

Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.

Dimensions & Drawings
Model / PN Reference
Technical Notes

Applicability

Catalog pages 183-184: FPT*

Catalog pages 185-186: FCT*

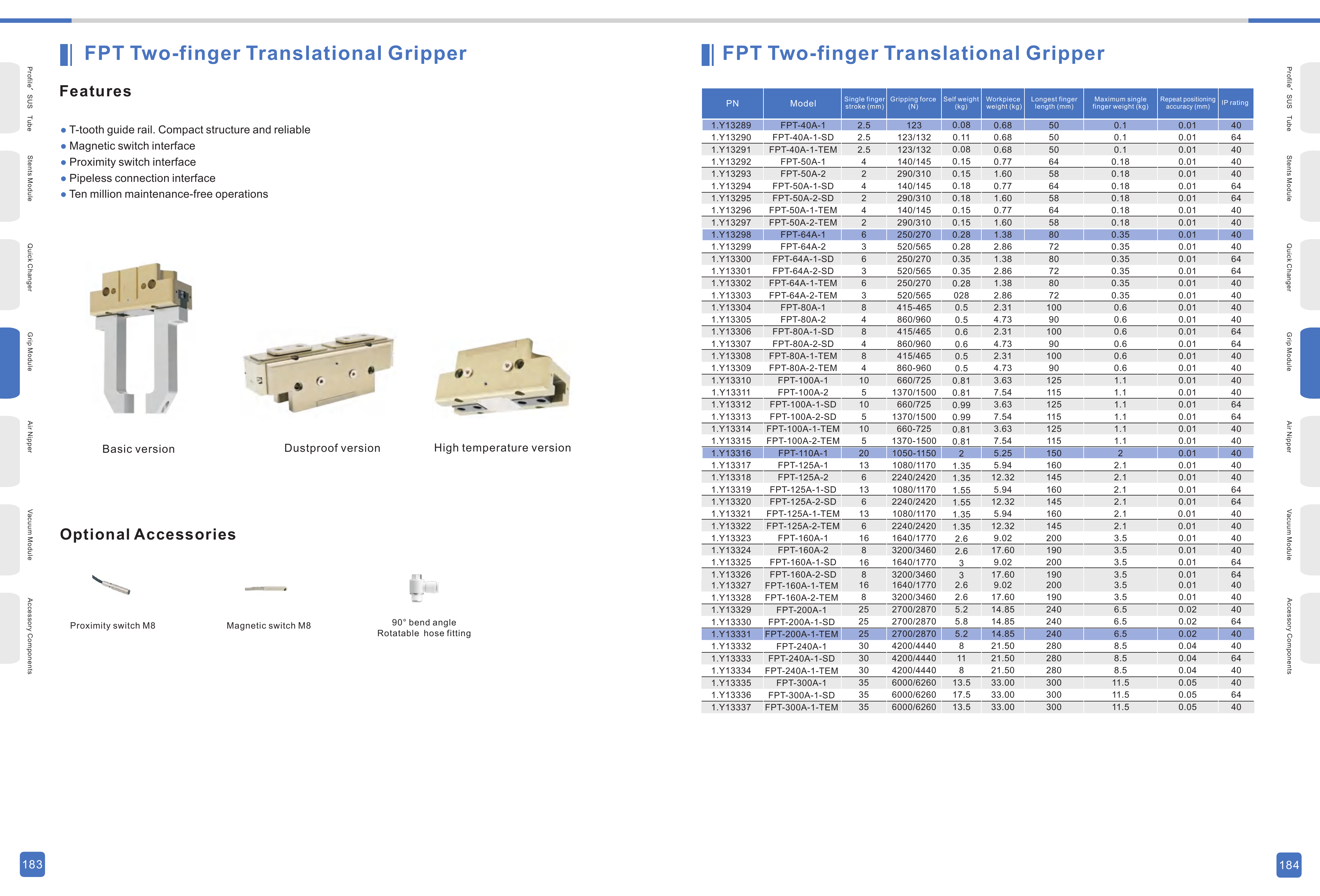

Original Technical Sheet 1 - FPT

FPT models, PNs, strokes, forces, weights and options · Catalog pages 183-184

High-resolution web preview · Catalog pages 183-184

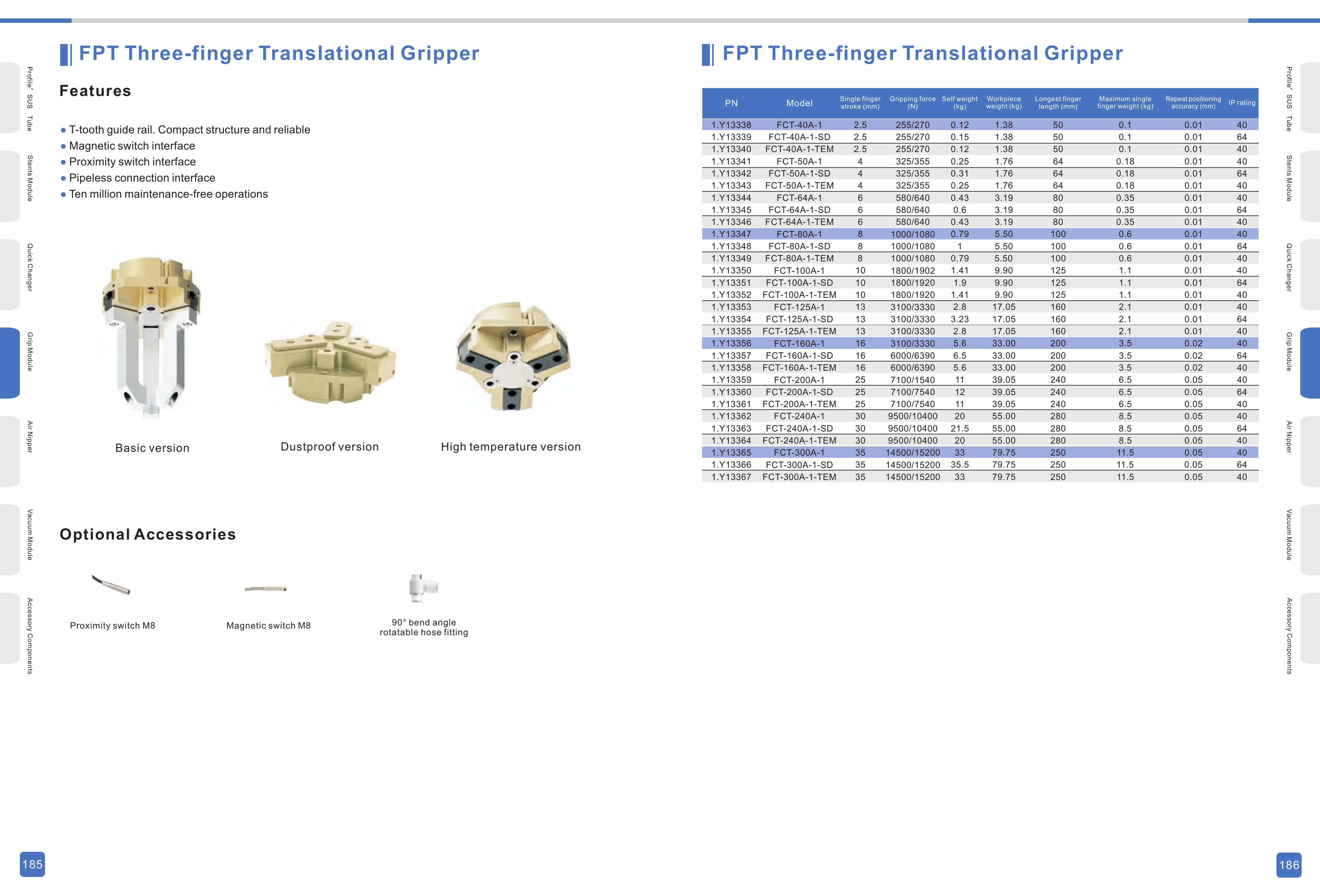

Original Technical Sheet 2 - FCT

FCT models, PNs, strokes, forces, weights and options · Catalog pages 185-186

High-resolution web preview · Catalog pages 185-186

Open the reviewed source PDF for the highest-fidelity engineering reference.

Open Original PDF

Technical confirmation notes

  • Detailed force, stroke and allowable-load values remain in the applicable engineering sheet.
  • Optional switches and fittings require quotation confirmation.
