Product features
- Single-acting 95-degree movement
- Built-in magnetic ring
- Standard, silicone, long and sensor-ready variants
- Model-specific dimensions and PNs
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Rotary Finger Grippers
Single-acting GFR rotary finger grippers with 95-degree stroke, built-in magnetic rings and multiple finger or silicone configurations.
Series
GFR
Stroke
95°
Pressure
2.5-8 bar
Source
Catalog 263-266
Model, PN and application context confirmed during inquiry.
Overview
Understand the GFR product family
Single-acting GFR rotary finger grippers with 95-degree stroke, built-in magnetic rings and multiple finger or silicone configurations.
Selection approach
Choose the GFR configuration suffix by finger geometry, then select size and verify torque, dimensions and mounting.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GFR Models
Choose the GFR configuration suffix by finger geometry, then select size and verify torque, dimensions and mounting.
| Model | PN | Configuration | Piston bore | Closing torque | Weight | Status |
|---|---|---|---|---|---|---|
| GFR20-95S | 8.Y00335 | S | Ø16 mm | 70 Ncm | 89 g | Confirmed |
| GFR14-95G | 8.Y00084 | G / silicone | Ø10 mm | 19 Ncm | 36 g | Confirmed |
| GFR20-95EG | 8.Y00312 | EG / silicone | Ø16 mm | 70 Ncm | 87 g | Confirmed |
| GFR30-95G | 8.Y00096 | G / silicone | Ø25 mm | 300 Ncm | 300 g | Confirmed |
| GFR20-95L | 8.Y00309 | Long | Ø16 mm | 70 Ncm | 81.4 g | Confirmed |
| GFR20-95SG | 8.Y00336 | SG / silicone | Ø16 mm | 70 Ncm | 104.8 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 263-264: GFR20-95S, GFR14-95G, GFR20-95EG, GFR30-95G
Catalog pages 265-266: GFR20-95L, GFR20-95SG

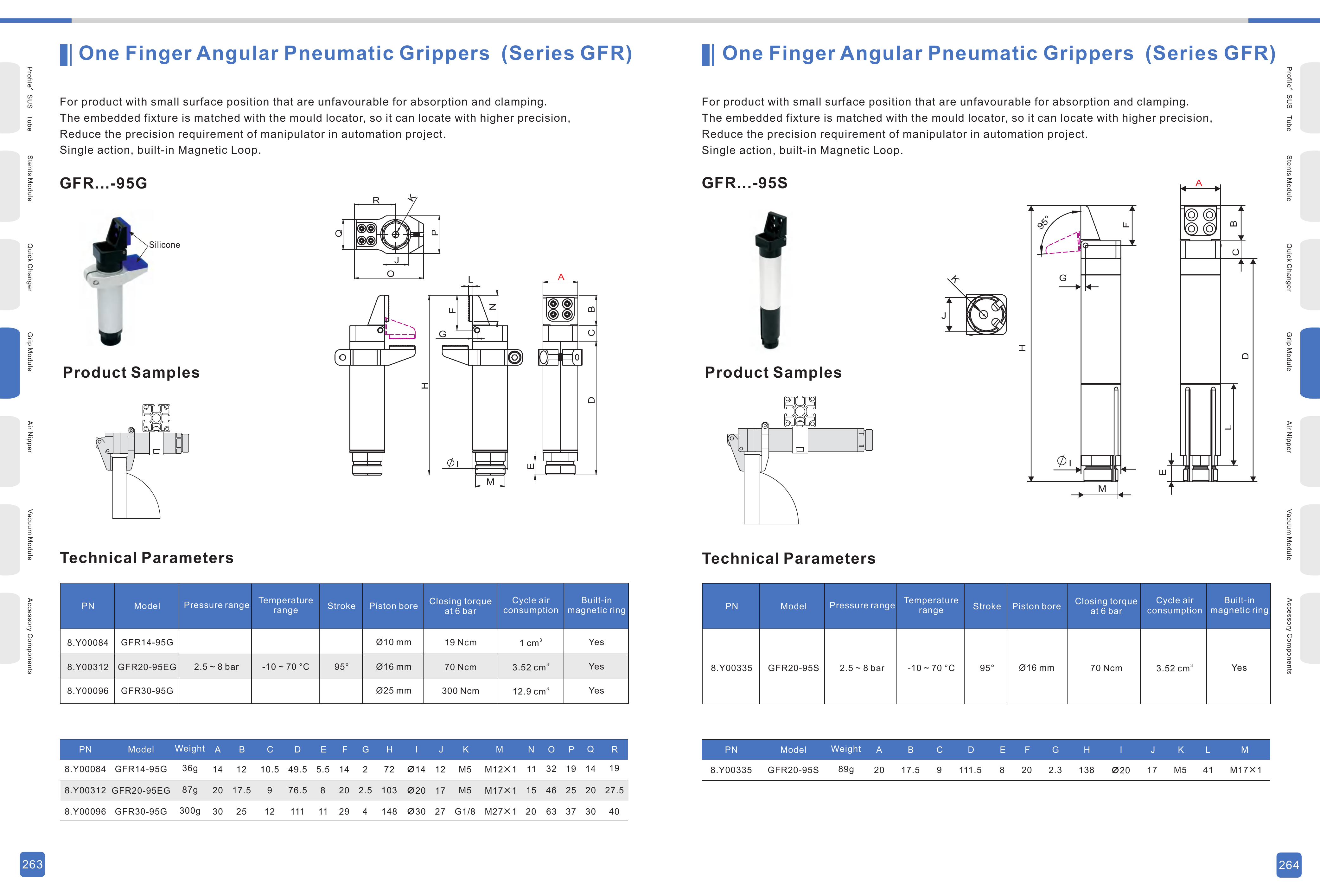

Original Technical Sheet 1 - GFR S / G
GFR standard and silicone variants, dimensions and technical parameters · Catalog pages 263-264
High-resolution web preview · Catalog pages 263-264

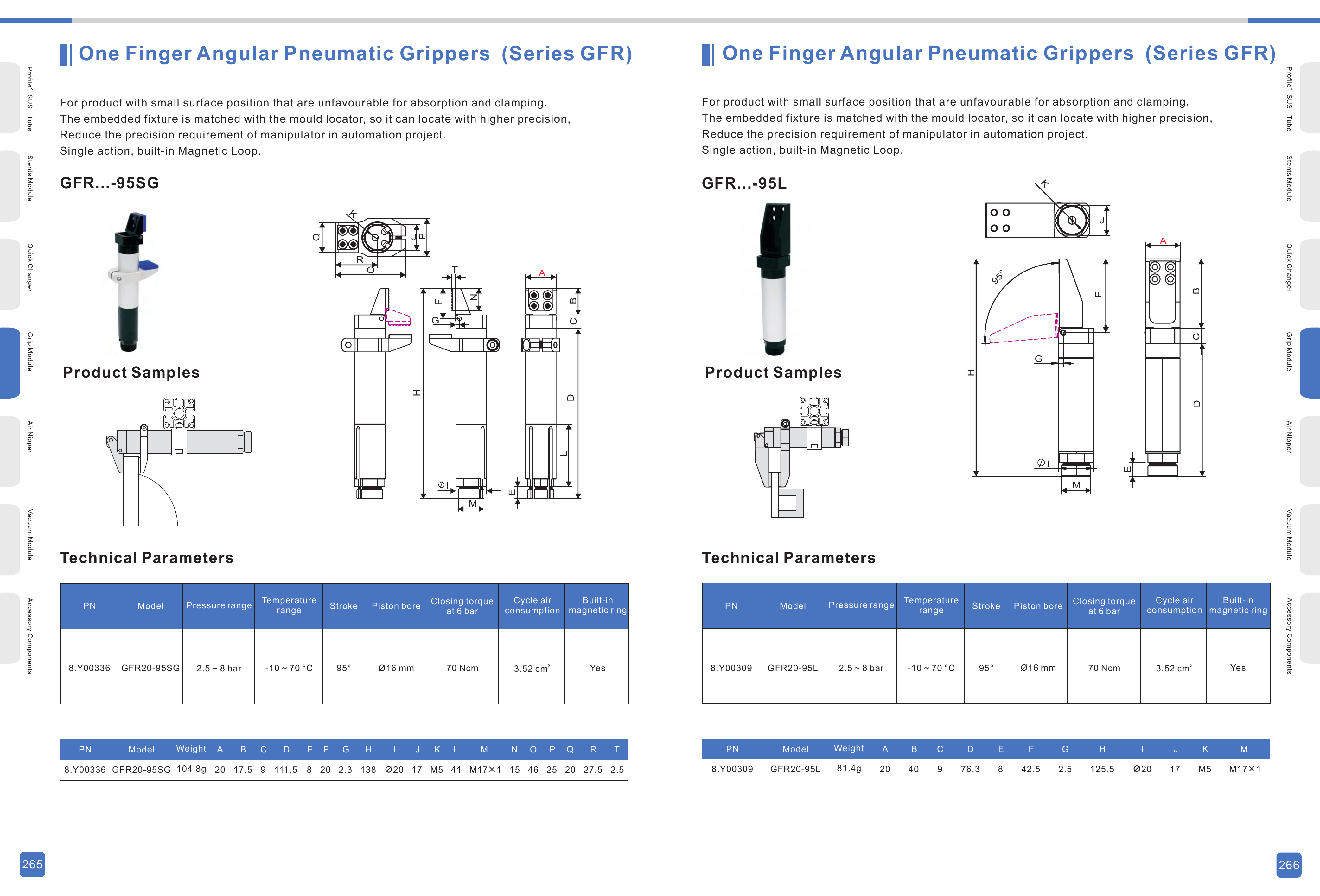

Original Technical Sheet 2 - GFR L / SG
GFR long and sensor-ready silicone variants · Catalog pages 265-266
High-resolution web preview · Catalog pages 265-266
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- GFR20-95LG appears on the next source page and is outside the approved P032 mapping.
- Confirm silicone/finger configuration and mounting dimensions in the RFQ.
