Product features
- 90-degree pneumatic rotation
- Compressed-air lift with spring reset
- Compact and heavy-duty families
- Optional magnetic sensor mounting
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Pneumatic Rotary Units

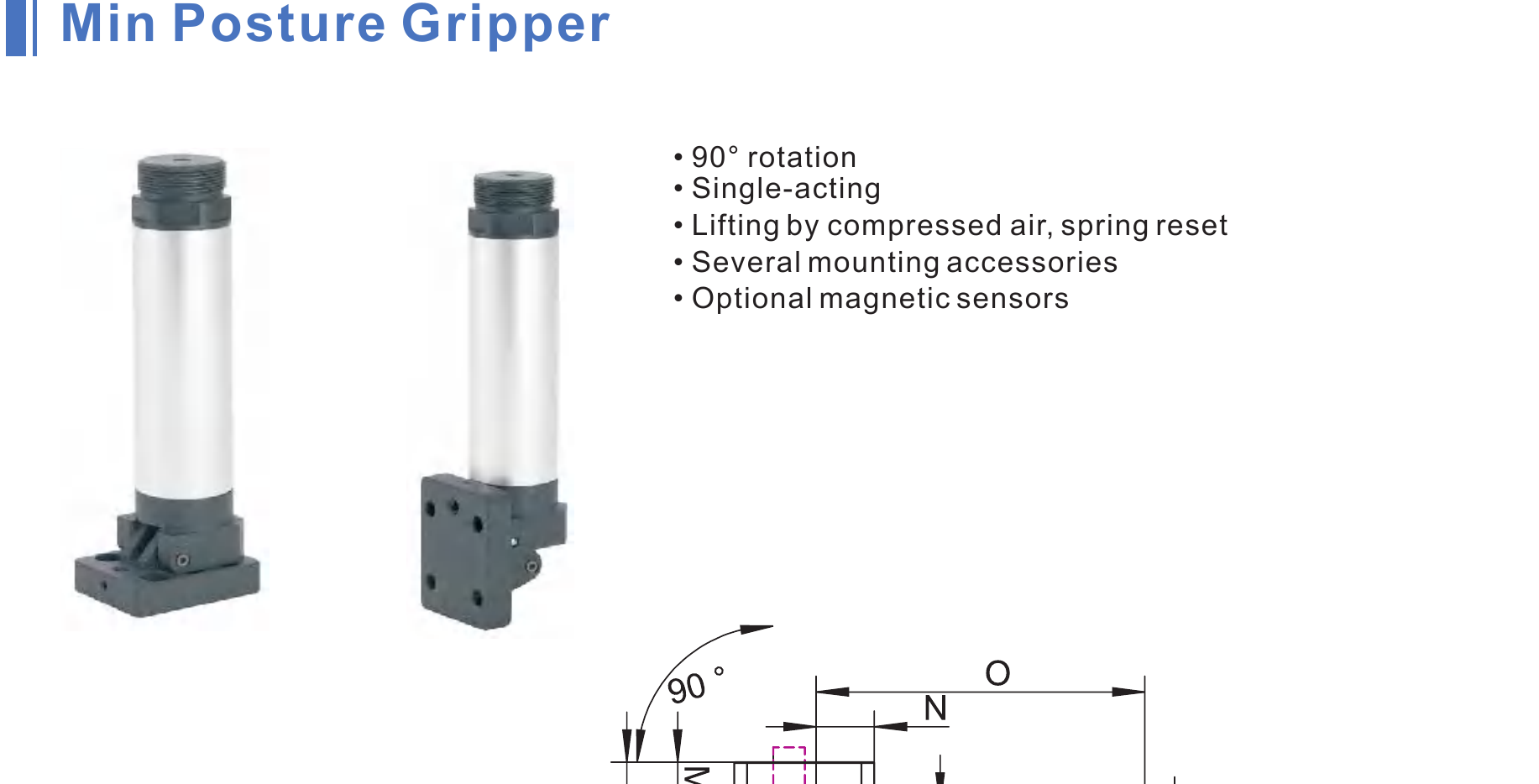

Single-acting pneumatic 90-degree posture and rotation units for EOAT assemblies, with spring reset and optional magnetic sensing.
Series
GFT / GFN
Rotation
90°
Action
Single acting
Source
Catalog 277-278
Model, PN and application context confirmed during inquiry.
Overview
Understand the GFT / GFN product family
Single-acting pneumatic 90-degree posture and rotation units for EOAT assemblies, with spring reset and optional magnetic sensing.
Selection approach
Choose GFT60 for the higher-load posture unit or GFN20/GFN30 for compact rotation, then confirm torque, load and mounting.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GFT / GFN Models
Choose GFT60 for the higher-load posture unit or GFN20/GFN30 for compact rotation, then confirm torque, load and mounting.
| Model | PN | Family | Torque / load | Weight | Pressure | Status |
|---|---|---|---|---|---|---|
| GFT60-90 | 8.Y01007 | GFT | Lift >78 Nm; allowed load 300 N | 2520 g | 2-8 bar | Confirmed |
| GFN20-90 | 8.Y00094 | GFN | 120 Ncm | 65 g | 2-8 bar | Confirmed |
| GFN30-90 | 8.Y00116 | GFN | 300 Ncm | 210 g | 2-8 bar | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 277-278: GFT*, GFN*

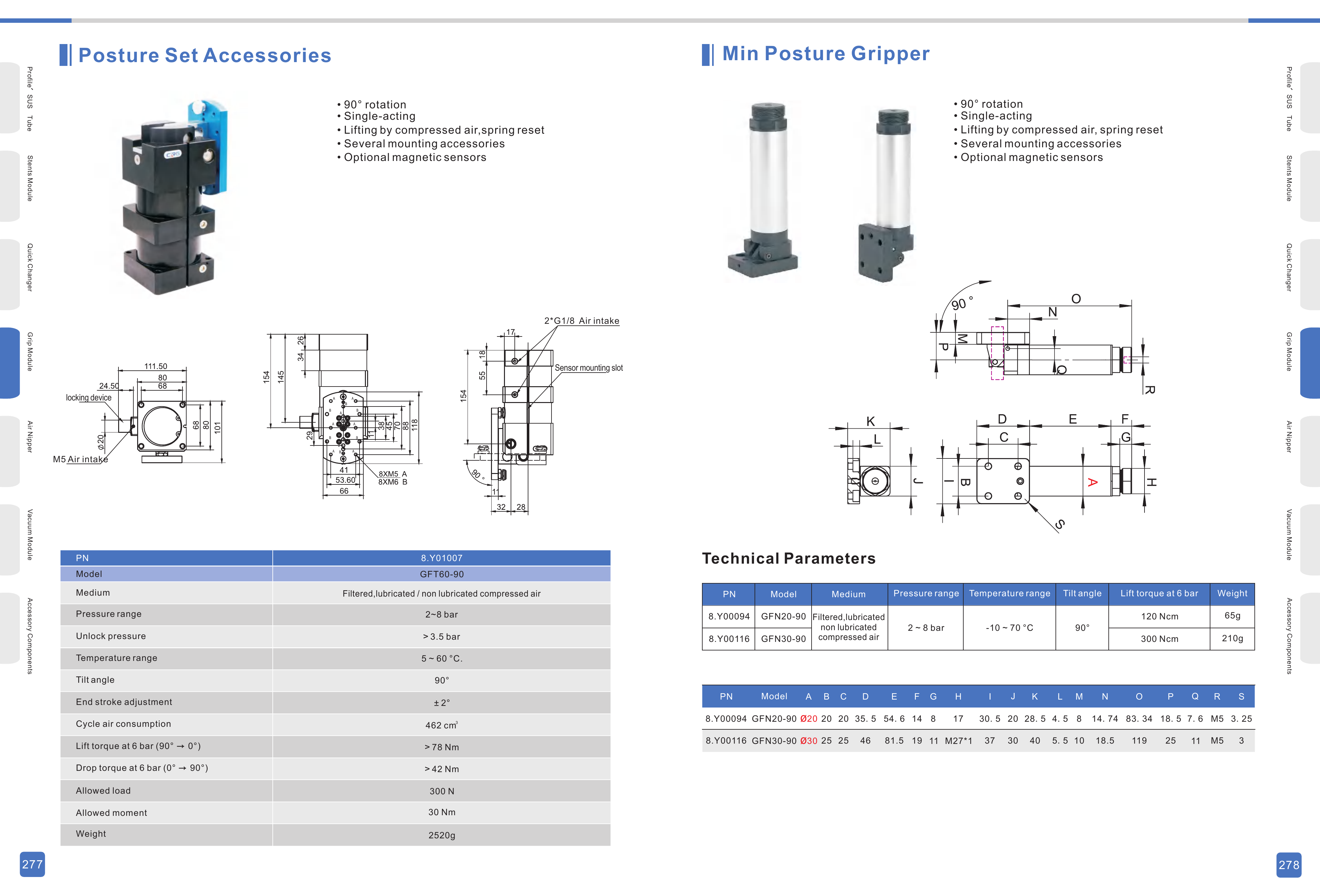

Original Technical Sheet - GFT / GFN Rotary Units
Models, PNs, torque, load, dimensions and technical parameters · Catalog pages 277-278
High-resolution web preview · Catalog pages 277-278
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- GFT and GFN use different torque units in the reviewed source; values are preserved as published.
- Confirm dynamic loads, mounting accessories and sensor requirements.
