Product features
- Adjustable needle engagement on catalog-defined models
- Configurations from 4 to 32 pins
- Designed for porous and flexible workpieces
- Three engineering-reference spreads
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Pneumatic Needle Grippers
Pneumatic needle grippers for handling porous and flexible materials such as nonwoven fabric, net cloth and sponge.
Series
GN
Pins
4-32
Pressure
3-8 bar family reference
Source
Catalog 255-260
Model, PN and application context confirmed during inquiry.
Overview
Understand the GN series product family
Pneumatic needle grippers for handling porous and flexible materials such as nonwoven fabric, net cloth and sponge.
Selection approach
Select the GN configuration by material, pin count and required needle engagement; confirm pressure, force and stroke from the applicable sheet.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GN series Models
Select the GN configuration by material, pin count and required needle engagement; confirm pressure, force and stroke from the applicable sheet.
| Model | PN | Pins | Weight | Source group | Status |
|---|---|---|---|---|---|
| GN2010-S51 | 8.Y00341 | 4 | 240 g | Adjustable-angle | Confirmed |
| GN2010-S21 | 8.Y00440 | 4 | 220 g | Adjustable-angle | Confirmed |
| GN2010-8S51 | 8.Y00385 | 8 | 480 g | Adjustable-angle | Confirmed |
| GN2010 | 8.Y00025 | 4 | 274 g | Standard | Confirmed |
| GN2010-8 | 8.Y00347 | 8 | 317 g | Standard | Confirmed |
| GN3003-4 | 8.Y01005 | 4 | 188 g | Compact | Confirmed |
| GN3003-4-15 | 8.Y01082 | 4 | 259 g | Extended | Confirmed |
| GN2002-32 | 8.Y01035 | 32 | 110 g | Multi-pin | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 255-256: GN2010-S*, GN2010-8S*
Catalog pages 257-258: GN2010, GN2010-8, GN3003-4
Catalog pages 259-260: GN3003-4-15, GN2002-32

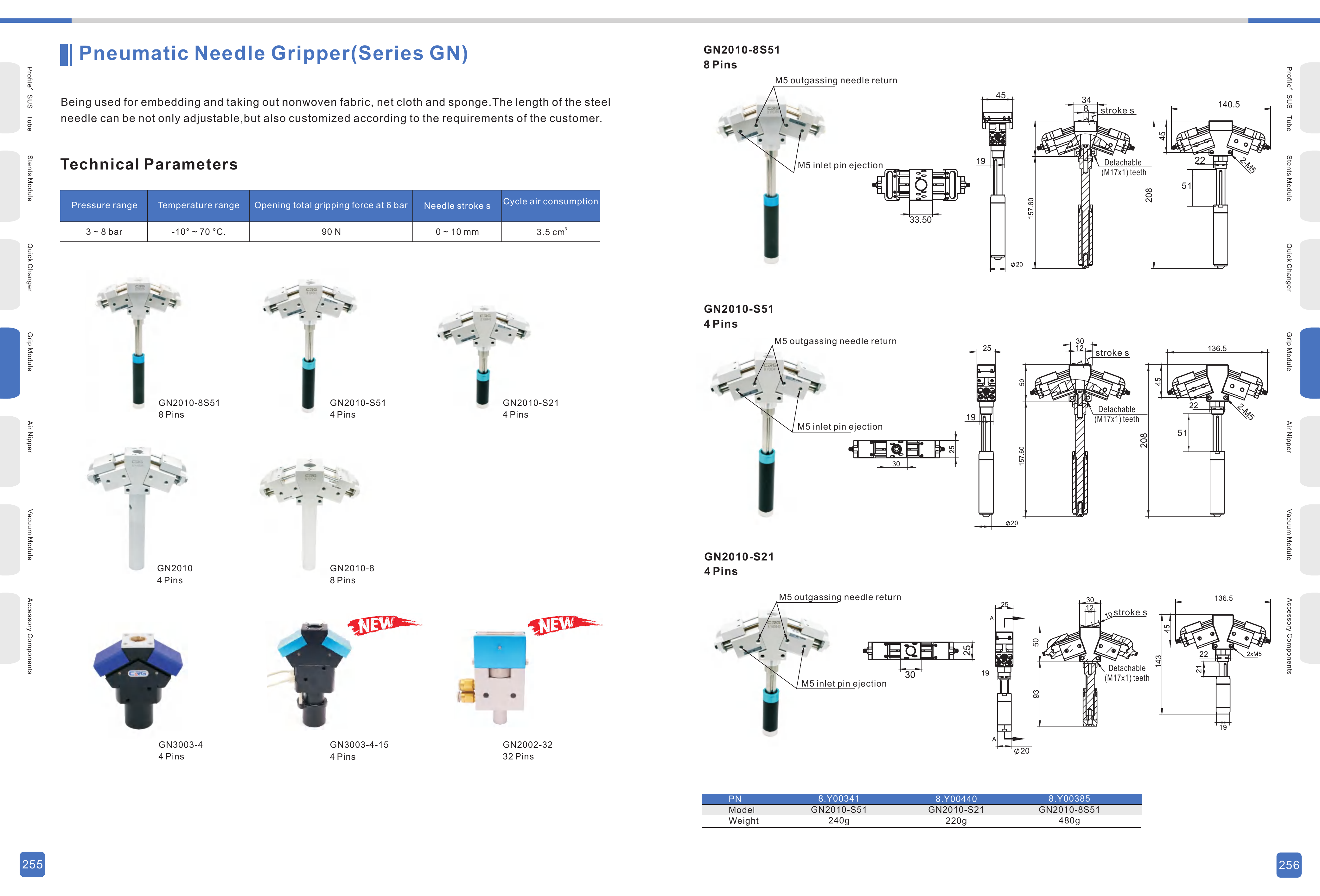

Original Technical Sheet 1 - GN2010 Adjustable Series
Models, pressure, force, stroke and dimensions · Catalog pages 255-256
High-resolution web preview · Catalog pages 255-256

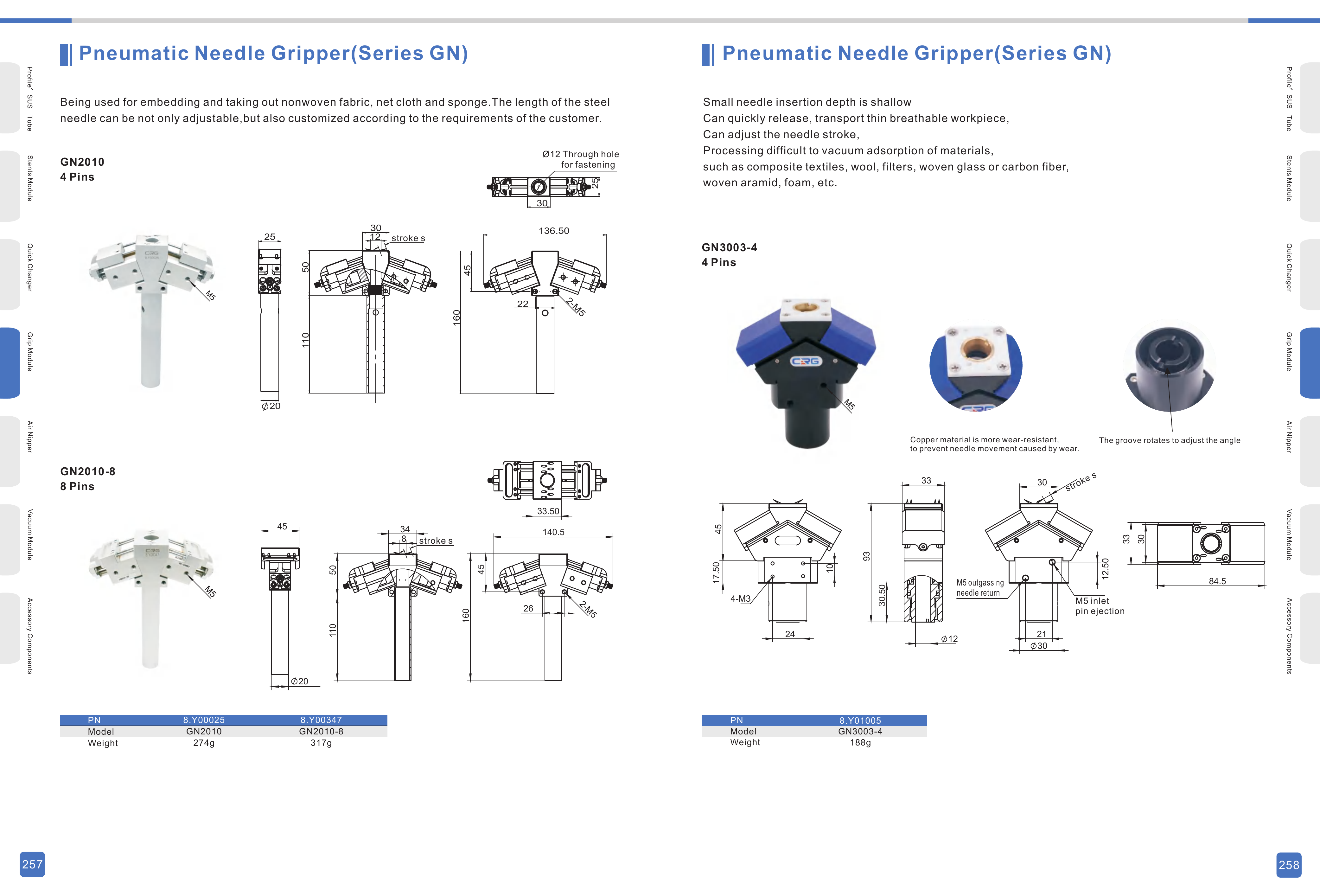

Original Technical Sheet 2 - GN2010 / GN3003
Standard and compact model dimensions and PNs · Catalog pages 257-258
High-resolution web preview · Catalog pages 257-258

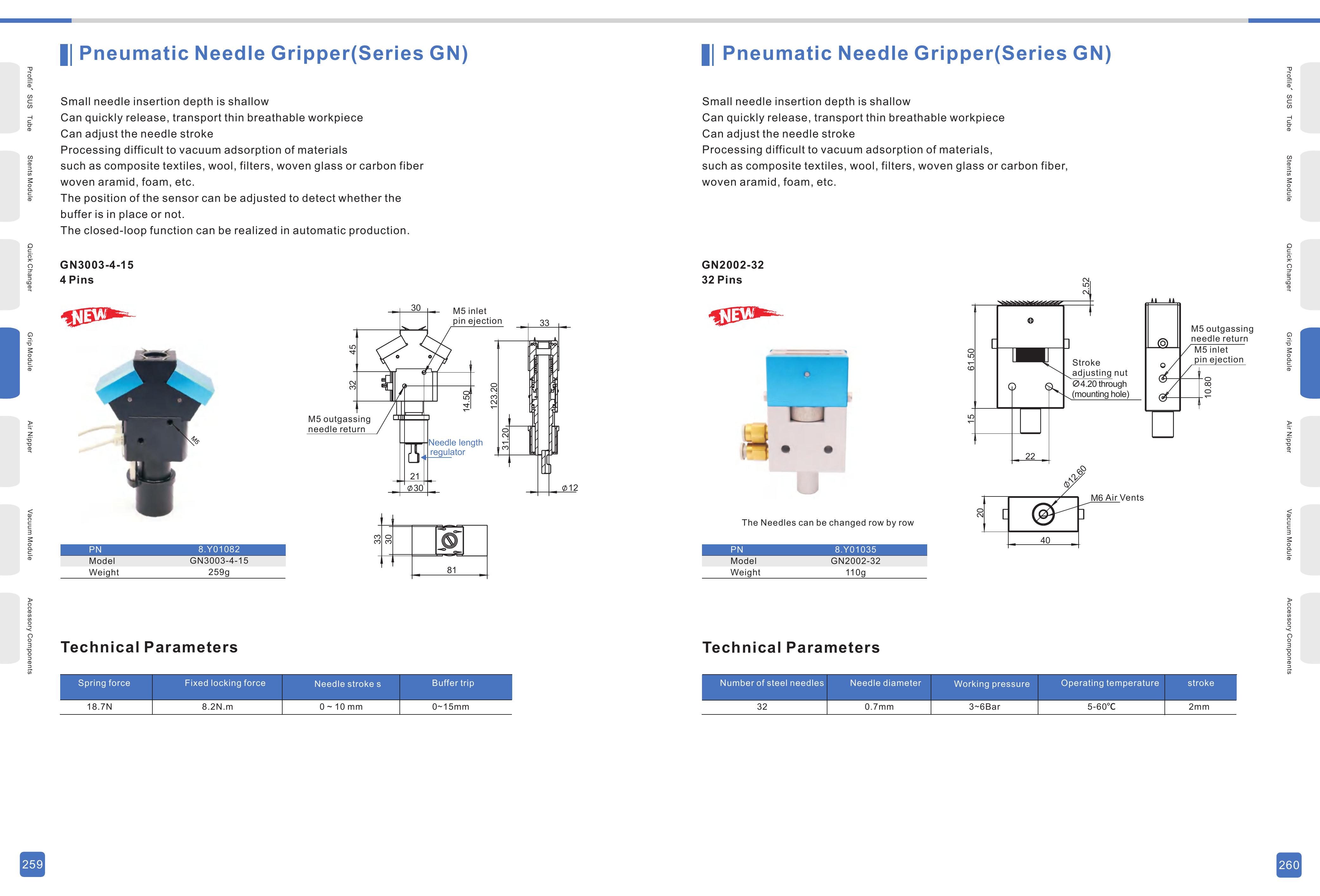

Original Technical Sheet 3 - GN3003 / GN2002
Extended and multi-pin technical references · Catalog pages 259-260
High-resolution web preview · Catalog pages 259-260
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Pressure, stroke and force differ by model group; use the applicable engineering sheet.
- Confirm needle length and workpiece trials before final selection.
