Product features

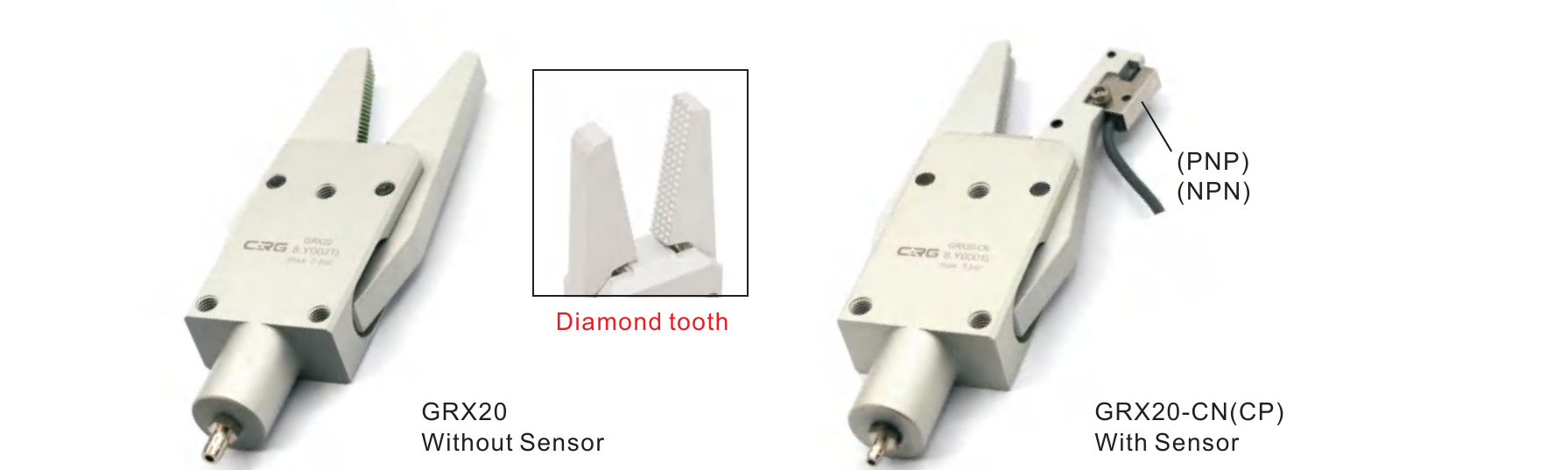

- Diamond-tooth jaw option shown in source
- No-sensor, NPN and PNP versions
- Detailed dimensions for both families
- Catalog gripping-force and weight references
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
GRL12 and GRX20 Sprue Grippers
GRL12A and GRX20 sprue grippers with no-sensor, NPN and PNP configurations plus detailed engineering drawings.
Series
GRL12A / GRX20
Force
45 / 80 N
Sensors
None / NPN / PNP
Source
Catalog 199-200
Model, PN and application context confirmed during inquiry.
Overview
Understand the GRL12 / GRX20 product family
GRL12A and GRX20 sprue grippers with no-sensor, NPN and PNP configurations plus detailed engineering drawings.
Selection approach
Choose GRL12A or GRX20 by size and gripping force, then select no sensor, NPN (-CN) or PNP (-CP).
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GRL12 / GRX20 Models
Choose GRL12A or GRX20 by size and gripping force, then select no sensor, NPN (-CN) or PNP (-CP).
| Model | PN | Sensor | Gripping force | Weight | Status |
|---|---|---|---|---|---|
| GRL12A | 8.Y00108 | None | 45 N | 94 g | Confirmed |
| GRL12A-CN | 8.Y00001 | NPN | 45 N | 100 g | Confirmed |
| GRL12A-CP | 8.Y00002 | PNP | 45 N | 100 g | Confirmed |
| GRX20 | 8.Y00213 | None | 80 N | 180 g | Confirmed |
| GRX20-CN | 8.Y00013 | NPN | 80 N | 192 g | Confirmed |
| GRX20-CP | 8.Y00014 | PNP | 80 N | 192 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 199-200: GRL12A*, GRX20*

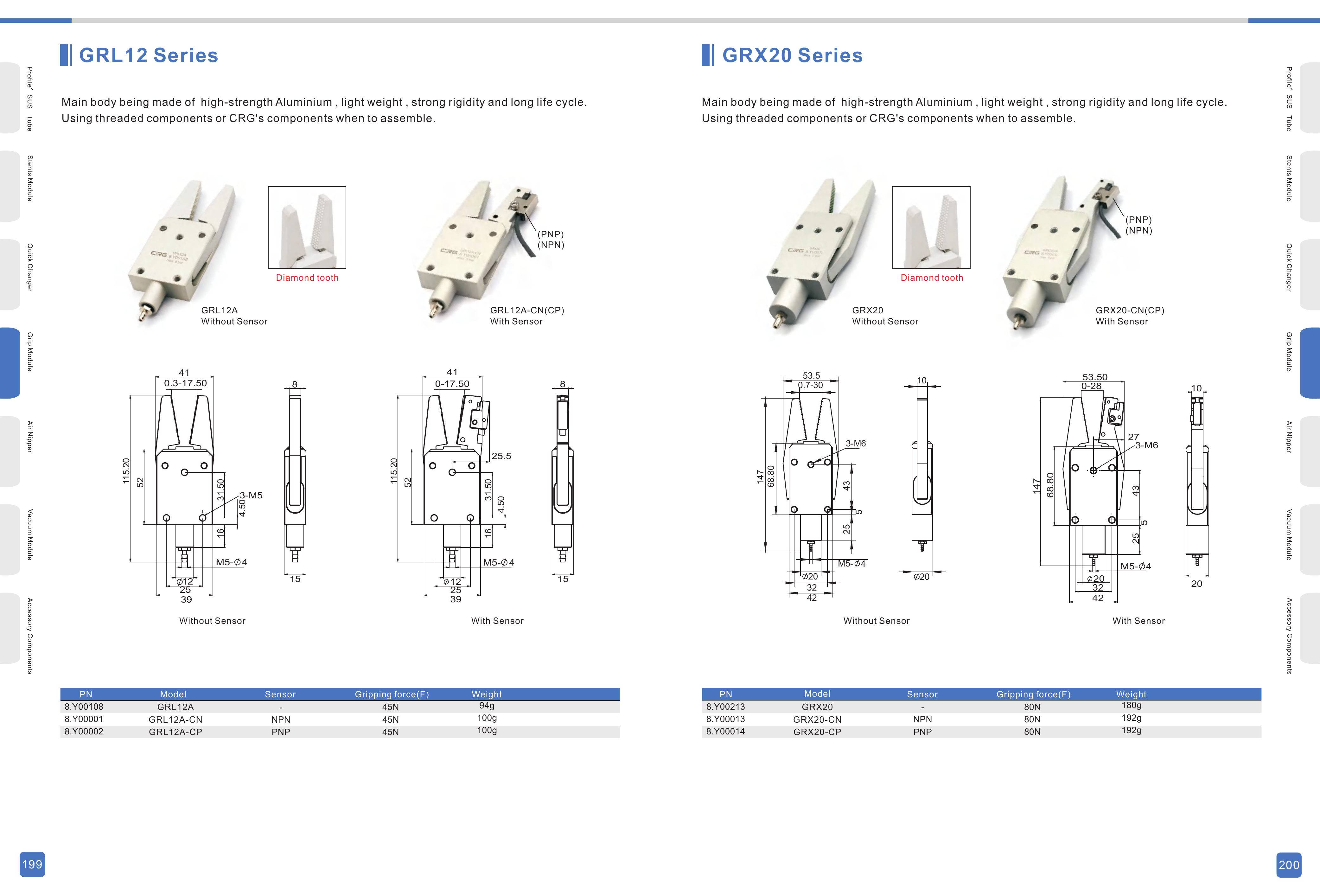

Original Technical Sheet - GRL12A / GRX20
Model selection, sensor variants, dimensions and technical data · Catalog pages 199-200
High-resolution web preview · Catalog pages 199-200
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Detailed drawings on this page complete the source coverage that was outside the earlier compact-family spread.
- Confirm jaw geometry and sensor output in the quotation.
