Product features
- High-strength aluminum body
- Multiple jaw and body-size variants
- Optional PNP or NPN switch versions
- Catalog gripping-force and weight references
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Compact Sprue Grippers
Compact aluminum sprue grippers with multiple body sizes, jaw types and optional PNP or NPN sensor configurations.
Families
GRS / GRM / GRL / GRX
Force range
5-80 N
Sensors
None / NPN / PNP
Source
Catalog 195-198
Model, PN and application context confirmed during inquiry.
Draft review note: Detailed dimensional drawings for GRL12A and GRX20 remain HOLD pending mapped source confirmation.
Overview
Understand the GRS / GRM / GRL / GRX product family
Compact aluminum sprue grippers with multiple body sizes, jaw types and optional PNP or NPN sensor configurations.
Selection approach
Choose the body family and jaw type first, then select no sensor, NPN (-CN) or PNP (-CP).
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GRS / GRM / GRL / GRX Models
Choose the body family and jaw type first, then select no sensor, NPN (-CN) or PNP (-CP).
| Model | PN | Sensor | Gripping force | Weight | Status |
|---|---|---|---|---|---|
| GRS08 | 8.Y00214 | - | 5 N | 18 g | Confirmed |
| GRS08-CN | 8.Y00011 | NPN | 5 N | 40 g | Confirmed |
| GRS08-CP | 8.Y00012 | PNP | 5 N | 40 g | Confirmed |
| GRM12A | 8.Y00103 | - | 28 N | 46 g | Confirmed |
| GRM12A-CN | 8.Y00009 | NPN | 28 N | 60 g | Confirmed |
| GRM12A-CP | 8.Y00010 | PNP | 28 N | 60 g | Confirmed |
| GRM12B | 8.Y00107 | - | 28 N | 46 g | Confirmed |
| GRM12B-CN | 8.Y00104 | NPN | 28 N | 60 g | Confirmed |
| GRM12B-CP | 8.Y00105 | PNP | 28 N | 60 g | Confirmed |
| GRL12A | 8.Y00108 | - | 45 N | 94 g | Confirmed |
| GRL12A-CN | 8.Y00001 | NPN | 45 N | 100 g | Confirmed |
| GRL12A-CP | 8.Y00002 | PNP | 45 N | 100 g | Confirmed |
| GRX20 | 8.Y00213 | - | 80 N | 180 g | Confirmed |
| GRX20-CN | 8.Y00013 | NPN | 80 N | 192 g | Confirmed |
| GRX20-CP | 8.Y00014 | PNP | 80 N | 192 g | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability
Catalog pages 195-196: GRS*, GRM*, GRL*, GRX*
Catalog pages 197-198: GRS08*, GRM12*

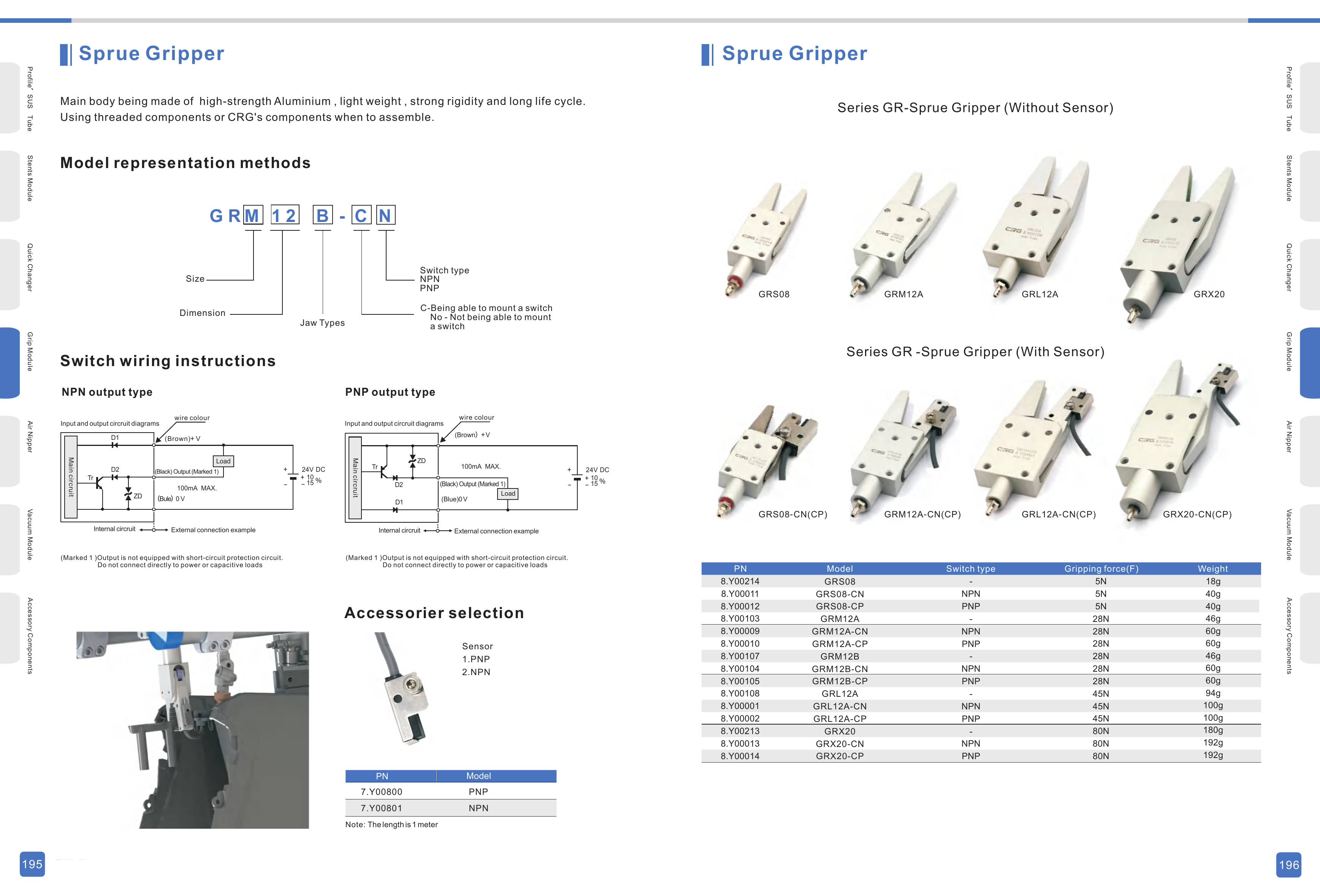

Original Technical Sheet 1 - GR Family Selection
Model code, sensors, family overview, PNs, force and weight · Catalog pages 195-196
High-resolution web preview · Catalog pages 195-196

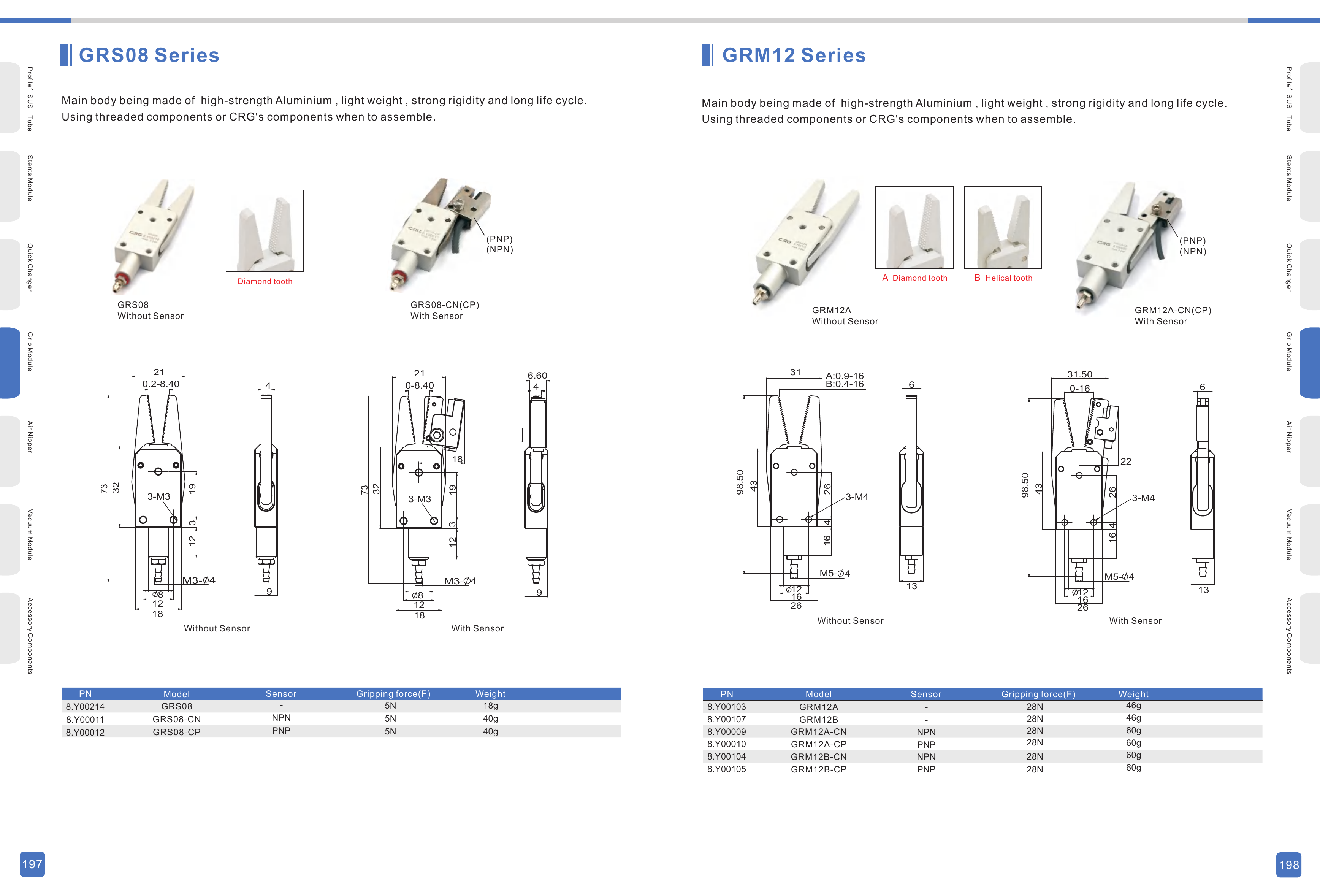

Original Technical Sheet 2 - GRS08 / GRM12 Drawings
Dimensions, jaw options and sensor configurations · Catalog pages 197-198
High-resolution web preview · Catalog pages 197-198
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- Technical Sheet 2 applies only to GRS08 and GRM12 models.
- Detailed GRL12A and GRX20 drawings are not present in the reviewed Batch 1 source range.
