Product features
- Single-acting angular movement
- Built-in magnetic ring
- Three piston-bore sizes
- Catalog torque, air consumption and dimensions
EOAT & Factory Automation ComponentsSelection · Sourcing · RFQ Support
EOAT Grippers
Angular Finger Grippers
Single-acting GFA angular finger grippers with 35-degree stroke and built-in magnetic rings for compact locating and clamping tasks.
Series
GFA
Stroke
35°
Pressure
2.5-8 bar
Source
Catalog 261
Model, PN and application context confirmed during inquiry.
Overview
Understand the GFA product family
Single-acting GFA angular finger grippers with 35-degree stroke and built-in magnetic rings for compact locating and clamping tasks.
Selection approach
Select GFA14, GFA20 or GFA30 by piston bore and required closing torque, then confirm mounting dimensions.
All values shown below are traceable to the reviewed Catalog source. Missing information is not inferred.
Product Selection Tool
Compare GFA Models
Select GFA14, GFA20 or GFA30 by piston bore and required closing torque, then confirm mounting dimensions.
| Model | PN | Piston bore | Closing torque | Weight | Stroke | Status |
|---|---|---|---|---|---|---|
| GFA14-35 | 8.Y00117 | Ø10 mm | 26 Ncm | 25 g | 35° | Confirmed |
| GFA20-35 | 8.Y00118 | Ø16 mm | 100 Ncm | 65 g | 35° | Confirmed |
| GFA30-35 | 8.Y00119 | Ø25 mm | 430 Ncm | 206 g | 35° | Confirmed |
Continue to Engineering Reference to verify drawings, dimensions and technical notes before quotation.
Engineering Reference
Technical Data & Dimensions
Use these reviewed source sheets after selecting a candidate model. Applicability remains controlled by the product data record.
Dimensions & Drawings
Model / PN Reference
Technical Notes
Applicability

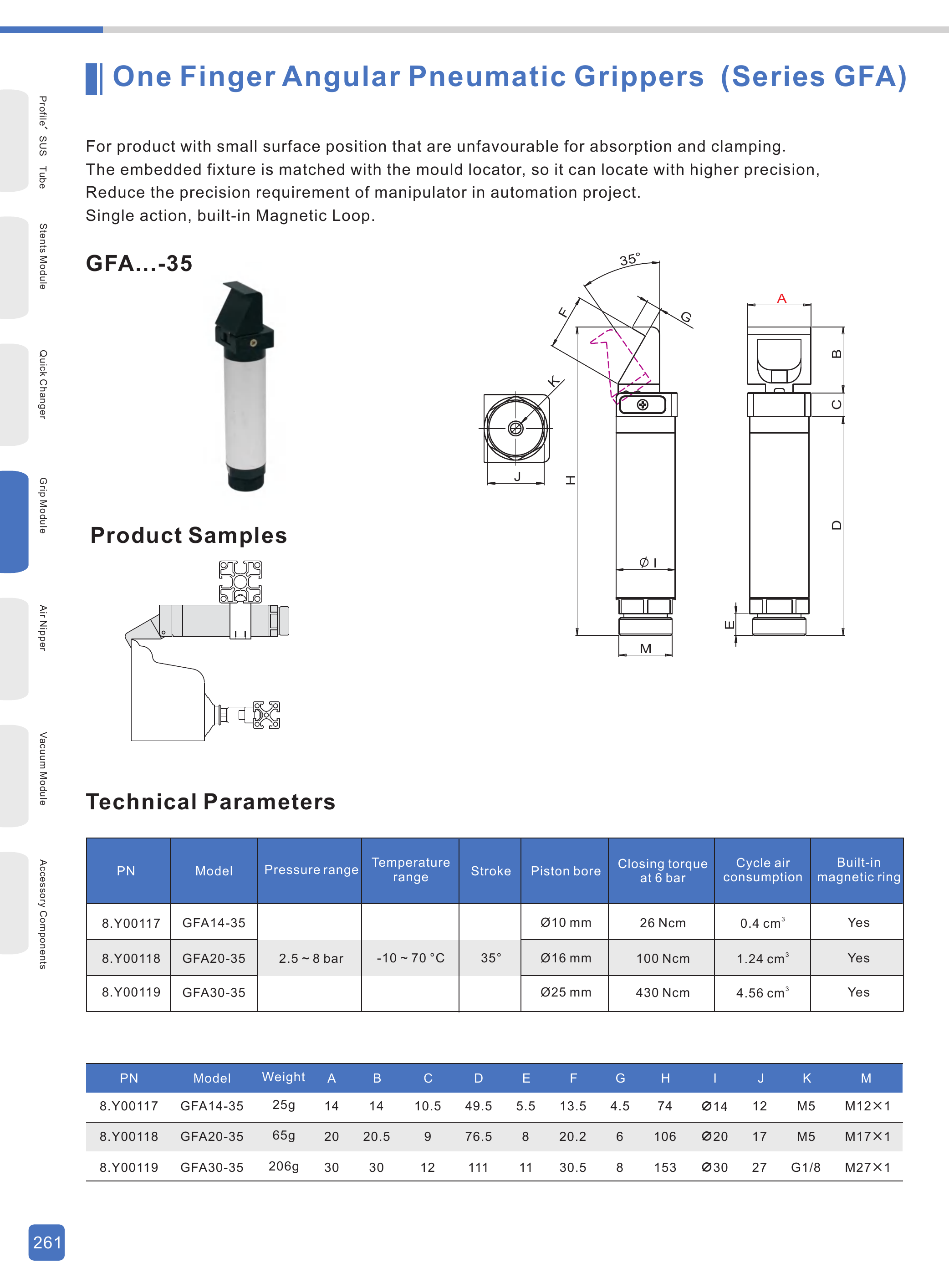

Catalog page 261: GFA*
Original Technical Sheet - GFA Angular Grippers
Models, PNs, torque, dimensions and technical parameters · Catalog page 261
High-resolution web preview · Catalog page 261
Open the reviewed source PDF for the highest-fidelity engineering reference.
Technical confirmation notes
- The web sheet isolates GFA from the adjacent GFR content on the source spread.
- Confirm fixture geometry and closing torque for the application.
